Product Details:
|
| Condition: | Brand New | Dimension: | L1250 × W680 × H1650 ± 20mm |
|---|---|---|---|
| Table Size: | 320*1200mm | Max PCB Size: | 250*1250mm |
| Frame Size: | 370×470mm-420×1400mm | Voltage: | Single Phase 220V 50/60HZ / 100W |
| PCB Thickness: | 0.2 ~ 2.0mm | Weight: | 380kg |
| High Light: | 1.2m LED Stencil Printing Machine,SMT Stencil Printing Machine,1.2m Screen Print Stencil Maker |
||
1.2m Semi-auto Solder Paste Printer SMT Stencil Printing Machine LED Production Line
1.2M Semi-auto solder paster printer:
| Description | CHMT 1.2m |
| Dimension (L×W×H) | 1250×680×1650(mm) |
| Worktable size | 320×1300(mm) |
| PCB Size | 250×1250(mm) |
| Apply the template size | 550×1480(mm) |
| Priting speed | 0～8000(mm)/Min |
| PCB thickness | 0～100(mm) |
| PCB slight adjust range | Front/ Side +10mm |
| Voltage | 1phase 220V 50/60HZ |
| repeated accuracy | ±0.01mm |
| PCB position method | Outside/ Reference hole |
| Weight | 380Kg |
SPECIFICATION:
♦ Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
♦ Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
♦ Block can be adjusted before and after the blade, to choose the right printing position.
♦ Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
♦ School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
♦ Can be set to one-way and two-way, a variety of printing methods.
♦ With the automatic counting function to facilitate the production of output statistics.
♦ Adjustable blade angle, steel blade, rubber scrapers are suitable.
♦ Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
♦ Printing speed display can be adjusted.

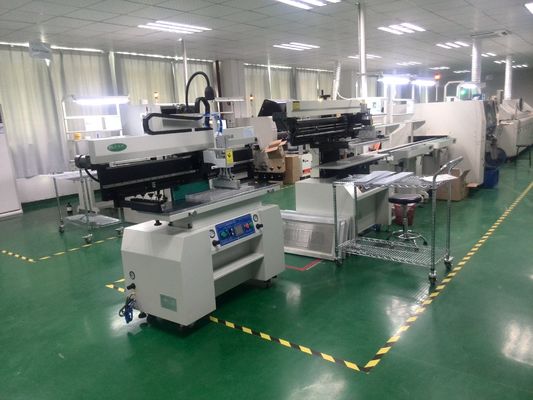

Real photos:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
