Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads

Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads
Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads

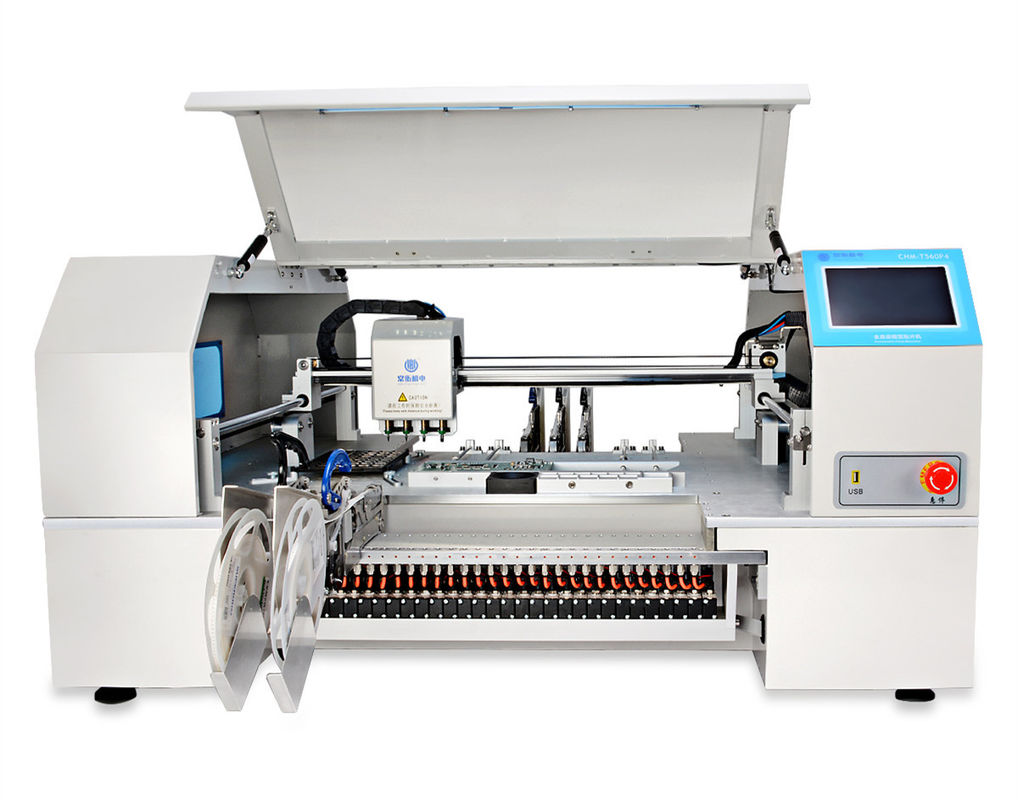

Large Image :  Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT560P4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6200
Packaging Details: Carton box
Delivery Time: 1-3 working days

Advanced CHMT560P4 Benchtop Pick And Place Machine 60 Feeders 4 Heads

Description
XYZ Axis Travel: 600mm(X)*630mm(Y)*20mm(H) PCB Max Size: 400mm(L)×270mm(W)
Support Components: 0402~5050,SOP,QFN,BGA Etc. Speed: Without Vision:8000cph; With Vision:5500cph
Vision Detection: Double Camera (up & Down) Support Max Size Of IC:22*22mm Operation System: Embedded Linux System
High Light:

CHMT560P4 Surface Mount Pick And Place Machine

,

60 Feeders Benchtop Pick And Place Machine

,

4 Heads Bench top Pick And Place Machine

60 feeders 4 heads Advanced CHMT560P4 Desktop SMT SMD pick and place Machine, pcb smt production



Please find Video in Youtube link:



CHMT560P4 working video:
www.youtube.com/watch?v=kXWaDEFIRSE

CHMT560P4 pick and place machine placing different kinds of IC:
www.youtube.com/watch?v=0NPlVMwzVCU&t=81s



Description:


This CHMT560P4 is an updated model from CHMT530P4 which has 60 feeders with 4 heads Juki Nozzle placement, more material supported with high speed mounting, working with Yamaha pneumatic feeders 8mm 12mm 16mm 24mm, and also Yamaha vibration feeder accept by customer in market, very table and convenient! This machine for small smt production is your good helper!

The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. CHMT560P4 using 502---508 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.



Charmhigh CHM-T560P4 Technical Parameters



Parameters
Model CHMT560P4
XYZ Axis travel 600mm(X)×630mm(Y)×20mm(Z)
PCB max size 400mm(L)×270mm(W)
Support components 0201-0402-5050, SOP, QFN,BGA etc.
Mounting speed
  • Without vision:8000cph
  • With Vision:5500cph
Precision ±0.025mm
Placement head 4 heads
Feeding system

Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)

  • 14pcs general IC stack
  • Support IC tray
Vision detection Double camera (up & down) support max size of IC:22*22mm
Motor control
  • XY Axis stepper motor with encoder closed-loop control
  • Flexible S deceleration
  • Z Axis reset detection
Components leakage detection Vacuum and visual detection
Main board High-reliability industry motherboard
Touch Screen 7 inches industry screen, externel mouse control supported
Operation system Embedded Linux system
External air source 0.5MPa
Power supply AC220V 50Hz / AC110V 60Hz
Demension 1180mm(L)×870mm(W)×600mm(H)
Compantible software Altium designer, Protell99SE, PADS, Kicad, Eagle, Cadint, Cadence Orcad, Cadence Allegro, PROTEUS…etc
Net weight 150Kg


Competitive Advantage:


1. Convenient software, Embedded Linux System of the machine, industry system, more professional and stable, independent operation, no need external computer, operation more easy and convenient.
2. Industry full touch screen operation, no need external screen, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two cameras CCD system correct the position of each components very accurate,especially for IC.
4. It has flexible PCB clamping fixture, and it has user-defined IC tray, convenient and quick.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable.
7. Pull pin automatically return to avoid nozzles broken, pull pin not be stuck, big progress.
8. Z axis detection, placement head can auto back to origin to prevent nozzles broke.
9. Closed-loop contro, X,Y Axis with encoder, never loose steps.
7. PCB by calibrate two components position ---- first and last componet, amend the offset of PCB.
8. Calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
9. Comes iwth vacuum testing, with automatic feeding; if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
10. If lack material it will automatic detection, machine will alarm and stop; after supply material, then continue working, no need to re-start.
11. Support any number of PCB batch.
12. If no PCB file, or don’t you don't have work file, you can creat a new file to program in machine directly.

13. Support single step.


Why choose Charmhigh?

1.Professional desgin and room saved.
2.User friendly operation, no need professional SMT engineer, entry-level device
3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
4.High accuracy and reliability,make up the defection of manual work
5.Cost efficient, reduce expense to own a professional automatic SMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment.

8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.

9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.

10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.

Standard Accessories for CHMT560P4:

1) Pick and Place MachineCHMT560P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1
