830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine

830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine
830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine 830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine

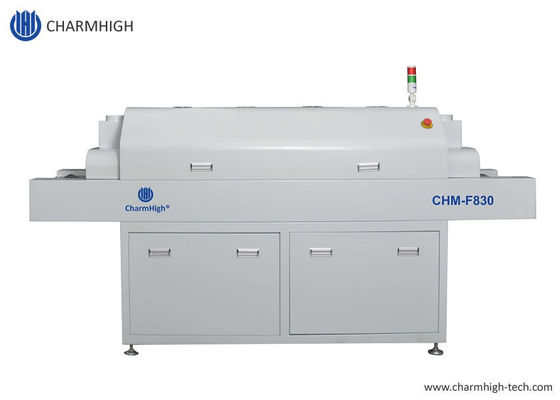

Large Image :  830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: 830
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1980
Packaging Details: wooden box
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100 Per month

830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine

Description
Dimensions: L2500x W650x H1400 Heating Zone Quantity: Upper4/down4
Heating Area: 1400*300mm Heating Up Time: Around 20 Mins
Net Weight: 220kg Delivery Way: Mesh Transfer
High Light:

8 Zone SMT Reflow Oven

,

1400*300mm Hot Air Soldering Machine

,

1400*300mm SMT Reflow Oven

Vertical SMT Reflow Oven 8 Temperature Zones 1400*300mm Hot air Soldering Machine Lead-free



1.Competitive price for quality
2. More than 10 years manufacturing experience
3.One of the Leader of Smt machine manufacurers in China



Model No. 830
Number of Heating Zones Up 4 + Bottom 4
Length of Heating Zones 1400mm
Heating Pattern

Up: Hot air; Bottom: Hot air

(Forced convection of hot air, Taiwan SAYA motor)

Number of Cooling Zones 2 Plasma DC Fan
Max. Width Of PCB 300mm (stainless steel mesh belt)
Conveyor Direction L→R
Conveyor Height 880±20mm
Transport Mode Mesh Belt
Conveyor Speed Range 0-2200mm/min
Power Supply 5 Wire, 3 Phase, 380V 50/60Hz
Start Power 10KW
Power Consumption Approx 2.5KW
Warming Time Approx 15-20 mins
Temp. Setting Range Room Temp.- 380℃
Temperature Control Method Instrument-controlled
Temperature Difference Between Adjacent Zone 70 ℃, can correspond to the highest standards of lead-free process.
Temperature Control Precision ±2℃
Temperature Deviation on PCB ±2℃
Abnormal Alarm Temperature abnormal (too high or too low after the constant temperature keeping)
Open Way Manual
Dimension(L*W*H)mm 2500*650*1400MM
Weight Approx220Kg



 830 reflow oven SPECIFICATION:
• The heating system is unique, advanced and long-life.
• High efficiency and energy-save nickel cauterize heating pipe is used in heating system, strong hot air cycle structure , making PCB and components heating equally, high efficiency and rapid heating speed.
• The intelligent micro-computer precision controller, through intelligent operation of PID, control heating automatically , temperature controlling function can detect the changing of temperature, and then make inner temperature stable by controlling. Modular design , easy to repair and assembly.
• Import high temperature and high speed motor are used, stable operation,small tremble and low noise.The efficiency be improved greatly, extending the using time. The heating system use import components to make sure high stability and reliability of all system.
• Reliable and stable transmission system, stable operation driver, and the speed range is 0-2000mm/min.
• Stable operation special stainless steel net chain is durable and wearable. So it didn’t need to be change for a long time that can save cost.
• Stable and reliable electronic controller system.

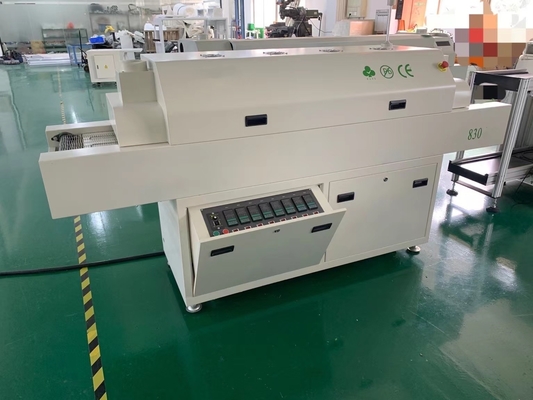

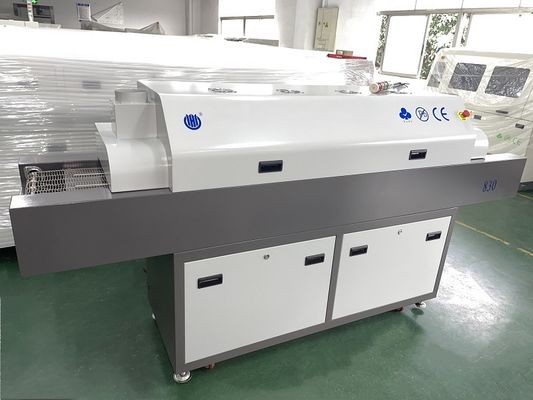

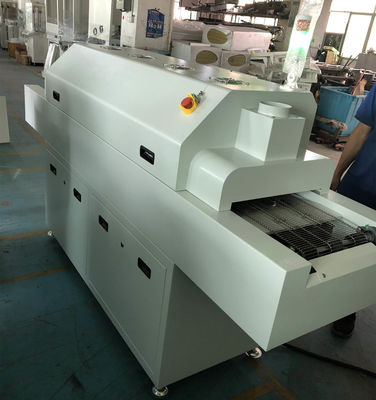

100% Real Pictures as follows:

830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine 0

830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine 1



830 Vertical SMT Reflow Oven 8 Temp Zones 1400*300mm Hot Air Soldering Machine 2


Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
