High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine

China High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine supplier
High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine supplier High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine supplier High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine supplier

Large Image :  High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine

Product Details:

Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: Stencil Printer 3040

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $280
Packaging Details: wooden box
Delivery Time: 1-2 days
Payment Terms: T/T; Western Union
Supply Ability: 300 per month
Contact Now
Detailed Product Description
Print Size: 250*400mm Table Size: 300*400mm

High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine


Description:

This machine is mainly for single-sided printed circuit board solder paste and glue or design requirements, work platform made of high quality aluminum honeycomb positioning hole machining, with thick steel plate welded base, strong solid, durable.



Adavantages:

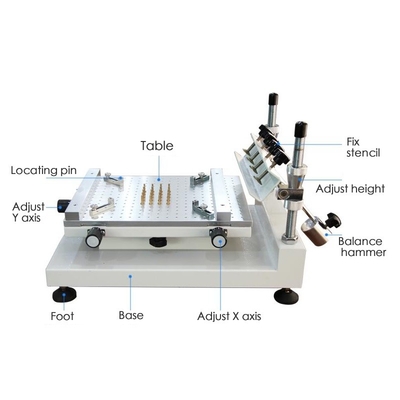

1. PCB positioning using the positioning pins, fixing lever and fixing plate operation, convenient location, and ensure repeat accuracy.

2. Board correction by stencil move, combined with X, Y axis trimming correction, which is convenient.

3. Height can be adjusted up and down screw, easy to control the PCB thickness and printing solder paste.

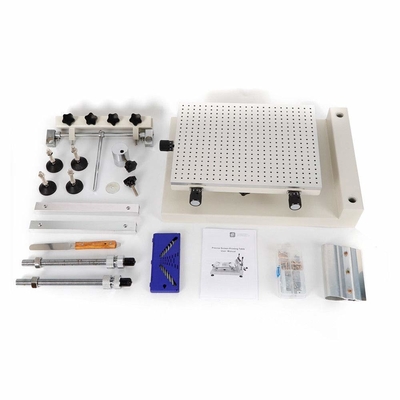

4. Accessories: fixed link 30pcs, positioning holder 4pcs, the fixing plate 2, and a set of tools.

5. Optional special table (3040), middle part can be placed a print board, great space saving, easy to operate.



Work table size 300*400mm
Print size 250*400mm
Max net frame size 370*470mm
Printer way manual
Thickness of the substrates 0-80mm
The workbench adjust volume 10mm, Horizontal Angle adjustment
Printing platform height 220mm
repeated accuracy ±0.01mm
locate mode Benchmark or hole shape

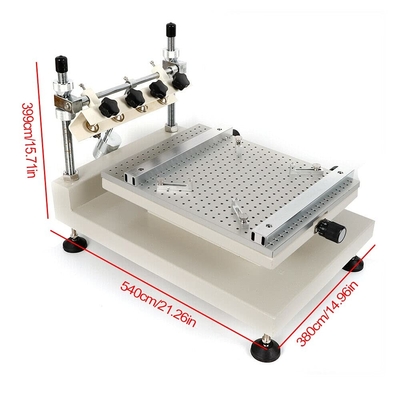

Dimension 540*370*350 mm
Packing size 630*450*480mm
Weight NW.25Kg    GW.35Kg



High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine



High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine



High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine

High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine

High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine



SMT Production Line:



High Precision Stencil Printer ( 3040 ) Silk printer, Work with SMT Pick and Place Machine


Warranty:


The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before sent out.
