Detailed Product Description

PCB assembly Line , Batch Production SMT Pick And Place Equipment, Surface Mount Technology​




Hottest Combination Recommend to all of you



Machine are all completed, ready for work, each machine will be 100% tested well, QC passed.
Please purchase it with confidence.
Quality guarantee, quality is better than other brand machines.

This 3 in 1 combination small SMT production line very good for your company's small production. We recommend it. Charmhigh Surface Mount Technology, quality higher. Welcome send e-mail to us!

Package list:

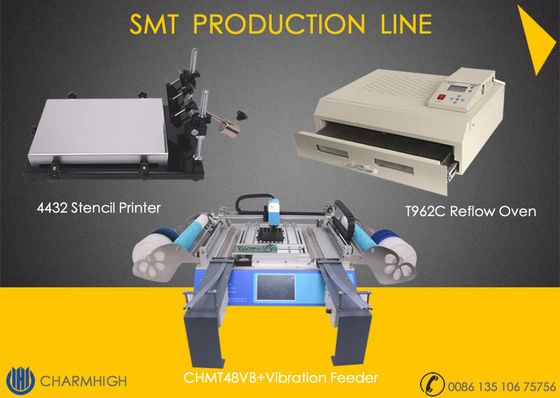

1 x Solder printer 44*32cm
1 x Pick and place machine CHMT48VB_vibration feeder
1 x Reflow oven 400*600mm 2500w T962C


(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos?disable_polymer=1




Stencil Printer Technical Parameters
Type:Manual
G.W:13kg
Maximum print Area:320*440mm
Packing size:L 71cm*W 52cm*H 14cm



Specifications of CHMT48VB:


ModelCHM-T48VB
PCB area10mm*10mm - 355mm*355mm
X Y axis Travel420*460mm
Z axis moving range15mm
Placement heads2pcs
Feeders

Left 29pcs + right 29pcs
8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs,
Front IC stack=14pcs, user-defined IC tray

Vision systemDual cameras (up & down cameras)
DriveClosed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detectionYes, prevent nozzles breaking
Pull pin self-returnYes
Leakage of material detection methodVacuum detection, vision detection
Touch screen7”industry touch screen
Main boardIndependent research industry main board
SystemEmbedded Linux system
Mounting speed5000cph (vision off); 3000cph (vision on)
Mounting precision±0.025mm
Components0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM)
Machine dimensionL 960mm* W 705mm* H 335mm
Vacuum pump-92KPA (2pcs,build-in, mute type)
External air sourceNo need (machine build-in mute vacuum pump 2pcs)
External PCNo
Voltage220V (110V), 50Hz
Net weight70kg
Gross weight89kg / 116*81*52cm ---- wooden packing


T962C 2500W Reflow oven:

Model: T962C
Effective Soldering max area: 400 x 600mm
Rated power: 2500W
Temperature Range: 0°C-280°C
Process cycle: 1~8 min
Voltage: 110V~240V
Frequency: 50Hz~60Hz
Product size: 684x504x225mm
Net weight: 25kg
Packing weight: 27kg

Pictures as follows:

PCB assembly Line , Batch Production SMT Pick And Place Equipment, Surface Mount Technology​

PCB assembly Line , Batch Production SMT Pick And Place Equipment, Surface Mount Technology​

PCB assembly Line , Batch Production SMT Pick And Place Equipment, Surface Mount Technology​

PCB assembly Line , Batch Production SMT Pick And Place Equipment, Surface Mount Technology​

PCB assembly Line , Batch Production SMT Pick And Place Equipment, Surface Mount Technology​




Hottest SMT line combination with very high quality and Good Feedback.



Recommend to all of you!



Q1: What is the lead time of your products? (How long do you need to prepare my goods?)

A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).

Q2: How will you deliver my goods to me?

A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their
goods rapidly. For bigger quantity, ship by air or by sea.

Q3: How long do I need to wait before my goods arrive?

A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.

Q4: What is your product quality?

A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale
service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.
Each machine 100% test well before ship out.
