Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT48VB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5200 including shipping
Packaging Details: Standard export wooden box
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 Per month

CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine

Description
Feeder: Letf: 29pcs; Right:29pcs (total 58pcs) Placement Head: 2pcs
Nozzles: 4 Nozzle (Juki) Speed: 3000cph With Vision; Without Vision 5000cph
Accuracy: 0.025mm System: Embedded Linux System
Type: All-in-one Machine, No Need External Monitor Or PC Max Component: 5mm
High Light:

CHMT48VB Small SMT Machine

,

58pcs Feeders All In One Machine

,

Charmhigh Small SMT Machine

CHMT48VB 58pcs Feeders (Double stack) Charmhigh Desktop Pick and Place Machine

Advanced Pick and Place Machine​ 110v 220V English Version CE Passed

Very suitable for small batch production & prototyping!



Description:

This CHMT48VB is an update version of CHMT48VA, which included dual side feeders with total 58pcs (left 29pcs + right 29pcs). It is all-in-one machine, no need purchase any other parts, machine ready for work after you received.

The operation system is the same as CHMT48VA and it can install more different kinds of materials, using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP144,Diode,Transistor,BGA...etc, which can meet more customers' demand.
Suitable for for prototype builders, hobbyists, developers, and development groups and small factories batches production.



CHMT48VB Working video from customer:

www.youtube.com/watch?v=qu-O6umaNHE

www.youtube.com/watch?v=xF7N4crTOtQ (Sweden)

www.youtube.com/watch?v=wYl5Az9xgec (China)

CHMT48VB placing IC:
www.youtube.com/watch?v=I-g8x98jmz0



Specifications of Charmhigh CHMT48VB:

Model CHM-T48VB
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 510*460mm
Z axis moving range 15mm (Highest component 5mm)
Placement heads 2pcs, comes with 4 nozzles
Feeders

Tape reel feeder 58pcs (left 29pcs + right 29pcs)
(8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs,)
Front bulk IC feeder=14pcs, Customs IC tray 20pcs

Tube feeder (vibration feeder, optional)

Vision system Two cameras (up & down cameras) Vision max range 22*22mm
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, it prevent nozzles breaking
Pull pin self-return Yes, it prevent needle breaking
Leakage of material detection method Vacuum detection, vision detection
Touch screen 7 inch industry touch screen
Main board Independent research industry main board
System Embedded Linux system
Mounting speed 4000cph (vision off); 3000cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050, SOP, QFN etc.
Machine dimension L 960mm* W 705mm* H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC No need external PC (it has build-in computer)
Voltage 220VAC (110VAC), 50Hz/60Hz
Net weight 68kg
Gross weight 85kg / 116*80*52cm



Competitive Advantage:

1. Convenient software, Embedded Linux System of the machine, stable industry main board, independent operation, no need external computer, operation easier and more convenient, learn fast.
2. In-build touch screen, no need external monitor, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two vision cameras, correct the position of each components, you can view the vision image from screen for every components.(max component size 22*22mm)
4. It has flexible PCB clamping fixture, suitable for different size of PCB.
5. It supported custom IC tray, IC tray can be fixed on machine table.
6. Two mounting heads with 2pcs Juki Nozzles, Juki nozzle inside magnet, so it can be removed by finger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
7. All-in-one machine, 29pcs feeders included in machine, no need to buy other parts, machine is ready to work.
8. Z axis detection, machine's pull needle automatically return to origin to avoid nozzles broken.
9. Max height component support 5mm.
10. Closed-loop control, X,Y Axis with encoder, not out of step.
11. PCB calibrated by two components position, then rest components will be calibrated automatically.
12. With vacuum detection, with automatic feeding, if one component suck crooked, it will automatically throw it to deposit area, then pick a new one to mount again.
13. With vision detection, camera will auto correction component angle and place on PCB board right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop, after supply material, then continue working, no need to start over again.
14. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
15. Support panelized boards.
16. If you don't have PCB file, you can create a new work file to program in machine directly.
17. Support single step.
18. Support cut tapes/ bulk material/ tube material.

Why choose Charmhigh?

1.Professional design and room saved.
2.User friendly operation, no need professional SMT engineer, entry-level device
3.One machine - Integrated operation, no need extra pump or PC or any supporting facility.
4.Cost efficient, reduce expense to own a professional full automatic SMT production line.
5. It is very convenient to change machine replacement, easy to fix by self.
6.International express with door to door service, 6-8 working days delivery.
7.Especially for laboratory research and development, to protect your own design and patent.
8.One machine equal to 5 soldering staff, much higher efficient than manual work, easy manage and cost-saved. Good for small batch production.
9.Charmhigh Is factory supply, all of our machine parts are researched and manufacturing by ourselves. After-service spare parts never stop.
10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since, first p&p released in 2011. All the software researched by ourselves, provided good after-sell service.



Standard Accessories for CHMT48VB:

1) Pick and Place Machine CHMT48VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Pull needle 2
6) Solenoid for pull pin1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1

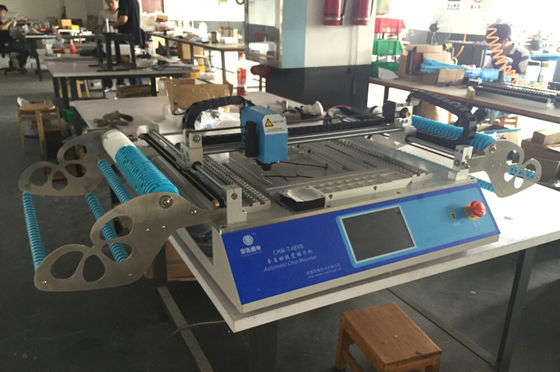

CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 0

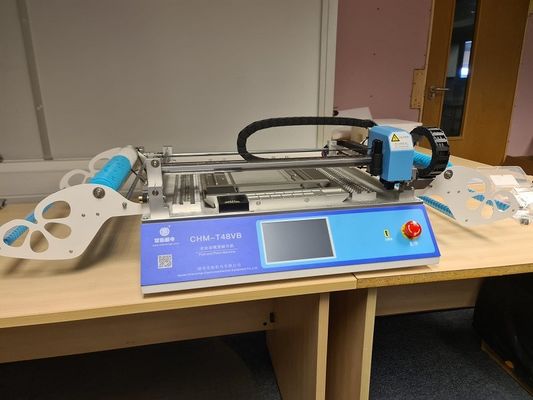

CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 1

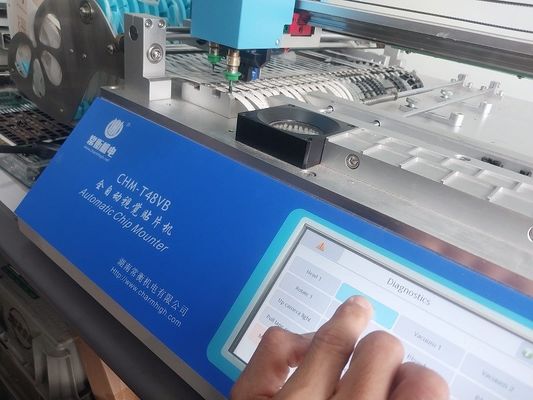

Top and Bottom camera, make sure each component place very accurate:
CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 2

X Y axis motor with encoder, closed-loop control, make sure not lose steps:
 CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 3


Custom IC Tray:
CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 4

Touch screen, industry embedded Linux system control:
CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 5


Juki Nozzles, very easy opearation, magnet inside, no need to use wrench to pull down:
CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 6



Safe packing:
CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 7



SAMPLES:

CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 8

CHMT48VB 58pcs Feeders All In One Machine Desktop Pick And Place Machine Small SMT Machine 9



Kidnly note:

The pick and place machine is complete set with all accessories included in the package, QC passed.

It is all-in-one machine, ready to use!

You can use it when you receive it. Good after-sale tech support, please purchase it with confidence.

Enjoy with your pick and place machine!



Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
