|Max PCB Size:||350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional)||Feeder:||50pcs Yamaha Feeders (pneumatic & Electric Feeder)|
|Operation System:||Windows (comes With PC And Keyboard Mouse)||Fiducial Calibration:||Auto Calibrate Mark Point|
|Component Height:||12mm||Mounting Speed:||11500CPH(optimal); IPC9850:8850cph|
|Net Weight:||190kg||Nozzle:||Auto Nozzle Changer With 13pcs Nozzle Library|
|Dimension:||980mm(L)x1050mm(W)x880mm(H)||Mounting Accuracy:||(XY) ±0.06mm CPK≥1.0|

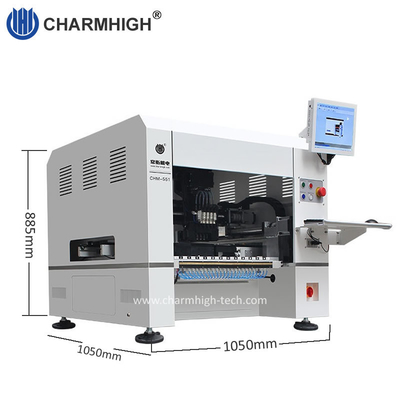

Updated Model Genius small CHM-551 Desktop SMD pick and place machine. High precision ball screw Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot
CHM-551 SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly.
CHM-551 is a four-head high-speed high-precision general-purpose automatic SMT pick and place machine with high-end configuration mechanism and excellent performance, and its price is affordable. It is used for R&D proofing and SMT small and medium-sized production, and can quickly recover investment cost.
Working video on Youtube:
Packing chm-551 and ready to ship to South Africa:
1. Support CPK test
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic conveying
5. Optimal speed:11500CPH IPC9850:8850CPH
For more machine features, please consult our account manager
|Dimensions||980mm(L) x1050mm(W) x 880mm(H)|
|Power Supply||AC220V (50Hz,single phase) 1.5kw|
|Air Supply||0.5MPa ~0.7MPa|
|Vacuum Generation||vacuum pump|
|Mounting Head Quantity||4 heads|
|Mounting Speed||11500CPH (optimal)
|Mounting Accuracy||(XY)±0.06mm; CPK≥1.0|
|Component Type||0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
|PCB Size||350mm(L)x270mm(W) (Standard);
|Nozzle Change||Automatic nozzle change (13-hole nozzle library)|
|Control System||Built-in industrial computer (Windows)
equipped with monitor, keyboard, and mouse
X&Y axis driven by servo motors;
adopting flexible S-curve acceleration and deceleration
|Transmission System||Ball screw + linear guide|
|Feeding System||50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder)
|Vision System||Snapshot camerax4 (component size applicable: 14mm×14mm);
IC camerax1 (component size applicable: 25mm×25mm);
A base can be added with CHM-551, you can choose a deskotp one or a vertical one:
1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!
2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.
3. With PCB auto conveyor, built a small SMT production line, free your hands!
4. High configuration with smart software, longer lifespan, Charmhigh provide stronger mechanical part.
Working with universal standard Yamaha Feeders(purcahse separately):
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder
3. Vibration feeder
Charmhigh SMT, factory supply, prompt delivery.
Charmhigh, top Chiense brand.
|Pick and place machine||1||Tweezer||1|
|Nozzles||8||Inner Hexagon Spanner||1|
|Tool box||1||Lubricating oil||1|
|User Manual||1||Quick connector||1|
|Test Report||1||Mouse Pad||1|
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
