Cute but strong! Cast iron integrated molding, ultra-strong X-beam structure.

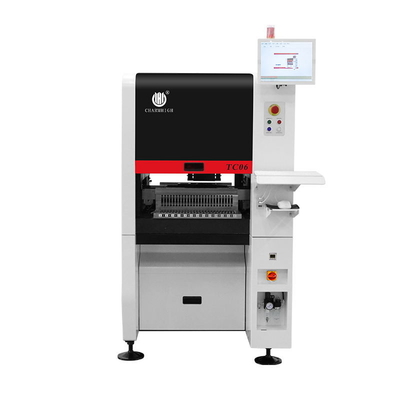

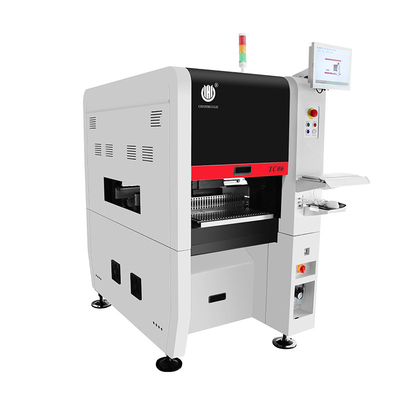

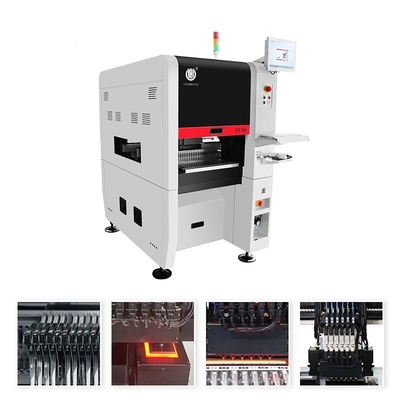

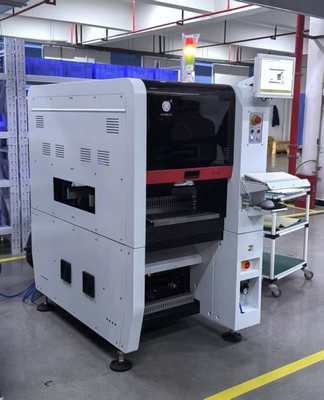

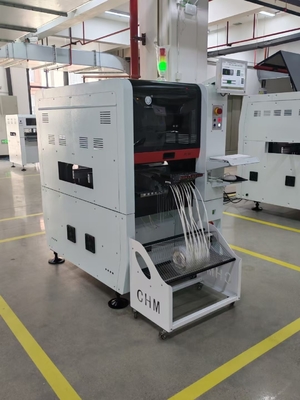

Narrow Design High Precision TC06 Module SMT Pick and Place Machine 6 Heads 50 feeders, Support 01005 CPK>1.0
89cm width, suitable for most office doors and elevators!
PCB making machine, full-auto PCB assembly line, Chiense top brand Charmhigh
1. Model number: TC06
2. Brand: Charmhigh
3. Main configuration: Full automatic in-line + PCB auto delivery + 6 Heads 50 feeders + (xy)±0.04mm CPK>1.0 + X&Y axis driven by Panasonic servo motor + automatic nozzle changer + 9 cameras + Ground screw & Linear Guides + Thermal Compensation + Optimal speed: 27800CPH
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area: 350mm(L) * 300mm(W)
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005/ 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/ BGA/ LED... to max 36*36mm IC
8. Dimension: 890 (L) * 1450 (W) * 1500 (H) mm, AC220V (50hz, single phase); Net weight: 910kg
9. Lead time: 5-7 working days
10. Delivery: by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Charmhigh YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos
Charmhigh TC06 parameters:
| Dimensions |
890mm(L)x1450mm(W)x1500mm(H)
|
| Weight |
900kg |
| Power Supply |
AC220V (50Hz, single phase), 3kW |
| Air Supply |
0.5MPa ~0.7MPa |
| Vacuum Generation |
Built-in vacuum pump |
| Mounting Head Quantity |
6 |
| Mounting Speed |
27800cph (optimal) |
| Mounting Accuracy |
±0.04mm CPK≥1.0 |
| Component Height |
≤12mm |
| Component Type |
Resistor capacitor exclusion, cylindrical diode, aluminum
capacitor, SOT, SOP, QFP, QFN, BGA, etc. |
| PCB Thickness |
0.6mm~3.5mm |
| PCB Size |
350mm(L)x300mm(W) |
| PCB Conveying |
3-section-rail automatic conveying, PCB support device |
| Nozzle Change |
Automatic nozzle change (19-hole nozzle library) |
| Control System |
Built-in industrial computer (Windows system)
equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by Panasonic servo motors
|
| Transmission System |
Grounding screws + Linear guides |
| Feeding System |
50 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System |
Fly camera x 6 (component size applicable: 16mmx16mm);
IC camera x 1 (component size applicable: 36mmx36mm);
Mark camera x 2 |
Part list:
| Item |
Quantity |
Item |
Quantity |
| TC06 Pick and place machine |
1 |
Lubricating oil |
1 |
| Nozzles |
8 |
Filter |
4 |
| Tool box |
1 |
Quick connector |
1 |
| Warranty Card |
1 |
Mouse Pad |
2 |
| User Manual |
1 |
Power Cable |
2 |
| Test Report |
1 |
Keyboard |
1 |
| Brush |
1 |
Mouse Pad |
1 |
| Tweezer |
1 |
LCD |
1 |
Charmhigh TC06, 6-head 50-feeder:
This pick and place machine is compact and adorable, yet incredibly powerful.
TC06 advantages:
-Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.
-ANC: Automatic nozzle change, nozzles can be automatically allocated according to components, making SMT production more intelligent and more efficient.
-High-precision universal mounting head: one machine can meet the mounting needs of various components with high stability
-Cast iron base structure, the pick and place machine runs smoothly at high speed, better than marble.
-The X&Y axis driven by Panasonic servo motor ensures the long-term stability and precision of the machine.
Charmhigh TC06: CPK detection passed, TC06: CPK≥1.0, Support 01005, high precision model:
What is CPK detection?
CPK refers to the process capability index, it is a measure of how consistent and accurate a pick-and-place machine is in its production, If the CPK is high, it means the machine is really good at placing components exactly where they need to be. But if the CPK is low, it might mean the machine is not so good at it, and there could be more mistakes in the assembly process. It tells us how stable the machine's quality is during manufacturing. Here is the relationship:
CPK < 1: Poor
1 ≤ CPK < 1.33: normal
CPK ≥ 1.33: excellent
Summarize: CPK is a measure of how consistent and accurate a pick-and-place machine is in its production. Essentially, it tells us how stable the machine's quality is during manufacturing.
Mounting samples:
How to choose nozzle?
Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
