Product Details:
|
| Heads: | 6pcs(with 19pcs Nozzle Auto-change Position) | PCB Size: | 350mm(L) * 300mm(W) |
|---|---|---|---|
| Speed: | 27800 CPH (best Condition Under Our Company) | Feeder: | Support 50pcs NXT Electric Feeder |
| Component: | 01005, 0201,0402,-5050, SOP, QFN,BGA To 36*36mm Larger Components | Max Component Height: | 12mm |
| Camera: | IC Camera: 1pcs (36x36mm); Flying Camera: 6pcs (16x16mm); MARK Camera: 2pcs | PCB Delivery: | 3 Pieces Auto Delivery With Rails, Width Can Be Adjusted By Software |
| Dimension: | 890mm(L)x1450mm(W)x1500mm(H) | Power Supply: | AC220V (50 Hz, Single Phase) |
| Feeder Type: | Fuji NXT Electric Feeder | Motor: | Panasonic Servo Motor |
| PCB Thickness: | 0.6-3.5mm | Net Weight: | 900kg |
This pick and place machine is compact and adorable, yet incredibly powerful.
Narrow Design High Precision TC06 Module SMT Pick and Place Machine 6 Heads 50 feeders, Support 01005 CPK>1.0
89cm width, suitable for most office doors and elevators!
Charmhigh TC06 parameters:
| Dimensions |
890mm(L)x1450mm(W)x1500mm(H)
|
| Weight | 900kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 |
| Mounting Speed | 27800cph (optimal) |
| Mounting Accuracy | (xy)+30μm, CPK≥1.0 |
| Component Height | ≤12mm |
|
Component Type & Component Range |
-Resistor capacitor exclusion, cylindrical diode, aluminum -Inch size 01005 to 36*36mm, and larger components mounting |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x300mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by Panasonic servo motors |
| Transmission System | Grounding screws + Linear guides |
| Feeding System | 50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2 |
1. Model number: TC06
2. Brand: Charmhigh
3. Main configuration: Full automatic in-line + PCB auto delivery + 6 Heads 50 feeders + (xy)+30μm, CPK>1.0 + X&Y axis driven by Panasonic servo motor + automatic nozzle changer + 9 cameras + Ground screw & Linear Guides + Thermal Compensation + Optimal speed: 27800CPH
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area: 350mm(L) * 300mm(W)
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005/ 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/ BGA/ LED... to max 36*36mm IC
8. Dimension: 890 (L) * 1450 (W) * 1500 (H) mm, AC220V (50hz, single phase)
9. Lead time: 5-7 working days
10. Delivery: by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Charmhigh YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos
TC06 working video, mounting 01005: https://www.youtube.com/watch?v=jmGMTdvt9FY
Part list:
| Item | Quantity | Item | Quantity |
| TC06 Pick and place machine | 1 | Lubricating oil | 1 |
| Nozzles | 8 | Filter | 4 |
| Tool box | 1 | Quick connector | 1 |
| Warranty Card | 1 | Mouse Pad | 2 |
| User Manual | 1 | Power Cable | 2 |
| Test Report | 1 | Keyboard | 1 |
| Brush | 1 | Mouse Pad | 1 |
| Tweezer | 1 | LCD | 1 |

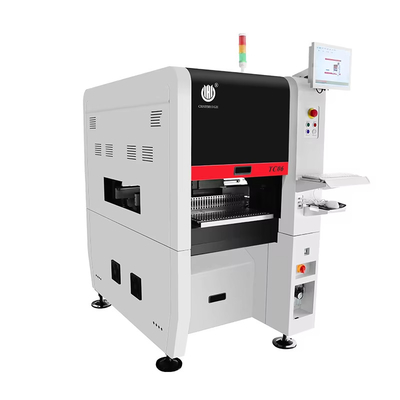

Charmhigh TC06, 6-head 50-feeder: (width 890mm)
Cast iron integrated molding, ultra-strong X-beam structure.
TC06 advantages:
-Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.
-ANC: Automatic nozzle change, nozzles can be automatically allocated according to components, making SMT production more intelligent and more efficient.
-High-precision universal mounting head: one machine can meet the mounting needs of various components with high stability
-Cast iron base structure, the pick and place machine runs smoothly at high speed, better than marble.
-The X&Y axis driven by Panasonic servo motor ensures the long-term stability and precision of the machine.
Machine-specific pain point solutions: "Changing nozzles drives my team crazy"
Auto-Nozzle Changer handles 6 types in 30 sec.
Machine-specific pain point solutions: "Our workshop elevator is too small"
890mm Slim Body fits standard elevators – no disassembly!
Machine-specific pain point solutions:
" Summer heat ruins placement accuracy"
Smart Thermal Compensation keeps ±0.01mm all day.
Machine-specific pain point solutions:
"Feeder alignment eats production time"
Laser Auto-Calibration – set 50 feeders in 5 minutes.
Machine-specific pain point solutions:
"While others shake, we stay steady: Dual-motor stability for flawless high-speed placement."
"Finally – a machine that doesn't vibrate off tiny chips when rushing orders."
Machine-specific pain point solutions: "New component setup takes hours"
Pre-Loaded Library of Common Components – drag & drop to start.
Machine-specific pain point solutions: Machine downtime kills our deadlines"
TC06 works like 3 machines – 24/7 reliability.
Machine-specific pain point solutions: "Training new operators takes months"
Simple interface – anyone can run it in 1 hour.
SMT production line recommendation:
Mounting samples:
Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
