CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control

CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control
CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control

Large Image :  CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT36VA
Document: CHMT36VA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3200 including shipping DHL
Packaging Details: wooden box
Delivery Time: 1-3 days
Payment Terms: T/T,PayPal,Western Union
Supply Ability: 100 Per month
Contact Now

CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control

Description
Tape Feeder: 1- 29pcs Place Head: 2 Heads
Speed: Vision On: 2800cph Accuracy: 0.025mm
Need External PC: Yes, With Windows7/10 System PCB Size: 10*10mm~355mm(L)*355mm(W)
XYZ Axis Travel: 400mm(X)*460mm(Y)*15mm(Z) Highest Component: 5mm
Highlight:

2 head SMT pick and place machine

,

29 feeder SMT placement machine

,

PC controlled SMT pick and place

PC Control Desktop CHMT36VA SMT Pick and Place Machine 29 Feeders 2 Heads Classic Model
Key Features
  • Double vision cameras for accurate IC placement
  • CE certified with English language interface
  • 220V/110V compatible power supply
  • Windows 7/10 compatible PC control
Technical Specifications
Attribute Value
Tape feeder 1-29pcs
Place head 2 heads
Speed Vision on: 2800cph
Accuracy 0.025mm
External PC required Yes, with Windows 7/10 system
PCB size 10*10mm~355mm(L)*355mm(W)
XYZ Axis travel 400mm(X)*460mm(Y)*15mm(Z)
Highest component 5mm
Product Description

The CHMT36VA SMT Pick and Place Machine is ideal for low-volume, high-mix production of 0402 and 0603 based designs. It features dual vision cameras for precise component placement and accepts Eagle BRD files to dramatically reduce setup time.

Working Videos
CHMT36VA working video from bleckers CHMT36VA working video from Italy
Detailed Specifications
Model: CHM-T36VA
PCB area: 10mm*10mm - 355mm*355mm
X Y axis Travel: 420*460mm
Z axis moving range: 15mm
Placement heads: 2pcs
Feeders: 8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs, Front bulk IC tray=14pcs, custom IC tray
Vision system: Dual cameras (up & down cameras)
Mounting speed: 4000cph (vision off); 2800cph (vision on)
Mounting precision: ±0.025mm
Standard Accessories
  • Pick and Place Machine CHMT36VA 1
  • Juki nozzle total 4pcs (503, 504, 505, 506 size)
  • 8G USB driver 1 (software included)
  • Power Cord 1
  • Pull needle 2
  • Solenoid for pull needle 1
  • Camera positioning adjust black board 1
  • Hex wrench 6
  • Tweezers 1
  • Brush 1
  • Pen for touch screen 1
  • Fixture for IC tray 4
  • Grease 1
  • English user manual 1
Applications

Household appliances, auto electronics, power industry, LED industry, security, instruments and meters, communications, intelligent control, Internet of Things (IOT), and military industries.

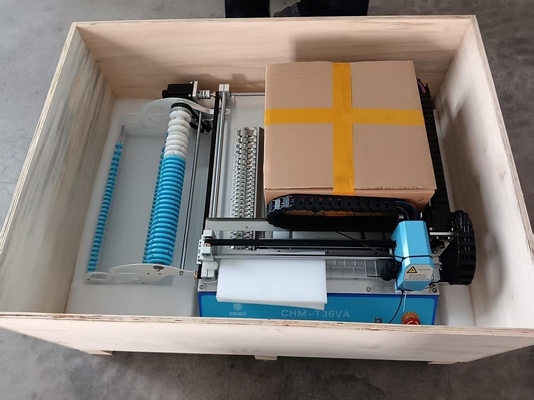

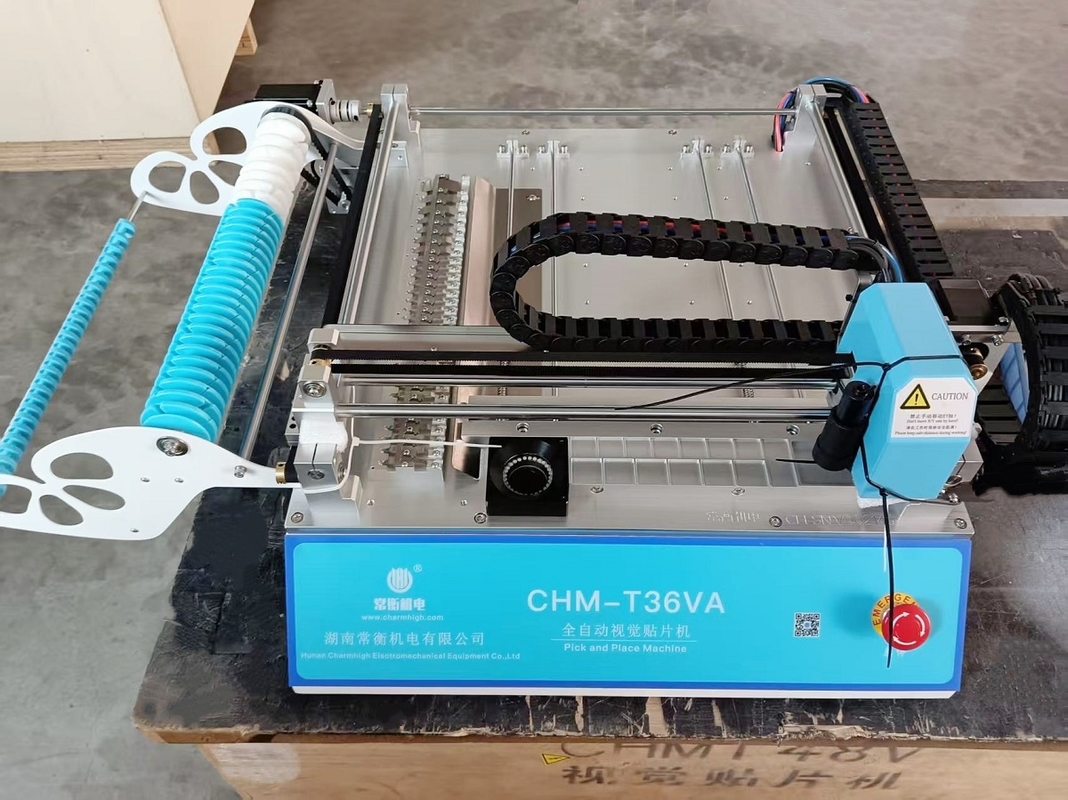

Product Images
CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control 0 CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control 1 CHMT36VA SMT Pick and Place Machine 2 Heads 29 Feeders PC Control 2
Service & Warranty

1-year warranty from purchase date with lifetime service. Each machine is 100% tested before shipping. We provide spare parts, online Q/A, troubleshooting support, and technical advice.

Technical Support

Kimi Liu
Mobile/WhatsApp: 0086 135 106 75756
Email: kimi@charmhigh-tech.com
YouTube: www.youtube.com/kimiLiuCharmhigh

Purchase Information

Buy directly from our online store: CHMT36VA Pick and Place Machine
