High Performance Full Auto PCB Assembly Line For Electronics Manufacturing

High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing High Performance Full Auto PCB Assembly Line For Electronics Manufacturing High Performance Full Auto PCB Assembly Line For Electronics Manufacturing High Performance Full Auto PCB Assembly Line For Electronics Manufacturing

Large Image :  High Performance Full Auto PCB Assembly Line For Electronics Manufacturing

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: TS10 + TM08
Document: Charmhigh TS10 - Catalog.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 6-9 working days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now

High Performance Full Auto PCB Assembly Line For Electronics Manufacturing

Description
Solder Paste Printer: Full Automatic E6 Pick N Place Mahcine: Charmhigh TS10,TM08
Reflow Oven: CHM-PC850 (8 Zones, Up8+down8) Other Machines: PCB Loader + PCB Unloader + SMT Conveyor
Highlight:

SMT Production PCB Assembly Line

,

Electronics Manufacturing PCB Assembly Line

,

Full Auto SMT Production Line

High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
Automatic SMT Production Line for Efficient PCB Assembly
CPK >1.0, support 01005 components
High-precision automatic SMT production line for PCB assembly. Full turnkey SMT line solutions with pick and place, reflow soldering. Compatible with 01005 components, BGA, QFN, and fine-pitch ICs. Ideal for high-mix, high-volume contract electronics manufacturing. With years of experience in SMT equipment manufacturing, Charmhigh Technology delivers reliable, cost-effective, and customizable SMT line solutions for global customers.

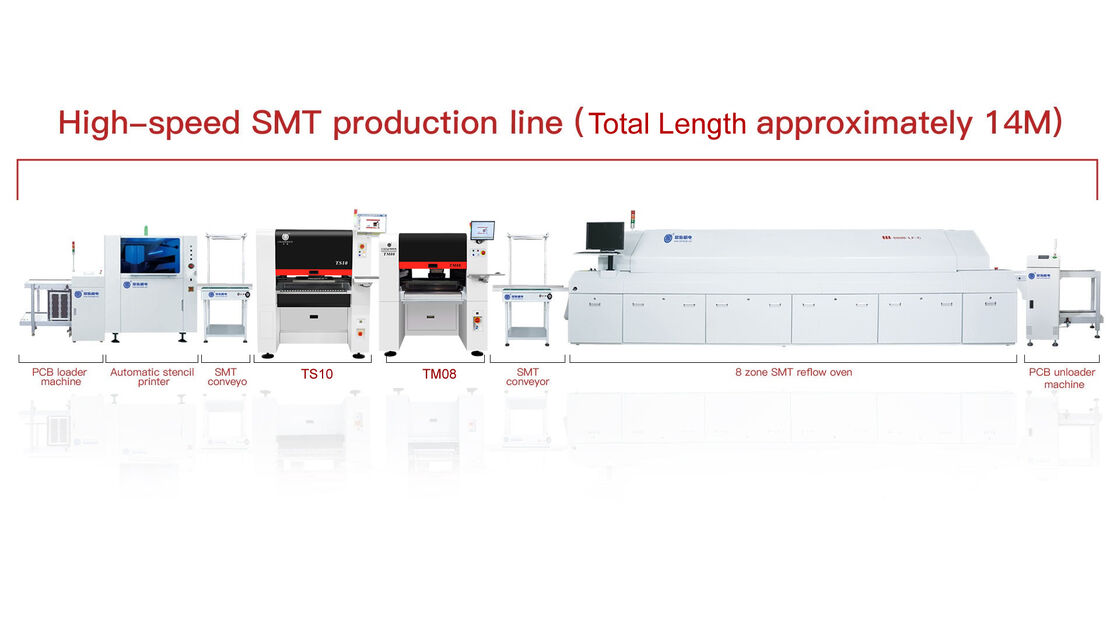

SMT Line Configuration
  • PCB loader 250LD
  • Fully-automatic solder paste printer E6
  • Conveyor 70cm

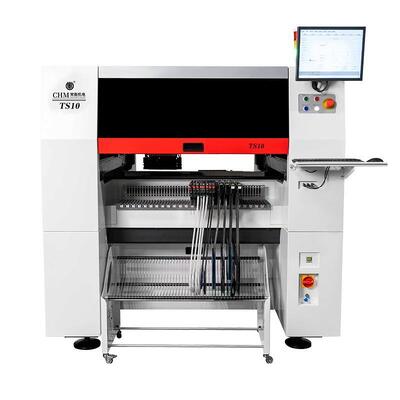

  • TS10 10-head pick and place machine (10-head)
  • Conveyor 70cm
  • TM08 8-head pick and place machine (8-head)
  • Conveyor 70cm
  • 8-zone Reflow soldering oven CHM-PC850
  • PCB unloader 250ULD
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing 0

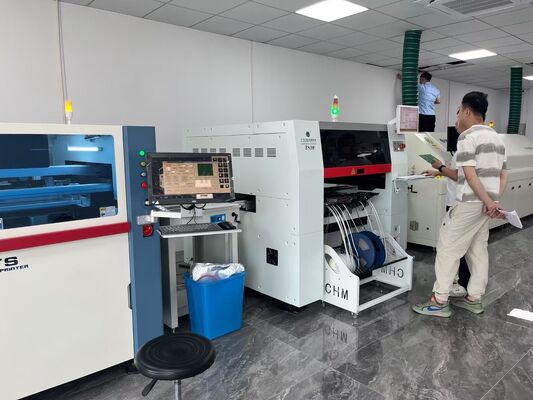

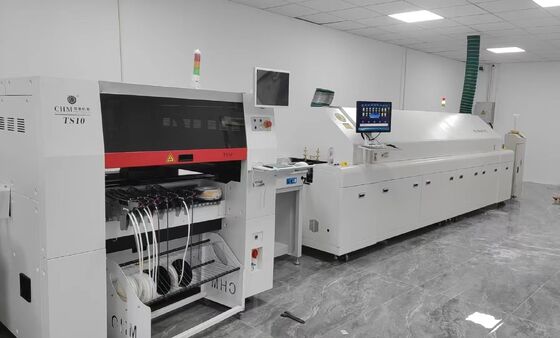

Customer Installation Site
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing 1 High Performance Full Auto PCB Assembly Line For Electronics Manufacturing 2
PCB Sample
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing 3
Secure Packaging for Sea Shipment
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing 4
Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

  • We always provide spare parts of machine, factory direct supply with guarantee
  • We provide online Q/A and troubleshooting support and technical advice service
  • We provide one to one after-sale service
  • Each machine 100% tested well before ship out
Technical Support
Kimi's Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube: www.youtube.com/kimiLiuCharmhigh
For more information, please contact us by email. We will respond at the first time.
