Medium SMT Production Line , 6 heads TC06 Full PCB Assembly PCBA Manufacturing

High end 6-head pick and place machine High accuracy Medium SMT Production Line

CPK passed CPK>1.0, support 01005, speed 27800cph, PCB 350(L)x300mm(W)

Description

Efficient and reliable SMT solution featuring semi-auto stencil printing, precision component placement, and 6-zone reflow soldering. Ideal for streamlined PCB production. Here we recommend the medium SMT assembly line as below:

Package:

1. 3250 Semi-auto solder paste printer

2. SMT conveyor

3. TC06 Charmhigh 6 heads pick and place machine

4. SMT conveyor

5. CHM-6635 reflow oven (up6 + down6 temp zones)

TC06 pick and place machine introduction:

https://www.youtube.com/watch?v=bsvEDkCh6KU

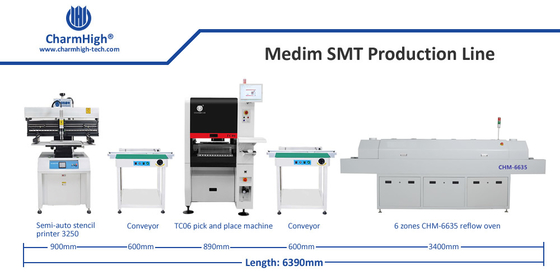

Compact SMT Line for Quality Assembly:

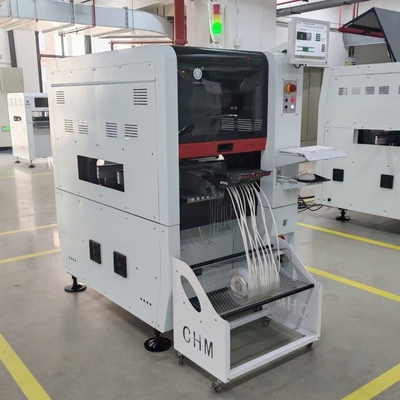

Charmhigh TC06 SMT pick and place machine picture:

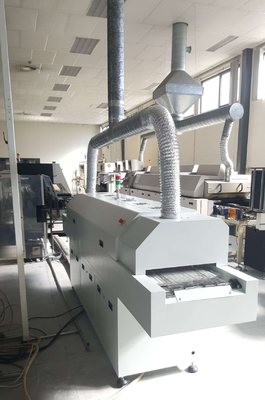

CHM-6635 reflow oven 6 heating zones:

Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.
