High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven

High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven
High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven
High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven

Large Image :  High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: Stencil Printer 3040 / CHM-551 / T961 Reflow Oven
Document: Charmhigh CHM-551 - Catalog...og.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $9400
Packaging Details: wooden box
Delivery Time: 1-3 working days
Payment Terms: T/T; Western Union
Supply Ability: 50 per month
Contact Now

High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven

Description
Stencil Printer: 3040 High Precision Printer Manual Type CHM-551: 4 Heads 50 Feeders With Auto Change Nozzle
T961: Conveyor Reflow Oven, 6 Temperature Zones SMT Line: High Precision Small SMT Line
Highlight:

3040 SMT Chip Mounter

,

CHM-550 SMT Chip Mounter

,

CHM-550 SMT Production Line

High Precision Small SMT Production Line 3040 Stencil Printer CHM-551 SMT Chip Mounter Reflow Oven T961
Product Overview

This high precision small SMT production line is ideal for small batch production, PCB assembly, and economical SMT solutions. Perfect for startup businesses, university education, and research applications.

Features high configuration with minimum component support of 0201, (XY)±0.05mm accuracy, and CPK≥1.0.

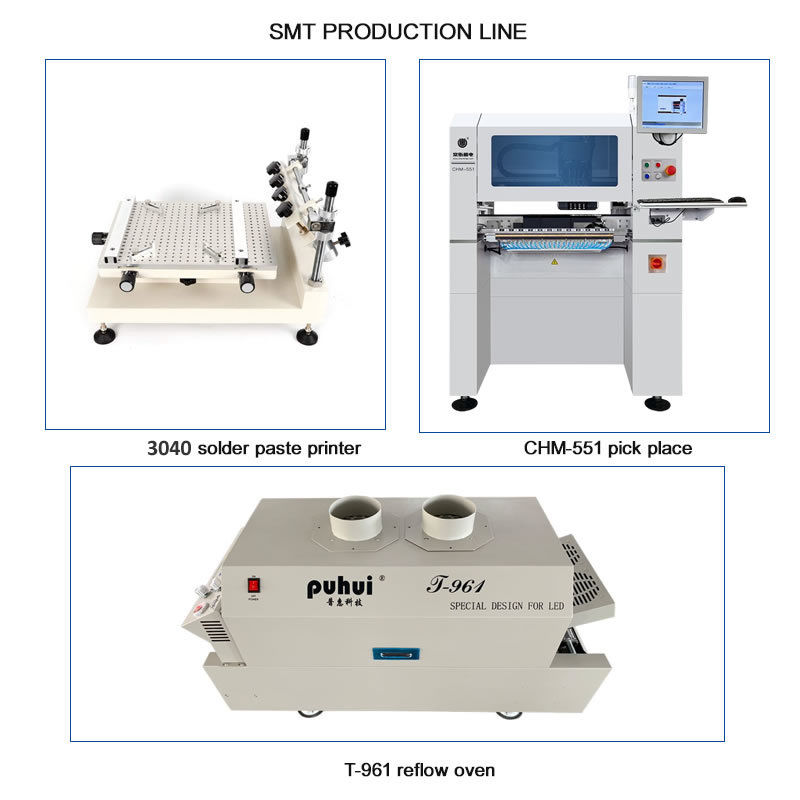

Product Components
Component Specifications
Stencil Printer 3040 high precision printer manual type
CHM-551 4 heads 50 feeders with auto change nozzle
T961 Conveyor reflow oven, 6 temperature zones
SMT Line High precision small SMT line
Technical Specifications
1. Stencil Printer 3040
Type Manual
G.W 23kg
Maximum Print Area 250*400mm
Packing Size L 66cm x W 50cm x H 28cm

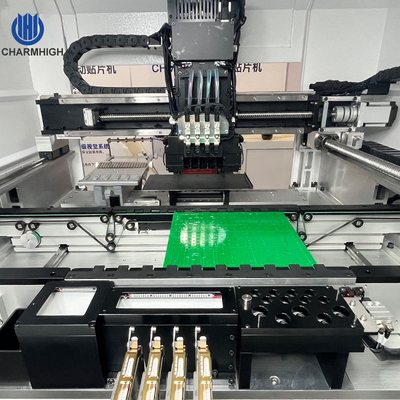

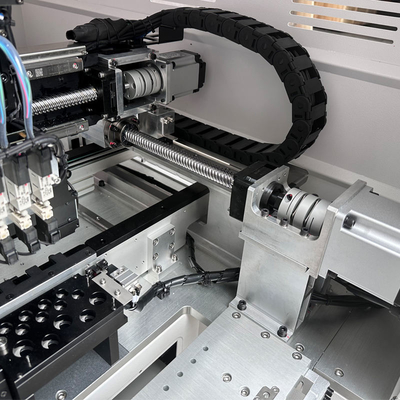

2. CHM-551 Pick and Place Machine
Dimensions 1050mm(L) x 1050mm(W) x 1360mm(H)
Weight 310kg
Power Supply AC220V (50Hz, single phase) 1.5kw
Mounting Speed 11500CPH (optimal); IPC9850: 8850cph
Mounting Accuracy (XY)±0.05mm; CPK≥1.0
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

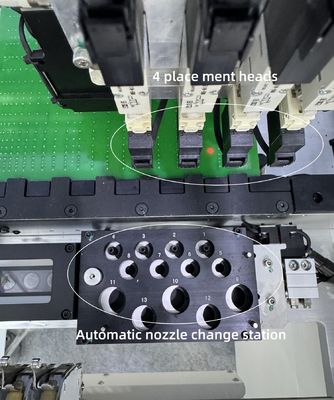

Nozzle Change Automatic nozzle change (13-hole nozzle library)

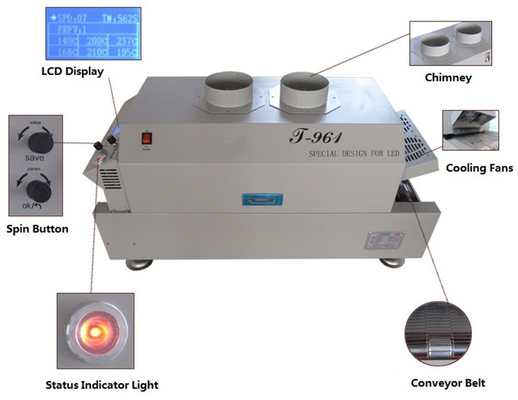

3. T961 Reflow Oven
Model T-961
Heating Zone Quantity Upper 3/Down 3
Heating Zone Length 730mm
Maximum PCB Width 230mm
Temperature Control Range Room temperature-300°C
Temperature Control Accuracy ±1°C
Parts List
Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Product Images
High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven 0 High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven 1 High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven 2 High Precision Small SMT Line with 3040 Printer CHM-551 Mounter T961 Oven 3
Quality Assurance

Charmhigh factory supply with quality assurance. Each machine is 100% tested before shipment.

Note: The CHM-551 SMT pick and place machine only requires connection to an external air source (prepared by customer). No other accessories are needed.

Service & Warranty
  • 1-year warranty from purchase date with lifetime service
  • Factory direct supply of spare parts
  • Online Q/A and troubleshooting support
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
Technical Support & Contact

Contact: Kimi Liu

Company: Charmhigh Technology Limited

Mobile/WhatsApp: +8613510675756

Email: kimi@charmhigh-tech.com

YouTube: www.youtube.com/c/KimiLiuCharmhigh/videos
