T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB

T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB
T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB

Large Image :  T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB

Product Details:
Place of Origin: China
Brand Name: Puhui
Certification: CE
Model Number: T981
Document: T-981 Manual.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2200
Packaging Details: wooden box
Delivery Time: 2-5 days
Payment Terms: T/T; Western Union
Supply Ability: 200 Per month
Contact Now

T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB

Description
Temperature Zone: 8 (up 5+ Down 3) Size Of Heating: 1160*350mm(chain)
Heating Type: Hot Air + IR Dimension: 1940mmx735mmx610mm
Temperature Control Range: Room Temperature～350℃ Net Weight: 195kg
Power Supply: (220/380V) 50/60Hz Temperature Control Mode: PID Closed-loop Control
Highlight:

8-zone lead-free reflow oven

,

BGA soldering reflow oven

,

double-sided PCB reflow oven

T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB
Product Specifications
Attribute Value
Temperature zone 8 (up 5+ down 3)
Size of heating 1160*350mm(chain)
Heating type hot air + IR
Dimension 1940mmx735mmx610mm
Temperature control range Room temperature～350℃
Net weight 195kg
Power supply (220/380V) 50/60Hz
Temperature control mode PID closed-loop control
Product Description

Lead-free Benchtop Chain Conveyor SMT Reflow Oven 1160*350mm BGA Soldering Oven 8 Temperature Zone (up5+bottom3)

Infrared & Hot air Soldering Reflow Machine, CE declaration Puhui T981 Double-Sided PCB, For SMT line

Key Features:
  • Puhui T-981 reflow oven employs IR and Hot air heating technology, uniform temperature distribution, suitable for medium-volume continuous soldering of LED board, strips / single/ double-sided PCBs in all packaging forms such as CHIP, SOP, PLCC, QFP and BGA components etc.
  • Chain-conveyor as the main transmission method, supplemented by a stainless steel mesh belt, which is durable, wear-resistant, and operates smoothly with precise speed control up to ±10mm/min. Convenient to build various SMT Production Line due to the design of chain type.
  • Equipped with a powerful touch screen module that integrates operation, display, monitoring, providing more intuitive displays and simpler operations, facilitating product upgrades.
Technical Parameters
Model T-981
The heating zone quantity Upper5/down3
The length of the heating zone 1160mm
The heating type IR and hot air heating
The cooling zone quantity 1
Maximum width of PCB Chain conveyor 360mm ; Mesh conveyor 400mm
The operation direction left->right
Delivery options Mesh conveyor + Automatic chain conveyor
PCB heating time 100-600s
The power supply 3 phase 5 lines (220/380V) 50/60Hz
Peak power 13.2KW
Average power 7.0KW
Heating up time ≤ 20 mins
Temperature control range Room temperature～350℃
Temperature control mode PID closed-loop control
Temperature control accuracy ±1℃
PCB temperature distribution deviation ±2℃
Overall dimensions 1940mm×735mm×610mm
Net weight 195KG

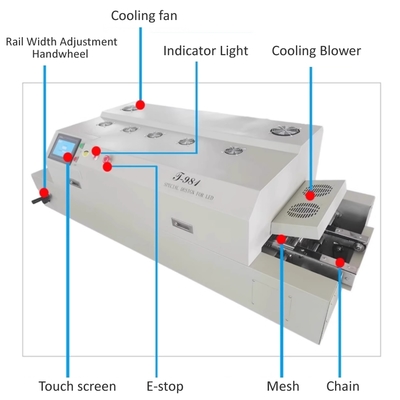

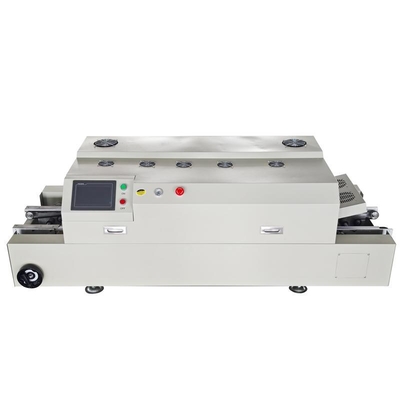

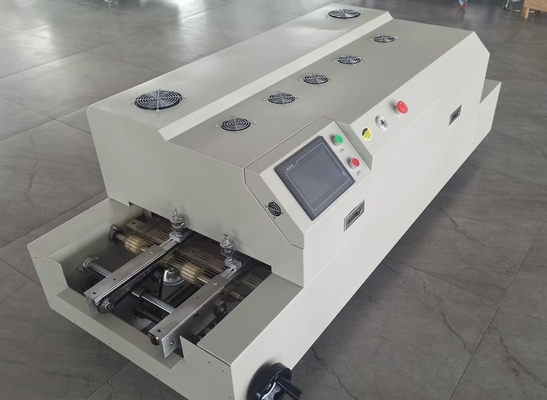

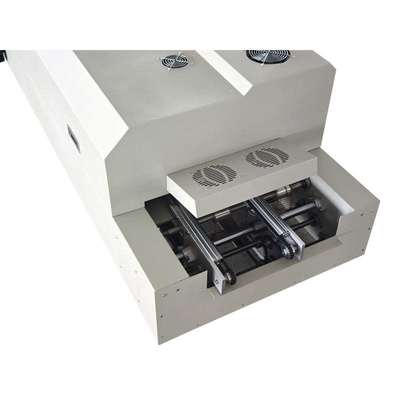

Product Images
(Available in desktop and vertical configurations)
T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB 0 T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB 1 T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB 2 T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB 3 T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB 4 T981 Benchtop Chain Reflow Oven Lead-free 8-zone BGA Soldering Double-Sided PCB 5
Warranty & Support

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service support as well as a long term factory price supply. (Artificial damage except)

We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.

If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.

Each machine 100% test well before ship out.

Technical Support:
Kimi Liu: Mob & WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com
YouTube: https://www.youtube.com/@KimiLiuCharmhigh
