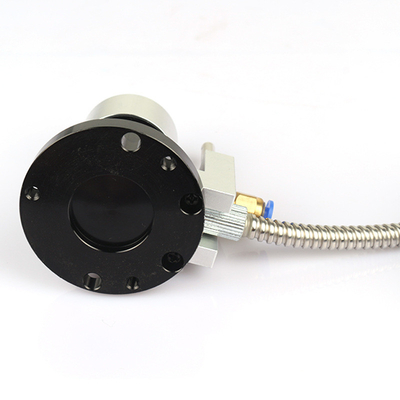

IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V

IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V
IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V

Large Image :  IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V

Product Details:
Place of Origin: China
Brand Name: BY
Certification: CE
Model Number: BY-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation, accept customization
Packaging Details: Carton box
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month

IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V

Description
Name: CNC Tool Setting Gauge Protect Structure: IEC IP67
High Light:

Z Axis CNC Tool Setting Gauge

,

IEC IP67 CNC Tool Setting Gauge

,

CNC Tool Setter 5V

CNC Automatic Tool Setting Instrument Tool Setting Gauge CNC Tool Setter Tool Sensor BY-20 Z Axis Instruments Probe





CNC parts accept customization, with complete models, welcome inquiry!



Features:

Dimension (mm) φ55*70
Contact diameter (mm) φ20
Material of contact area Superhard alloy
Cable φ5*2m oil resistant, 4 core

Strength of extension 20N

minimum bending radius R7

Tube

304 stainless soft tube 2m

minimum bending radius R25

Blower has
Protect structure IEC IP67
Tool setting signal mode NC (normally closed)
Input Rating

AC.DC5V-24V 20mA (recommend 10mA)

resistive load

Contact life time 5 million times
Pretravel Almost 0
Total stroke (mm) 5
Contact force 2N (installation position: vertical)
Repeat tool accuracy 2μm (operation speed: 50-200mm/min)
Over stroke protection NC (Normally closed)
LED lamp Default: LED OFF/ Operating: LED ON
Machine type

- Medium-sized metal engraving and milling
machine;

- Small CNC machining center;

- Special machine

Characteristic

Standard configuration of machining
center

it can realize hand wheel tool setting



Detail real pictures:

(100% good quality assurance)

IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V 0

IEC IP67 Z Axis Automatic CNC Tool Setting Gauge 5V - 24V 1



The CNC Parts warranty 2 years, with 100% good quality assurance.

Accept customization, welcome inquiry!

Please feel free to contact us if you have any other questions.



What other CNC parts we provided:

CNC hand wheel, CNC tool sensor, CNC oil Pump, CNC modular. All products accept customization.
