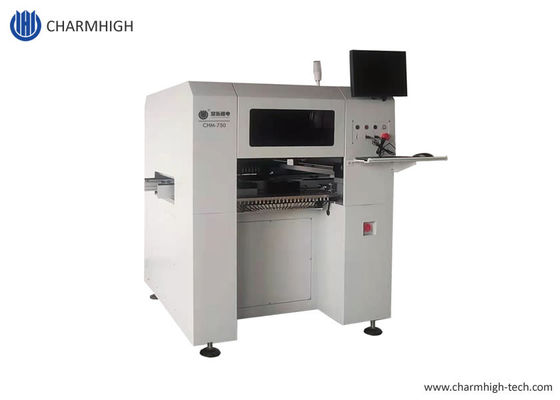

0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor

Certification
China CHARMHIGH  TECHNOLOGY  LIMITED certification
China CHARMHIGH  TECHNOLOGY  LIMITED certification
Customer Reviews
Super quanlity, fast shipment. Special thanks to Kimi Liu, with the help of which everything went happliy! All the customer must love you for your support.

—— Claude Gatys - Poland

All 3 items arrived securely packaged,, within 1 hour I had the PnP machine placing parts. Easy to use and set up, accurate, fast. Tsop48 no problem.

—— Ben Grimmett - Australia

Exactly as described. Super fast shipping from the other side of planet! Machine is great so far in testing. Fantastic customer service. I will do business again with them.

—— Terry Torres- USA

This is an amazing machine that's very well designed and put together. Charmhigh representative was very responsive with good English.

—— Karl Walter - U.S.A

Don't fooled by the low cost of this machine, it is surprisingly well built, came excellent package. It runs fairly consistently.

—— Mark Janes - United Kingdom

Great product, fast shipping, easy communication.

—— Dian Kurniawan - Indonesia

Charmhigh provided very good service and answered every questions I had quickly and very helpful. I tested main functions, everything workds good.

—— Rajko Brenscheid - Germany

I'm Online Chat Now

0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor

0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor
0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor
0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor 0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor

Large Image :  0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHM-650 (4 heads + 50 feeders)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union

0201 0402 4 Heads SMT Pick And Place Machine With Panasonic Servo Motor

Description
Heads: 4pcs Max PCB Size: 450mm*300mm
Feeder: Support 50pcs YAMAHA CL Feeder/Electric Feeder Dimension: 1280(L)*1190(W)*1050(H) Mm
Cameras: 6pcs Small Camerea+1 Big Camera+2 Mark Camera Motor: Panasonic Servo Motor
Components: 0201, 0402~5050, SOP, QFN, BGA, PLCC, LED
High Light:

4 Heads SMT Pick And Place Machine

,

0201 SMT Pick And Place Machine

,

0201 SMT Pick Place Machine



SMT Pick And Place Machine 0201 0402 4 Heads With Panasonic Servo Motor



CHM-650 Specifications
Dimensions 1280mm(L)x1190mm(W)x1050mm(H)
Weight 310kg
Power Supply AC220V/110V (50Hz, 1 phase), 2.1kW
Air Supply 0.5MPa ~ 0.7MPa
Vacuum Generation Vacuum generator
Mounting Head  4 Heads
Mounting Speed 9000cph(optimal)
Mounting Accuracy ±50μm@μ±3σ/chip
Control Accuracy 5μm
Component Height 12mm
Component Type

0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)

PCB Thickness 0.6mm~3.5mm
PCB Size 400mm(L)x350mm(W)
PCB Conveying 3-section-rail automatic conveying
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System

Built-in industrial computer (Windows system)

equipped with monitor, keyboard, and mouse

Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System

50 Yamaha 8mm standard pneumatic/electric feeder slots

(also suitable for IC tray and stick feeder)

Vision System

Snapshot camerax4 (component size applicable: 16mmx16mm);

IC camerax1 (component size applicable: 36mmx36mm);

Mark camerax2





Each side 25pcs feeders, total 50pcs tape feeders supported:​  (Yamaha electric feeder + pneumatic both suitable)

8/12/16/24/32mm feeder, stick feeder, IC tray supported, purcahse separately.




Perfect Model, welcome inquiry!


1. Model number: CHM-650

2. Brand: Charmhigh

3. Main configuration: Desktop type + PCB auto delivery + 4 Heads 50 feeders + X Y axis servo motor + auto nozzle changer + ball screw + linear guide rail + 7 cameras + brand new smart software

4. Feeder: 2 options: Yamaha electric feeder / pneumatic feeder (feeders purchase separately)

5. Max PCB area: 400*350mm ; Max component height : 12mm

6. Comes with computer & keyboard & mouse with Windows system

7. Component: 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.

8. Dimension: 1280(L)*1190(W)*1050(H)mm, AC220V/110v (50/60Hz)

9. Lead time: 7-10 working days

10. Delivery: by DHL/ by air / by sea / pick up from our factory directly / send to China warehouse

11. Payment method: wire transfer (T/T)

12. Packing: plywood box



Please note:
The pick and place machine is complete set with all accessories included in the package, you need to purchase feeders separately and need to prepare compressor with 10mm outer diameter pipe (supplying air for pneumatic feeders), inserting the pipe on the backside of machine.
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
