Perfect & Ecnomic 4 heads 50 Feeders PCB Component Placement Machine 220V

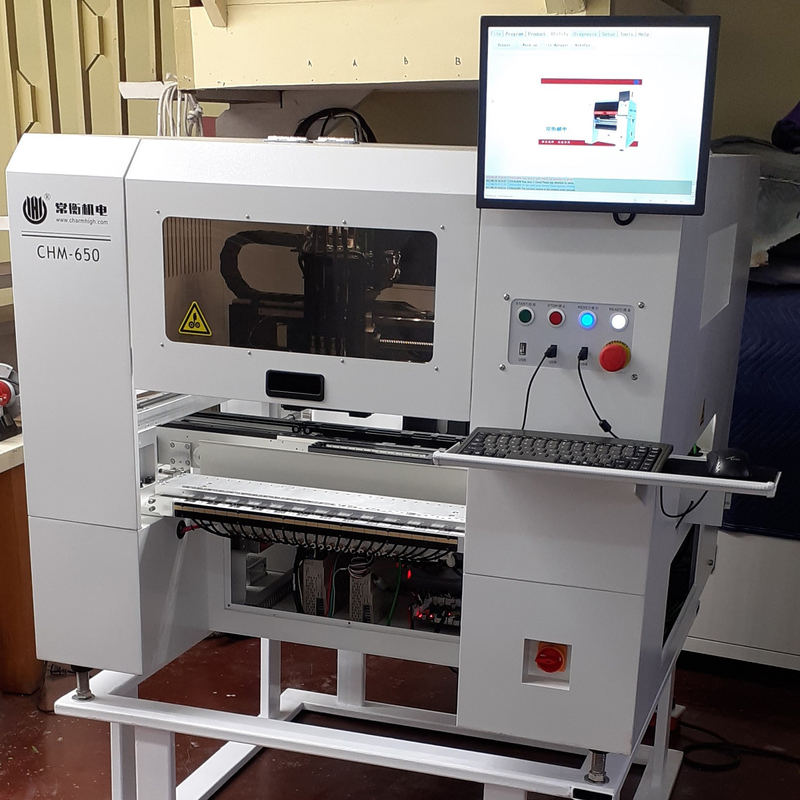

CHM-650 SMT Pick and Place Machine, good for precision small SMT Batch production
with Auto nozzle change, no need manual change nozzle, working with universal Yamaha feeders
YouTube working video:
CHM-650 mounting 0201 0402 TQFP 128pin:
https://youtu.be/PdjjR7lc56Q
CHM-650 mix mounting:
https://www.youtube.com/watch?v=Hk0rwxEVXf8
CHM-650 working video from Bulgarian customer:
https://www.youtube.com/watch?v=50mu2rlPrrc

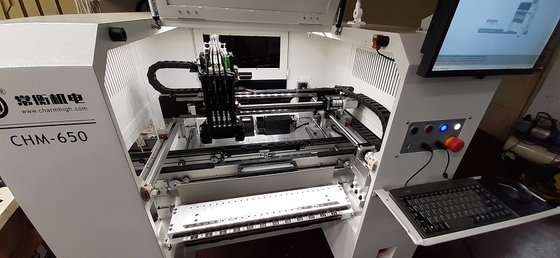

Real shot of CHM-650 4 heads pick and place robot at factory:
https://www.youtube.com/watch?v=R6UZqwV8Zvc
| CHM-650 Specifications |
| Dimensions |
1280mm(L)x1190mm(W)x1050mm(H) |
| Weight |
310kg |
| Power Supply |
AC220V (50Hz, 1 phase), 2.1kW |
| Air Supply |
0.5MPa ~ 0.7MPa |
| Vacuum Generation |
Vacuum generator |
| Mounting Head |
4 Heads |
| Mounting Speed |
9000cph(optimal) |
| Mounting Accuracy |
(XY) ±0.05mm; CPK≥1.0 |
| Control Accuracy |
5μm |
| Component Height |
12mm |
| Component Type |
0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
|
| PCB Thickness |
0.6mm~3.5mm |
| PCB Size |
400mm(L)x350mm(W) |
| PCB Conveying |
3-section-rail automatic conveying |
| Nozzle Change |
Automatic nozzle change (19-hole nozzle library) |
| Control System |
Built-in industrial computer (Windows system)
equipped with monitor, keyboard, and mouse
|
| Drive System |
X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System |
Ball screw + linear guide |
| Feeding System |

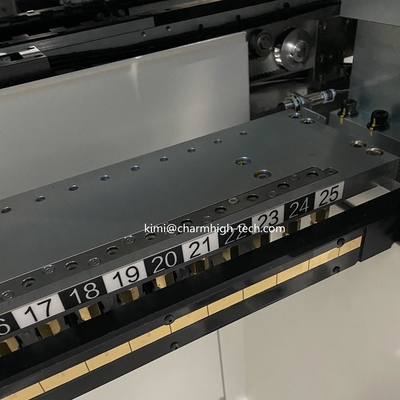

50 Yamaha 8mm standard pneumatic/electric feeder slots
(also suitable for IC tray and stick feeder)
|
| Vision System |
Snapshot camerax4 (component size applicable: 16mmx16mm);
IC camerax1 (component size applicable: 36mmx36mm);
Mark camerax2
|
CHM-650 small & high precision SMT pick and place machine, support 0201 mass production:
Highlight:
1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!
2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.
3. High configuration with smart software, longer lifespan, Charmhigh provide stronger mechanical part.
Working with universal standard Yamaha Feeders(purcahse separately):
Option:
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder
3. Vibration feeder
Customer feedback:
Small & high precision & economic SMT production line recommendation:
Charmhigh, top Chiense brand.
Please note:

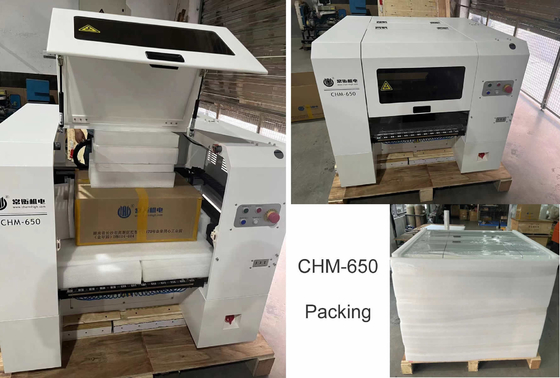

The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for feeders, Automatic nozzle change, head vacuum, PCB stopper..)
Please purchase this machine with confidence. Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
