Product Details:
|
| Operation Power: | 5-10KW | Start-up Power: | 48KW |
|---|---|---|---|
| Heating Zone Quantity: | Upper8/down8 | Heating Area: | 3180*500mm |
| With Automatic Rail: | Yes | Warm-up Time: | Around 15-20 Mins |
| With PC Control: | Yes, With Industrial Computer | Type Of Components: | CSP, 0201 Chip, Etc. |
| Dimensions: | L 5300*1350*1500 Mm | Net Weight: | 1800KG |

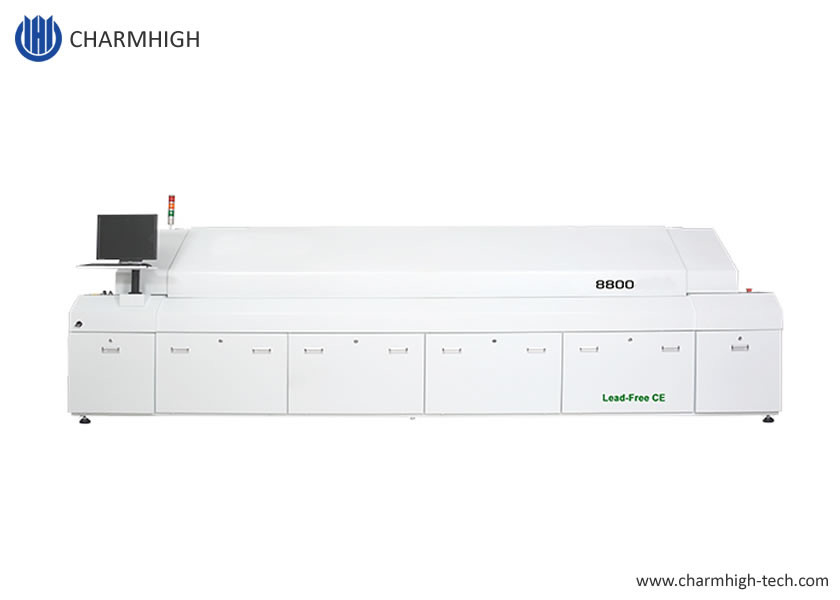

8800 Full automatic rail large reflow oven + PC control 8 temperature zones (up8+down8)
Lead-free SMT Reflow Oven 8800 SMT soldering oven, heating size 3180*500mm
8800 Big-Sized 8 Zones Lead-Free SMT Reflow Soldering Oven
| Model No. | 8800 |
| Heating Parts Parameters | |
| Number of Heating Zones | Up8 + Bottom8 |
| Length of Heating Zones | 3180mm |
| Heating Pattern | Full Hot Air (up and down in a small cycle) |
| Number of Cooling Zones | Plasma fan air-cooled plus two-stage liner cooling (length 800MM) |
| Conveyor Parts Parameters | |
| Max.Width Of PCB | Mesh width 500mm |
| Conveyor Direction | L→R |
| Conveyor Height | 880±20mm |
| Transmission Agent | Mesh + automatic rail |
| Conveyor Speed Range | 0-2000mm/min |
| Control Parts Parameters | |
| Power Supply | 5 Wire, 3 Phase, 380V |
| Start Power | 48KW |
| Power Consumption | Approx 8-10KW |
| Warming Time | Approx 20 mins |
| Temp. Setting Range | Room Temp.-380℃ |
| Temperature Control Method | PC+PID+SSR |
| Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
| Temperature Control Precision | ±2℃ |
| Temperature Deviation on PCB | ±2℃ |
| Abnormal Alarm | Temperature abnormal(too high or too low after the constant temperature keeping) |
| Power-off Protection | UPS |
| Open Way | Electric Screw Rod |
| General Parameters | |
| Dimension(L*W*H)mm | 5300*1350*1500 mm |
| Weight | Approx 1800Kg |
Technical features of 8800 reflow oven:
1. Computer + Siemens PLC intelligent control system, with a high temperature control precision of ±2°C (can work offline without affecting production in case of computer crashes), ensuring the stability and reliability of the control system;
2. Windows operating interface, powerful and easy to operate;
3. The upper furnace body opening adopts an electric push rod automatic lifting mechanism to ensure safety and reliability;
4. Equipped with a mesh belt tensioning device, ensuring smooth, non-vibrating, and non-deforming transportation, guaranteeing smooth PCB transportation; Synchronous guide rail transmission mechanism (can be connected online with fully automatic placement machines), ensuring precise guide rail width adjustment and long service life;
5. All heating zones are controlled by the computer using PID control (upper and lower temperature zones are independently controlled, and can be opened separately. Zone heating can be used to reduce start-up power);
6. The mesh belt transmission is fully closed-loop controlled by the computer, which can meet the simultaneous production of different types of PCBs;
7. It has a fault sound and light alarm function;
8. Equipped with a leakage protector to ensure the safety of operators and the control system;
9. Built-in UPS and automatic delay using a turbine heating method, independent hot air small circulation systems for the upper and lower layers, uniform temperature, high thermal compensation efficiency, efficient pressurized air ducts to greatly increase the flow of circulating hot air, rapid temperature rise (about 20 minutes), high thermal compensation efficiency, capable of high-temperature soldering and curing;
10. Each temperature zone of the upper and lower layers has an independent temperature sensing sensor, monitoring and compensating for the balance of each temperature zone in real-time;
11. The operating system has password management to prevent unauthorized personnel from changing process parameters. The operation record management can trace the modification process of process parameters, facilitating management improvement. It can store the existing temperature and speed settings of users and their temperature curves, and print all data and curves;
12. Integrated control window, computer switches, test curves, print curves, and transmission data can be easily operated, with a user-friendly design. Equipped with a three-channel temperature curve online testing system, which can detect the actual temperature curve of the soldering object at any time (no need for a separate temperature curve tester);
13. Special pressurized air circulation structure and special-shaped heating wire design, noise-free, vibration-free, with a very high heat exchange rate, and a very small temperature difference △t between the bottom of the components and the PCB board, which is most in line with the strict requirements of lead-free processes, especially for lead-free products with high difficulty soldering requirements.

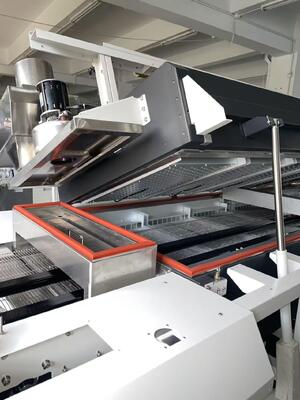

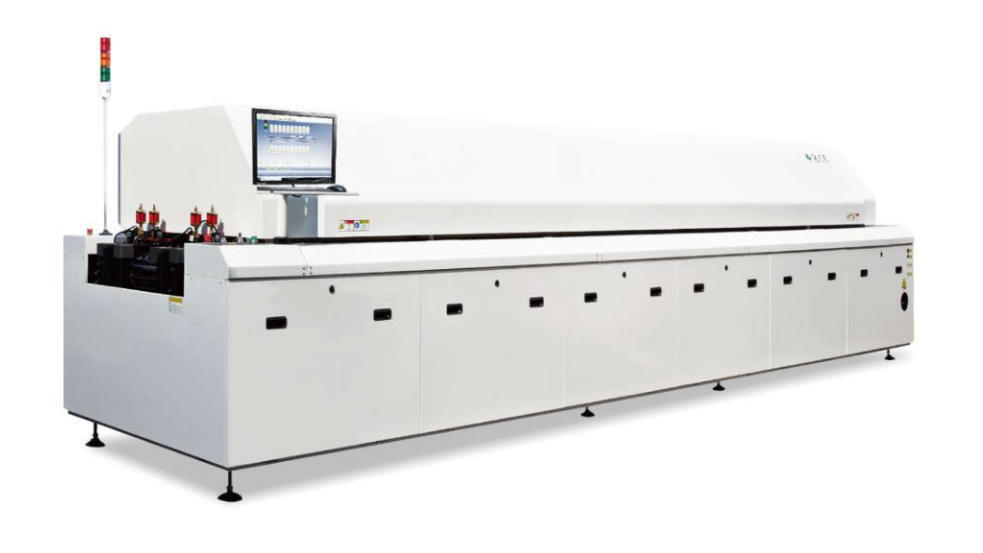

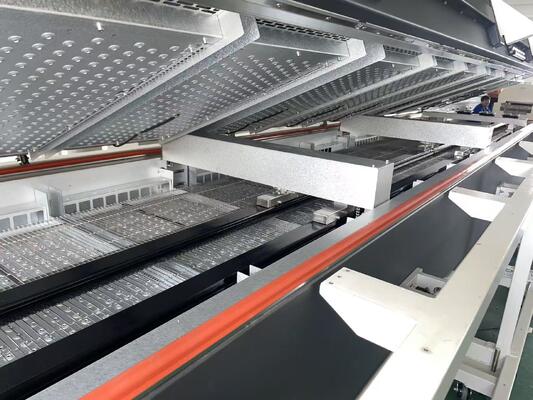

Real pictures for 8800:
Recommend large SMT production line:
1. PCB loader
2. Full-automatic solder paste printer G5
3. PCB conveyor
4. Pick and place machine TS10 (10 heads)
5. Pick and place machine TM08 (8 heads)
6. PCB conveyor
7. 8 temp. zones reflow oven 8800
8. PCB unloader
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
