Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine

Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine
Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine

Large Image :  Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHM-780, CHM-850, CHM-950
Document: SMT reel tape cutter.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1380 free shipping
Packaging Details: plywood box
Delivery Time: 5-7 days
Payment Terms: PayPal,T/T
Supply Ability: 200 Per month
Contact Now

Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine

Description
Voltage: 220v/ 110v For: Different Pick And Place Machine

Automatic SMT Reel Tape Cutter CHM-780 /850/ 950 Belt Cutting Machine
Product Overview

Automatic SMT Reel Tape Cutter CHM-780 / CHM-850 / CHM-950, 3 different lengths

Hands-Free Tape Cutting Machine 220v/110V for SMT Pick and Place Machine

Direct buy online from our store:

SMT Reel Tape Cutter

Product Description

This automatic SMT reel tape cutting machine is designed for SMT pick and place machines. The length can be customized according to your specific machine requirements.

Application Fields
  • SMT Chip Mounter
  • SMT SMD LED pick and place machine
  • Non-standard automation equipment
  • Compatible with: Yamaha, Juki, Samsung Hanwha pick and place machines, and more
Key Features
  • Blade and cutter made of high-strength steel through heat treatment and fine grinding for durability and sharp edges
  • Reduction motor drive with high strength, no jamming, and low noise operation
  • Multiple sensors for accurate stroke control and waste box removal detection
  • Self-developed control circuit for stable and reliable performance
Specifications
Model CHM-780 / CHM-850 / CHM-950 (different lengths)
Dimensions 780mm / 850mm / 950mm (length) × 290mm × 450mm (including wheels' height)
*780mm shipped as default - specify other length when ordering
Net Weight 30kg-40kg
Effective Cutting Length 470mm-640mm
Voltage & Power 220V; 50Hz; 100W
Control Features ON/OFF switch, speed control by frequency, safety protection function, automatic shutdown when removing waste box

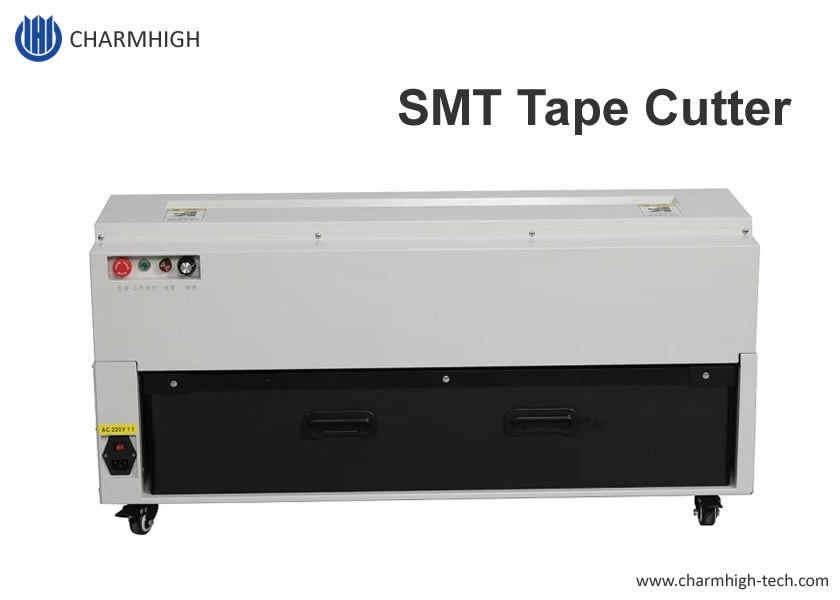

Product Images
Automatic SMT Reel Tape Cutter front view Automatic SMT Reel Tape Cutter side view Automatic SMT Reel Tape Cutter close-up Automatic SMT Reel Tape Cutter control panel Automatic SMT Reel Tape Cutter operation view
Installation Examples

Compatible with various pick and place machines including Yamaha, Juki, Samsung, and others. Custom lengths available for your specific machine.

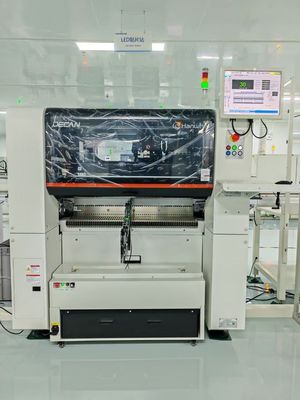

SMT Reel Tape Cutter installed on Yamaha machine SMT Reel Tape Cutter installed on Juki machine
Packaging
Strong protective packaging for SMT Reel Tape Cutter Secure shipping packaging for SMT Reel Tape Cutter
Warranty & Support

Warranty: Complete machine has 1-year warranty from purchase date with lifetime service support.

Spare Parts: We provide reliable factory-direct spare parts supply.

Technical Support: Online Q/A, troubleshooting support, and technical advice service. One-to-one after-sales service provided.

Quality Assurance: Each machine is 100% tested before shipment.

Contact Information

Technical Support: Kimi

WhatsApp & Mobile: +86 135 106 75756

Email: kimi@charmhigh-tech.com

YouTube: @KimiLiuCharmhigh

For more information and videos, please contact us by email. We respond promptly.
