Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Name: Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter
Brand: CHARMHIGH TECHNOLOGY LIMITED
SKU: TC06
Price: 68,100.00 USD
Availability: InStock

All Products

SMT Pick and Place Machine
(73)

SMT Production Line
(32)

Stencil Printer
(23)

SMT Reflow Oven
(34)

SMT Feeder
(21)

Small SMT Machine
(21)

SMD Pick and Place Machine
(19)

PCB Assembly Line
(8)

SMT Accessories
(9)

Wave Soldering Machine
(6)

PCB Loader Unloader
(4)

PCB Conveyor
(5)

Automated optical inspection (AOI)
(2)

Certification

Customer Reviews

Super quanlity, fast shipment. Special thanks to Kimi Liu, with the help of which everything went happliy! All the customer must love you for your support.

—— Claude Gatys - Poland

All 3 items arrived securely packaged,, within 1 hour I had the PnP machine placing parts. Easy to use and set up, accurate, fast. Tsop48 no problem.

—— Ben Grimmett - Australia

Exactly as described. Super fast shipping from the other side of planet! Machine is great so far in testing. Fantastic customer service. I will do business again with them.

—— Terry Torres- USA

This is an amazing machine that's very well designed and put together. Charmhigh representative was very responsive with good English.

—— Karl Walter - U.S.A

Don't fooled by the low cost of this machine, it is surprisingly well built, came excellent package. It runs fairly consistently.

—— Mark Janes - United Kingdom

Great product, fast shipping, easy communication.

—— Dian Kurniawan - Indonesia

Charmhigh provided very good service and answered every questions I had quickly and very helpful. I tested main functions, everything workds good.

—— Rajko Brenscheid - Germany

I'm Online Chat Now

Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Large Image : Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Product Details:

Place of Origin:	China
Brand Name:	Charmhigh
Certification:	CE
Model Number:	TC06
Document:	Charmhigh TC06 - Catalog.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$61200~$75000
Packaging Details:	export plywood box
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	50 per month

Contact Now

Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Description

TC06 Dimension:	890x1450x1500mm(LxWxH)	Net Weight:	960kg
Power:	AC220V (50 Hz, Single Phase)	Optimal Speed:	27800 CPH
Feeder:	Support 50pcs NXT Electric Feeder	PCB Size:	350mm(L) * 300mm(W)
Min And Max Component:	01005 To 36*36mm IC	Component Max Height:	12mm

Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Product Overview

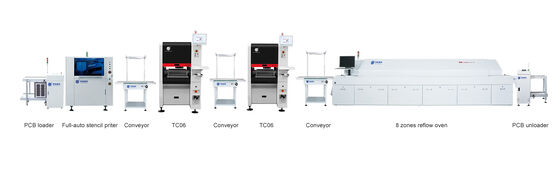

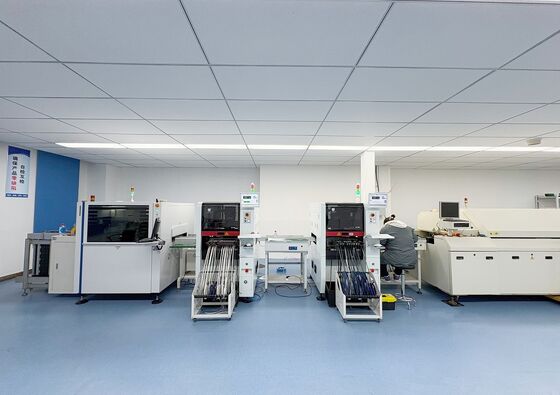

Dual TC06 Pick and Place Machines Fully-automatic SMT Production Line

High-end dual TC06 pick and place machines SMT assembly line for efficient PCBA manufacturing.

Complete Production Line Package

PCB loader 250LD
Fully-automatic solder paste printer E6
Conveyor 50cm
TC06 6-head pick and place machine
Conveyor 50cm
TC06 6-head pick and place machine
Conveyor 50cm
8-zone reflow oven CHM-PC850
PCB unloader 250ULD

Technical Specifications

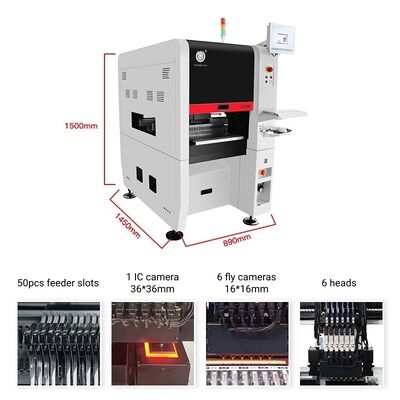

Dimensions	890mm(L)x1450mm(W)x1500mm(H)
Weight	900kg
Power Supply	AC220V (50Hz, single phase), 3kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	6
Mounting Speed	27800cph (optimal)
Mounting Accuracy	(xy)+30μm, CPK≥1.0
Component Height	≤12mm
Component Type & Range	Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. - Inch size 01005 to 36*36mm, and larger components mounting
PCB Thickness	0.6mm~3.5mm
PCB Size	350mm(L)x300mm(W)
PCB Conveying	3-section-rail automatic conveying, PCB support device
Nozzle Change	Automatic nozzle change (19-hole nozzle library)
Control System	Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by Panasonic servo motors
Transmission System	Grounding screws + Linear guides
Feeding System	50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2

Standard Parts Included

Item	Quantity	Item	Quantity
TC06 Pick and place machine	1	Lubricating oil	1
Nozzles	8	Filter	4
Tool box	1	Quick connector	1
Warranty Card	1	Mouse Pad	2
User Manual	1	Power Cable	2
Test Report	1	Keyboard	1
Brush	1	Mouse Pad	1
Tweezer	1	LCD	1

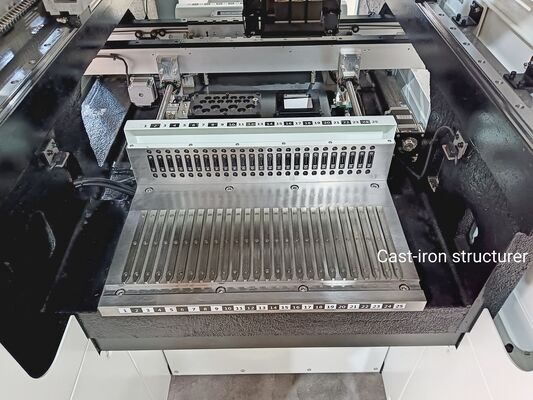

Product Images

Service & Support

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

Each machine 100% tested well before ship out.

Technical Support

Kimi Liu: Mob & WhatsApp: +86 135 106 75756

E-mail: kimi@charmhigh-tech.com

If you want to know more information, please contact us by E-mail. We will response you at the first time.
