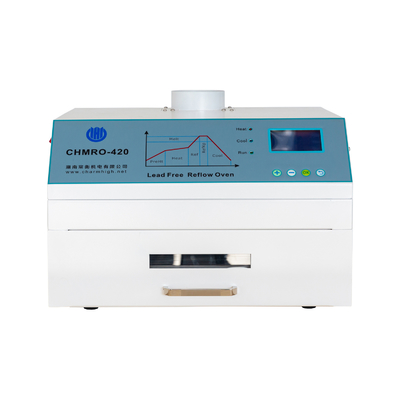

Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station

Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station
Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station

Large Image :  Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMRO-420
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $680 including shipping
Packaging Details: Packed in 5cm EPE foam firstly, and then reinforced with carton box for outer packing
Delivery Time: 1-2 working days after received your payment
Payment Terms: T/T , Western Union, MoneyGram
Supply Ability: 200pcs per month

Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station

Description
Rated Power:: 2500w Soldering Max Area: 300*300mm
Soldering Way: Hot Air + IR Mix Max Temperature: 300 Degree
Highlight:

BRT420 SMD BGA Rework Station

,

300*300mm SMD BGA Rework Station

,

2500w SMT Reflow Oven

Hot air + Infrared 2500w Reflow Oven CHMRO-420 300*300mm BGA SMD SMT Rework Sation Heating Station 220v

Ship by DHL express door to door, it takes 4-7 days arrive



Description of CHMRO-420 Reflow Oven:

Soldering max area: 300*300mm

Soldering way: Hot air + IR mix

Rated power: 2500W

Process Period: 5- 10 min

Max temperature: 300 degree

Temperature control accuracy ±1 degree (constant temperature)

Welding type: Lead & Lead free

Power Supply: AC220V/50HZ



Advantages:

Peak powr 2500w

300*300mm soldering size

Hot air + Infrared mix heating

Dual sensor temperature



Product Features

  Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;

  8 reflow profile is optional, flexible production;

  Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves and visually displayed;

  Built-in PID controllers, high precision temperature control;

  Drawer window design, commissioning and easy to use;

  The use of special high alloy filament lamp life;

  Dual sensor temperature;

  Use iron double ball bearing fan, high temperature, long life;

  Use pure stainless steel liner;

  Drawer rail support with high temperature, easy to use;

  Tight insulation processing;

  Using industrial-grade display and control circuit;

  Simple, intuitive, and efficient man-machine interface design.

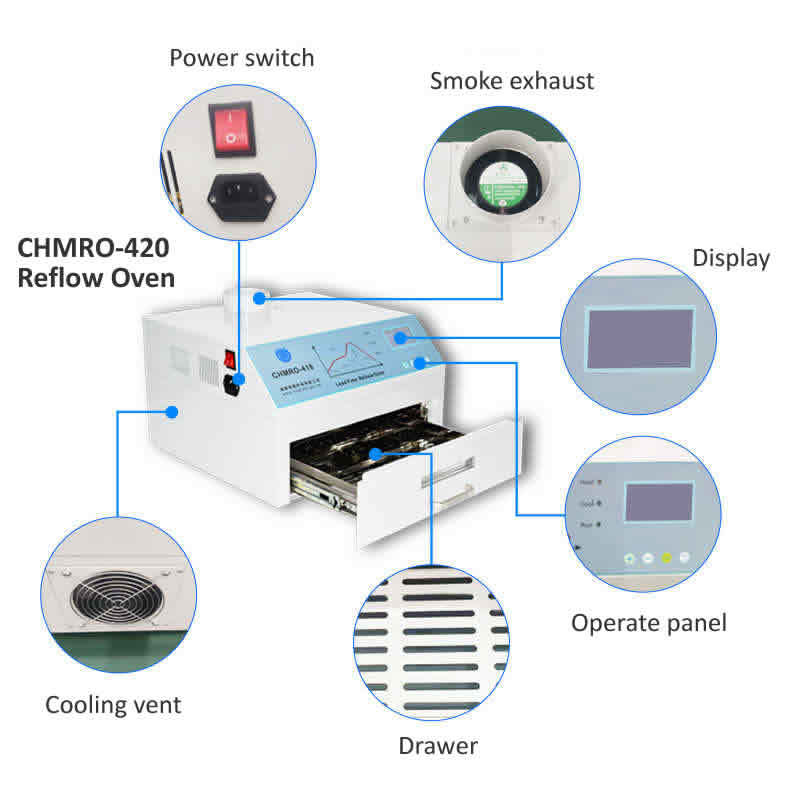

Pictures as follows:



Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station 0



Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station 1



BRT-420 now updated to CHMRO-420:

Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station 2

100% high feedback from customer:



Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station 3

Hot air + Infrared 2500w Lead-free Reflow Oven CHMRO-420 SMD Heating Station 4





Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
