2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven

2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven
2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven
2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven

Large Image :  2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven

Product Details:
Place of Origin: China
Brand Name: Puhui
Certification: CE
Model Number: T962A Plus
Document: T962A+ Manual.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $550 free shipping
Packaging Details: Carton box
Delivery Time: 1-2 days
Payment Terms: T/T; PayPal; Credit card
Supply Ability: 200 Per month
Contact Now

2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven

Description
Power: 2300w Dimension: 520mmX440mmX220mm
Soldering Area: 450*370mm With Exhaust: Yes Diameter 150mm
Net Weight: 18kg Cycle Time: 2-6 Min
Highlight:

450*370mm PCB Reflow Oven

,

2300w Infrared IC Heater

,

450*370mm Infrared IC Heater

2300w Drawer Type PCB Heating Station 450*370mm T962A Plus Infrared IC Heater
Product Specifications
Attribute Value
Power 2300W
Dimension 520mm × 440mm × 220mm
Soldering Area 450 × 370mm
With Exhaust Yes (Diameter 150mm)
Net Weight 18kg
Cycle Time 2-6 minutes
Technical Parameters
Soldering Area 450mm × 370mm
Voltage/Frequency AC220～230V/50Hz
Power Rating 2300W
Temperature Range Room temp～350℃
Standard Configuration
  • T-962A+ lead-free reflow oven × 1
  • Power line × 1
  • Fuse × 1
  • CD × 1
  • COM communication line × 1

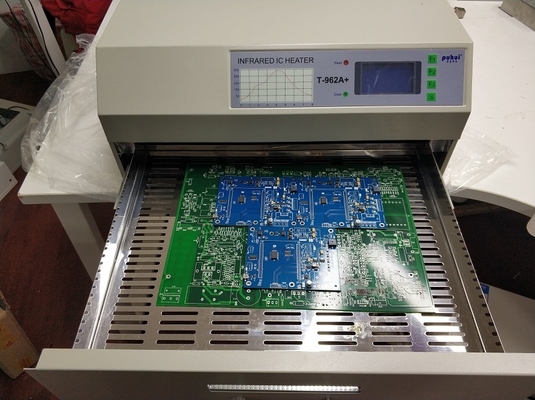

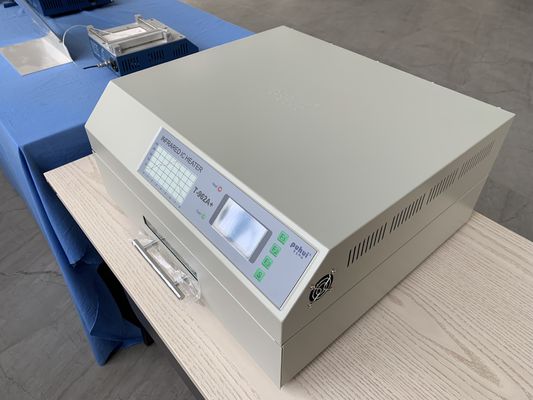

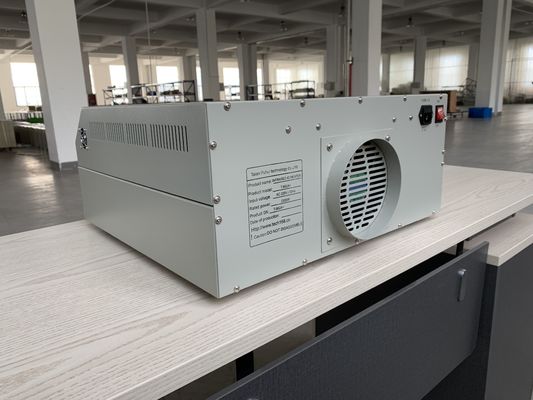

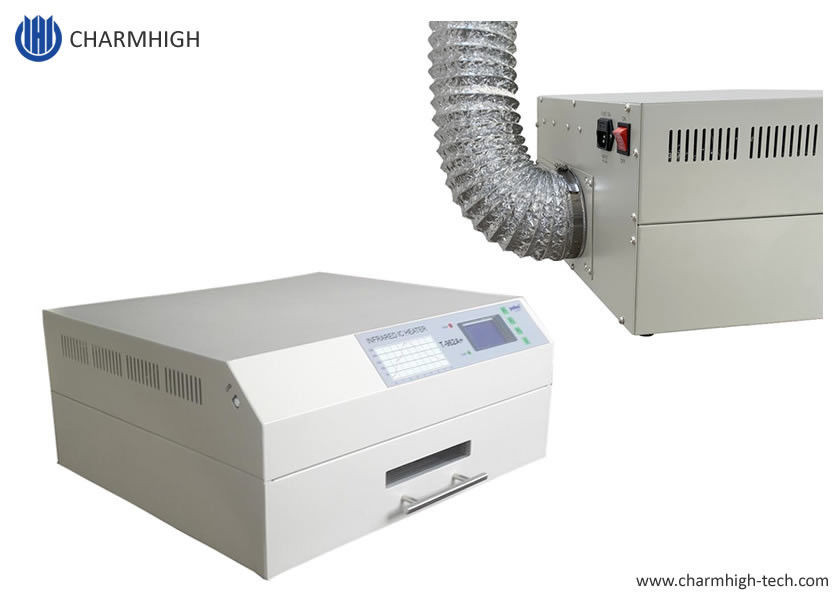

Product Images
2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 0 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 1 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 2 2300W T962A Plus Infrared IC Heater 450x370mm Reflow Oven 3
Packing List
  • 1 × Infrared IC Heater T-962A+
  • 1 × Power Cable
  • 1 × COM Communication Cable
  • 1 × Fuse (220V 8A)
  • 1 × User Manual
Purchase Information

Available at our online store with competitive pricing.

Service & Warranty
1-year warranty from purchase date with lifetime service support
Factory-direct spare parts supply
Online technical support and troubleshooting
One-to-one after-sales service
Each unit 100% tested before shipment
Technical Support
Kimi Liu
Mobile/WhatsApp: +86 135 106 75756
