635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine

635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine
635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine 635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine 635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine

Large Image :  635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: 635
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2480
Packaging Details: wooden box
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100 Per month

635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine

Description
Dimensions: L3500×W720×H1400 Heating Zone Quantity: Upper6/down6
Heating Area: 2200*350mm Heating Up Time: Around 15-20 Mins
Net Weight: 400kg Type: Lead Free
Highlight:

2200*400mm SMT Reflow Soldering Machine

,

635 SMT Reflow Soldering Machine

,

635 SMT Reflow Oven

635 Vertical Reflow Oven 12 Temp. Zones (upper6+ bottom 6) 2200*350mm reflow soldering machine

Smt Reflow Soldering Machine Lead-free



1.Competitive price for quality
2.More than 10 years manufacturing experience
3.One of the Leader of Smt machine manufacurers in China



Model No. 635
Number of Heating Zones Up 6 + Bottom 6
Length of Heating Zones 2200mm
Heating Pattern

Up: Hot air; Bottom: Hot air

(Forced convection of hot air, Taiwan SAYA motor)

Number of Cooling Zones 2 Plasma DC Fan
Max.Width Of PCB 350mm(stainless steel mesh belt)
Conveyor Direction L→R
Conveyor Height 880±20mm
Transport Mode Mesh Belt
Conveyor Speed Range 0-2200mm/min
Power Supply 5 Wire, 3 Phase, 380V 50/60Hz
Start Power 22KW
Power Consumption Approx 3.5KW
Warming Time Approx 15-20 mins
Temp. Setting Range Room Temp.- 310℃
Temperature Control Method Instrument-controlled
Temperature Difference Between Adjacent Zone 70 ℃, can correspond to the highest standards of lead-free process.
Temperature Control Precision ±2℃
Temperature Deviation on PCB ±2℃
Abnormal Alarm Temperature abnormal (too high or too low after the constant temperature keeping)
Open Way Manual
Dimension(L*W*H)mm L3500×W720×H1400
Weight Approx 400Kg

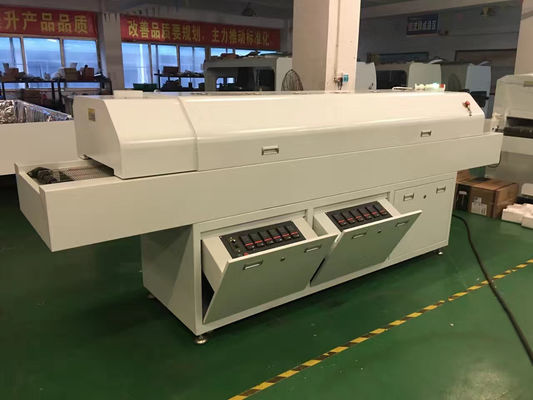

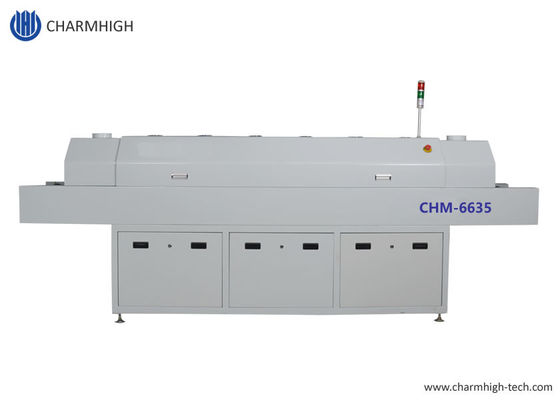

Pictures as follows:

635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine 0

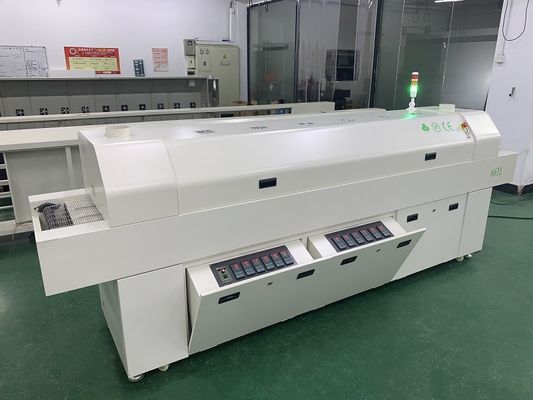

635 reflow oven customer feedback:

635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine 1



635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine 2



Recommend SMT assembly line:

1. 3250 semi-auto solder paste printer

2. PCB conveyor

3. CHM-551 SMT pick and place machine

4. PCB conveyor

5. 635 reflow oven

635 Reflow Oven 6 Temp. Zones (up6+down6) 2200*350mm SMT Reflow Soldering Machine 3

Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
