Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm

Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm
Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm

Large Image :  Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm

Product Details:
Place of Origin: China
Brand Name: Puhui
Certification: CE
Model Number: T961
Document: T-961 (new) User Manual.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1850 free shipping
Packaging Details: wooden box
Delivery Time: 2-3 days
Payment Terms: T/T; PayPal
Supply Ability: 100 Per month

Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730*230mm

Description
Power Supply: 220V 50/60Hz Dimensions: 1000*520*450mm
Heating Zone Quantity: Upper3/down3 Heating Area: 230*730mm
Heating Up Time: Around 7-10 Mins Net Weight: 70kg
Highlight:

T961 Desktop Reflow Oven

,

730*230mm Desktop Reflow Oven

,

3.5KW Soldering Machine

Mini 6-zone Reflow Oven T961 with Touch Screen Conveyor 730×230mm

New Touch Screen Mini Desktop SMT Reflow Oven T961 - Conveyor type reflow oven designed specifically for LED/SMD applications.

Buy directly from our online store at the lowest price:

T961 Reflow Oven Product Page

Technical Specifications
Model T-961
Heating Zone Quantity Upper 3 / Bottom 3
Heating Zone Length 730mm
Heating Type IR and Hot Air Heating
Cooling Zone Quantity 1
Maximum PCB Width 230mm
Operation Direction Left to Right
Transmission Mode Mesh Belt
Conveyor Belt Speed 100-600 seconds
Power Supply 220V 50/60Hz
Peak Power 4.5KW
Average Power 1.9KW
Heating Up Time Approximately 7-10 minutes
Temperature Control Range Room Temperature to 300℃
Temperature Control Mode PID Closed-loop Control
Temperature Control Accuracy ±1℃
PCB Temperature Distribution Deviation ±2℃
Overall Dimensions 1000×520×450mm
Weight 70KG
Product Images

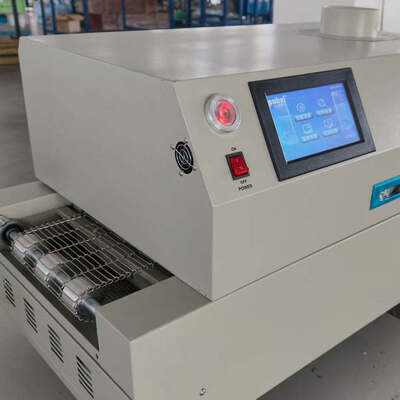

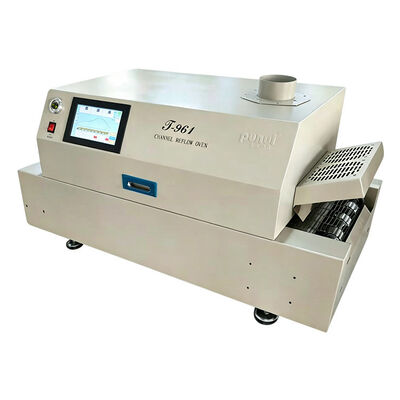

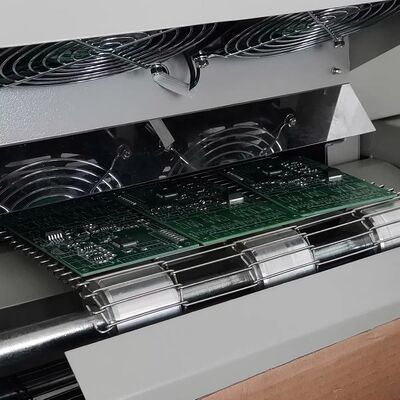

T961 Reflow Oven front view T961 Reflow Oven side view T961 Reflow Oven control panel T961 Reflow Oven interior view T961 Reflow Oven operation view T961 Reflow Oven detailed view
Small SMT Production Line
Small SMT production line setup
Warranty & Support
  • Complete machine warranty: 1 year from purchase date
  • Lifetime service support
  • Factory-direct spare parts supply
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sales service
  • Each machine 100% tested before shipping
