CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine

CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine
CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine

Large Image :  CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT48VB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5180
Packaging Details: Standard export wooden box
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 Per month

CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine

Description
Feeder: Letf: 29pcs; Right:29pcs (total 58pcs) Placement Head: 2pcs
Nozzles: 4 Nozzle (Juki) Speed: 3000cph With Vision; Without Vision 5000cph
Accuracy: 0.025mm System: Embedded Linux System
Type: All-in-one Machine, No Need External PC Suppport: Cut Tape, Batch Board, Custom IC Tray

CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine 0





CHMT48VB 58pcs Feeders (Double stack) Charmhigh Desktop Pick and Place Machine

Advanced Pick and Place Machine​ 110v 220V English Version CE Passed

Very suitable for small batch production & prototyping!



Description:

This CHMT48VB is an update version of CHMT48VA, which included dual side feeders with total 58pcs (left 29pcs + right 29pcs). It is all-in-one machine, no need purchase any other parts, machine ready for work after you received.

The operation system is the same as CHMT48VA and it can install more different kinds of materials, using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.

Suitable for for prototype builders, hobbyists, developers, and development groups and small factories batches production.

HS code for pick and place machine: 8479896200



CHMT48VB Working video from customer:

www.youtube.com/watch?v=qu-O6umaNHE

www.youtube.com/watch?v=xF7N4crTOtQ (Sweden)

www.youtube.com/watch?v=wYl5Az9xgec (China)

CHMT48VB placing IC:
www.youtube.com/watch?v=I-g8x98jmz0



Specifications of Charmhigh CHMT48VB:

Model CHM-T48VB
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 420*460mm
Z axis moving range 15mm
Placement heads 2pcs
Feeders

Left 29pcs + right 29pcs
8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs,
Front IC stack=14pcs, custom IC tray, cut tape

Vision system Dual cameras (up & down cameras)
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, prevent nozzles breaking
Pull pin self-return Yes
Leakage of material detection method Vacuum detection, vision detection
Touch screen 7”industry touch screen (USB mouse supprted)
Main board Independent research industry main board
System Embedded Linux system
Mounting speed 4000cph (vision off); 3000cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM)
Machine dimension L 960mm* W 705mm* H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC No need external PC
Voltage 220V (110V), 50Hz/60hz
Net weight 68kg
Gross weight 82kg / 118*80*52cm / 0.49m³



Competitive Advantage:

1. Convenient software, Embedded Linux System of the machine, stable industry main board, independent operation, no need external computer, operation easier and more convenient, learn fast.
2. In-build touch screen, no need external monitor, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two vision cameras, correct the position of each components, you can view the vision image from screen for every components.(max component size 22*22mm)

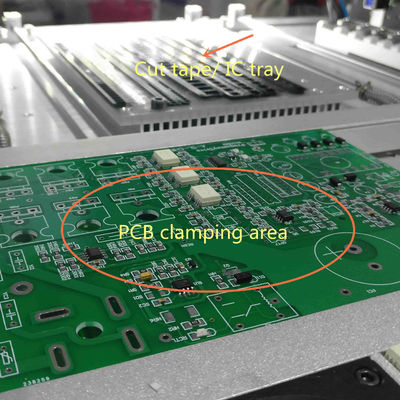

4. It has flexible PCB clamping fixture, suitable for different size of PCB.
5. It supported custom IC tray, IC tray can be fixed on machine table.
6. Two mounting heads with 2pcs Juki Nozzles, Juki nozzle inside magnet, so it can be removed by finger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
7. All-in-one machine, 29pcs feeders included in machine, no need to buy other parts, machine is ready to work.
8. Z axis detection, machine's pull needle automatically return to origin to avoid nozzles broken.

9. Max height component support 5mm.
10. Closed-loop control, X,Y Axis with encoder, not out of step.
11. PCB calibrated by two components position, then rest components will be calibrated automatically.
12. With vacuum detection, with automatic feeding, if one component suck crooked, it will automatically throw it to deposit area, then pick a new one to mount again.

13. With vision detection, camera will auto correction component angle and place on PCB board right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop, after supply material, then continue working, no need to start over again.

14. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
15. Support panelized boards.
16. If you don't have PCB file, you can create a new work file to program in machine directly.

17. Support single step.

18. Support cut tapes/ bulk material/ tube material.

Why choose Charmhigh?
1.Professional desgin and room saved.
2.User friendly operation, no need professional SMT engineer, entry-level device
3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
4.High accuracy and reliability,make up the defection of manual work
5.Cost efficient, reduce expense to own a professional automatic SMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment.

8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.

9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.

10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.


Standard Accessories for CHMT48VB:

1) Pick and Place Machine CHMT48VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Pull needle 2
6) Coil for pull pin1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1
14) English user manual 1



100% Real photos:

CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine 1



100% real feedback from customers, best sell model CHMT48VB:

CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine 2

 CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine 3


PCB Samples:

CHMT48VB 58pcs Feeders All In One Machine Charmhigh Desktop Pick And Place Machine Small SMT Machine 4



Kinly note:

The pick and place machine is complete set with all accessories included in the package, QC passed.

It is all-in-one machine, ready to use!

You can use it when you receive it. Good after-sale tech support, please purchase it with confidence.

Enjoy with your pick and place machine!



Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.



Provide one to one after-sale service. Each machine 100% tested well before ship out.
