Full-automatic 6 Heads 60 Feeders SMT Pick and Place Machine TM06 CPK≥1.0

Top Configration high precision Charmhigh 6 Heads 60 feeders SMT Pick and Place Machine TM06

Full automatci In-line SMT Pick and place Machine with PCB conveyor
PCB assembly line, good for mass production, full-automatic medium SMT assemblly line

1. Model number: TM06
2. Brand: Charmhigh
3. Main configuration: Automatic 3 pieces PCB auto delivery + 6 Heads 60 feeders + Panasonic servo motor
    + auto nozzle changer(19 positions) + 9 cameras + THK Grinding screw + double Y axis
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (2 options): 450*350mm / 900*350mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005, 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
8. Dimension: 1320mm(L)×1600mm(W)×1500mm(H), AC220V/110V (50/60Hz, 1 phase)
9. Lead time: 4-6 working days
10. Delivery: by air / by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box

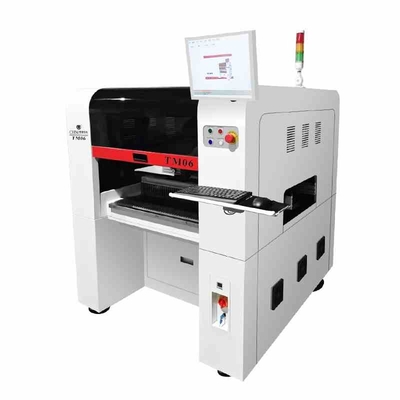

This is TM06, a high-end pick and place machine of Charmhigh.
It is characterized by 60 feeder stacks, good compatibility with NXT electric feeders and stick feeders which could support tubular components.
6 heads capable of mounting simultaneously and changing suction nozzles automatically, three-section automatic conveyor belt, high speed motion control system and vision technology applied to take photos of moving components independently researched and developed by Charmhigh itself.
If you need a high configuration pick and place machine with reasonable price for the medium to large sized setups, TM06 is a best choice.

TM06 specification:


Real pictures for TM06:

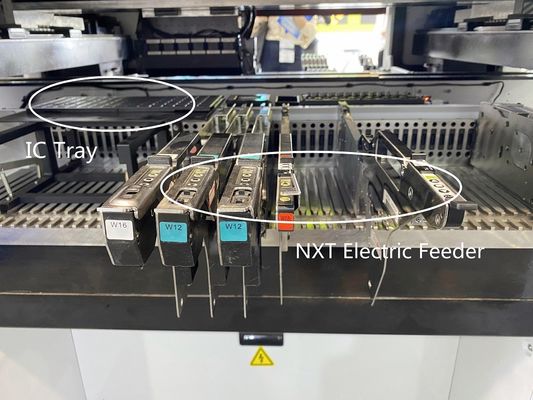

60 feeder slots (Work with Fuji NXT electric feeder, feeders purcahse separately, 8/12/16/24/32/44mm):

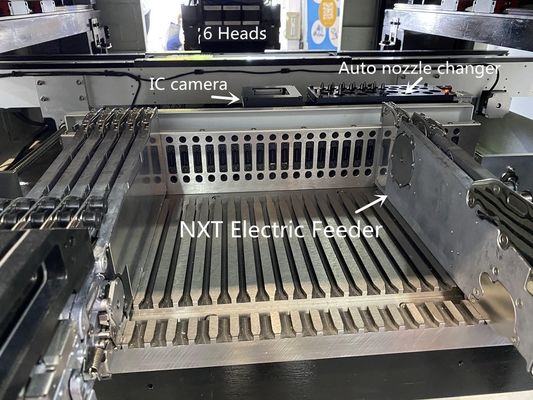

6 heads with automatic nozzle change, one big high precision IC camera, two mark cameras,

6 flying cameras for normal components. 3 pieces automatic PCB conveyor.


Double Y axis with double servo motor, more stable and higher precision.


PCB Samples:
(We also use our own full-automatic SMT line to produce the PCB for the parts of our machines)

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
