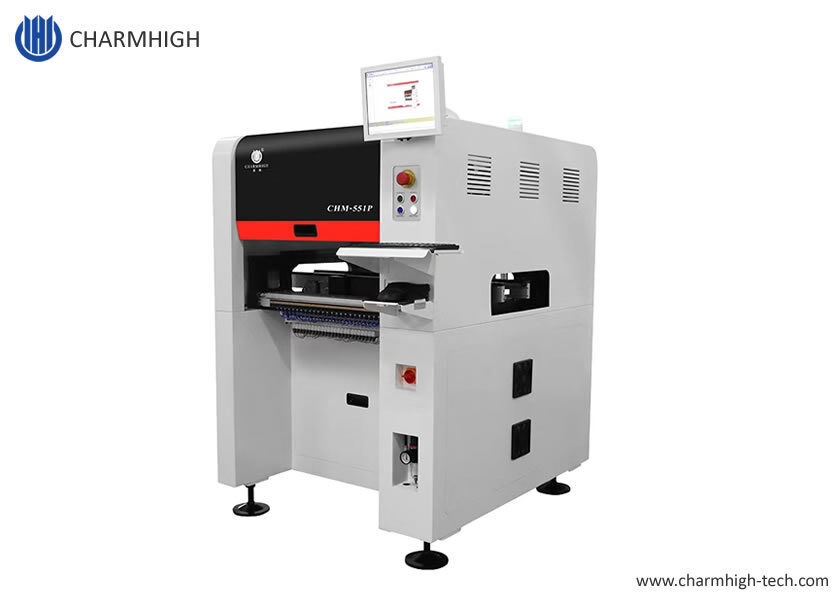

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine

Large Image :  Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHM-551P
Document: Charmhigh CHM-551P - Catalo...og.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $9000
Packaging Details: wooden box
Delivery Time: 2-3 days
Payment Terms: T/T,Western Union
Supply Ability: 30 Per month
Contact Now

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine

Description
Max PCB Size: 350mm(L)x280mm(W) (Standard) Feeder: 50pcs Yamaha Feeders (pneumatic & Electric Feeder)
Operation System: Linux System Fiducial Calibration: Auto Calibrate Mark Point
Component Height: 12mm Mounting Speed: 14400cph
Net Weight: 310kg Nozzle: Auto Nozzle Changer With 13pcs Nozzle Library
Dimension: 1020mm(L)x1180mm(W)x1450mm(H) Mounting Accuracy: (XY) ±0.035mm CPK≥1.0

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
Product Overview

Upgrade CHM-551P 4-head SMT pick and place machine by Charmhigh (updated from CHM-551)

Higher speed 14400 CPH, higher precision 0201~30*30mm area, cast-iron frame with high stability. Very stable with high precision, 0201 perfect mass production, the best 4 heads model in China.

Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot. CHM-551P SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly, small batch production.

Updated Features Compared with CHM-551
  • Higher speed, from 11500CPH to 14400CPH
  • Cast-iron frame, higher rigidity
  • Sleek design, beautiful appearance
CHM-551P Specifications
Dimensions 1020mm(L) x 1180mm(W) x 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4 heads
Mounting Speed 14400CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system, equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2

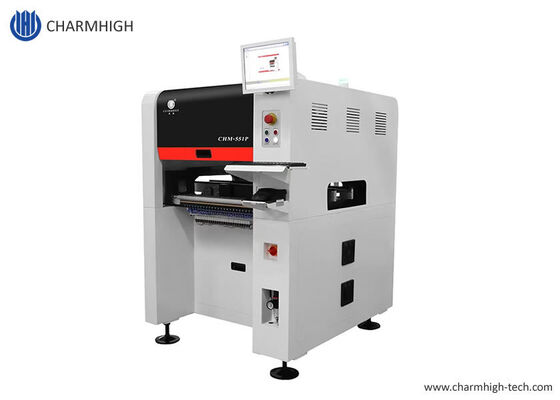

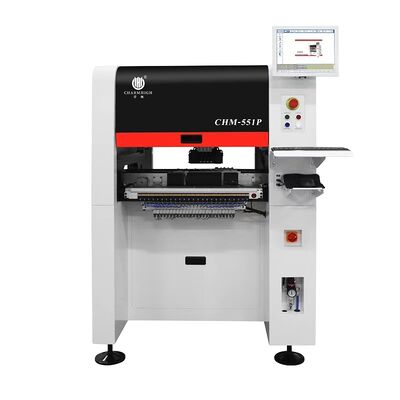

Product Images
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 0 Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 1

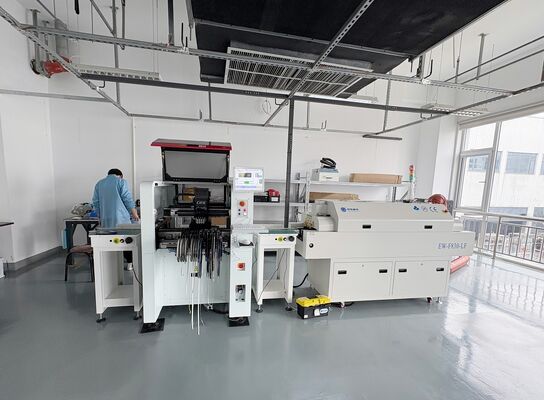

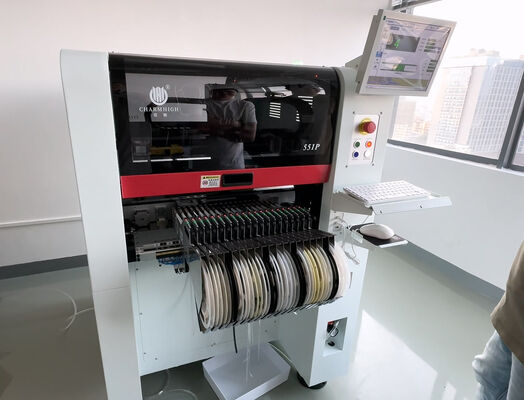

Customer Site
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 2 Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 3 Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 4 Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 5

Charmhigh SMT, factory supply, prompt delivery.

Charmhigh, top Chinese brand.

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 6
CHM-551P Parts List
Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 7
Recommended SMT Production Line
  1. 3250 solder paste printer
  2. CHM-551P SMD pick and place robot
  3. CHM-830F reflow oven
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine 8

Please note: The pick and place machine is complete set with all accessories included in the package, machine ready to use! The only thing you need to prepare is an external air compressor (supplying air for feeders and ANC). Please purchase this machine with confidence. Enjoy with your pick and place machine!

Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.

Technical Support

Kimi Liu: Mob/ WhatsApp: +8613510675756

E-mail: kimi@charmhigh-tech.com

Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos

If you want to know more information, please contact us by E-mail. We will response you at the first time.
