Product Details:
|
| Stencil Printer: | 3040 High Precision Printer Manual Type | CHM-550: | 4 Heads 50 Feeders With Auto Change Nozzle |
|---|---|---|---|
| T961: | Conveyor Reflow Oven, 6 Temperature Zones | SMT Line: | High Configuration Type |
| Highlight: | 3040 SMT Chip Mounter,CHM-550 SMT Chip Mounter,CHM-550 SMT Production Line |
||

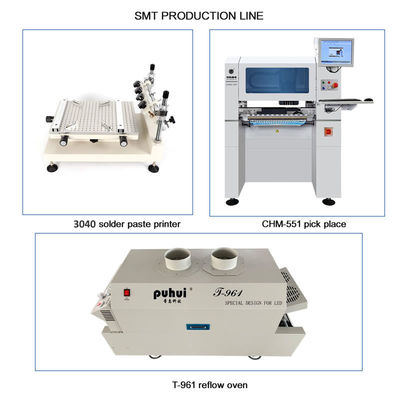

High Precision Small SMT Production Line:
3040 Stencil Printer, CHM-551 Desktop SMT Chip Mounter, Reflow Oven T961
For small batch production, PCB assembly, economic SMT solutions
Good for start-up business, university education, researching...
High configuration, min component 0201 supported, (XY)±0.06mm; CPK≥1.0
1. Stencil Printer 3040 Technical Parameters
| Type: | Manual |
| G.W: | 23kg |
| Maximum print Area: | 250*400mm |
| Packing size: | L 66cm*W 50cm*H 28cm |
2. CHM-551 Pick and place machine
| CHM-551 Specifications | |
| Dimensions | 1050mm(L) x1050mm(W) x 880mm(H) |
| Weight | 210kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal); IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |

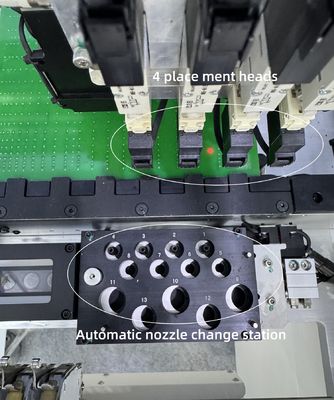

| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |
Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
3. T961 parameters:
| Model | T-961 |
| The heating zone quantity | upper3/down3 |
| The length of the heating zone | 730mm |
| The heating type | intelligent level sirocco and rapid infrared heating |
| The cooling zone quantity | 1 |
| Maximum width of PCB board | 230mm |
| The operation direction | left→right |
| Delivery options | Net transmission&chain transmission |
| The speed of conveyer belt | 0-290mm/min |
| The power supply | 220V 50/60Hz |
| Peak power | 3.5KW |
| Heating up time | Around 7mins |
| Temperature control range | Room temperature-300 |
| Temperature control mode | PID closed-loop control |
| Temperature control accuracy | ±1 |
| PCB temperature distribution deviation | ±2 |
| Overall dimensions | 1000×466×445mm |
| Machine weight | 70KG |
Detail photos:
Now CHM-550 updated to CHM-551, picture as below:
Picture from customer:
Manual stencil printer 3040, for double layer PCB:
T961 lead-free reflow oven, bigger heating size 730x230mm, for double layer PCB:
Best combination small SMT line, we recommend it! Please purcahse with confidence.
Charmhigh factory supply, with quality assurance.
Kindly note:
The CHM-551 smt pick and place machine only need to connect external air source which is prepared by yourself, no need other stuff.
The machine has passed QC passed before ship out.
We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
