Product Details:
|
| Tape Feeder: | 1- 58pcs | Place Head: | 2 Heads |
|---|---|---|---|
| Speed: | Vision On: 2800cph | Accuracy: | 0.025mm |
| Need External PC: | Yes, With Windows7/10 System | PCB Size: | 10*10mm~345mm(L)*360mm(W) |
| XYZ Axis Travel: | 400mm(X)*460mm(Y)*15mm(Z) | Highest Component: | 5mm |
| PCB Thickness: | 0.6~3.5mm | Type: | Maually |
| High Light: | 58pcs SMT Pick And Place Machine,Dual Side Desktop Smt Machine,PC Control Desktop Smt Machine |
||
Charmhigh (CHMT36VB) SMT Pick And Place Machine Ecnomic Model, updated from CHMT36VA
External PC control, windows system, dual side 58 feeders, double vision cameras,
Good accurate min component 0402, Place largest IC 22*22mm, English language, 220v 110v
CHMT36VB Description:

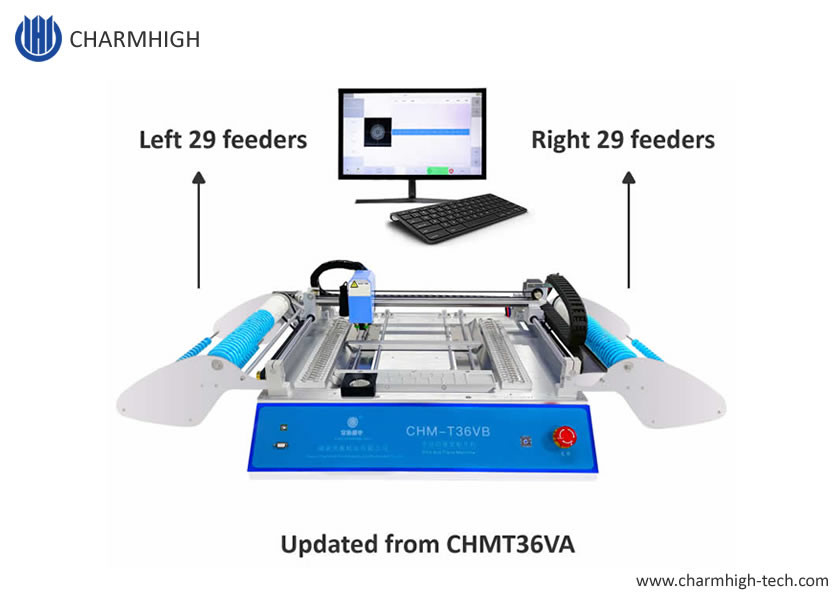

CHMT36VB is updated from chmt36va model which has one more side feeders, chmt36va has left side 29 feeders, chmt36vb has left+right feeders, total 58pcs. Many customers liked our chmt36va model and asking more feeders, so we researched updated model.
Customers use it to produce a variety of designs, 50 to 100pcs at a shot. It works very well for low-volume high-mix pick and place of 0402, 0603 based designs.
This allows the user to take in an Eagle BRD file and output the recipe file that the CHMT36VA expects. This cuts down on setup time of the machine dramatically.
Direct buy online from Aliexpress store:
https://www.aliexpress.com/store/1100483886
Direct buy from online store:
https://www.charmhigh-smt.com/
Specifications:
| Model | CHM-T36VB |
| PCB area | 10mm*10mm - 345mm*360mm |
| X Y axis Travel | 420*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders | 8mm=44pcs, 12mm=8pcs, 16mm=2pcs, 24mm=2pcs, |
| Vision system | Dual cameras(up & down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, it prevent nozzles breaking |
| Pull pin self-return | Yes |
| Leakage of material detection method | Vacuum detection, vision detection |
| Mounting speed | 4000cph (vision off); 2800cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN,QFP (tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L 1310mm * W 710mm * H 340mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | Yes (software compatible with windows7,windows10) |
| Voltage | 220V (110V),50Hz/60Hz |
| Net weight | 50kg |
| Gross weight | 80kg |
Standard Accessories for CHMT36VB (Need to prepare the external PC by yourself):
1) Pick and Place Machine CHMT36VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1 (sotware included in USB driver)
4) Power Cord 1
5) Pull needle 2
6) Solenoid for pull needle 1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1
14) English user manual 1
