Product Details:
|
| Max PCB Size: | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) | Feeder: | 50pcs Yamaha Feeder(pneumatic & Electric Feeder) |
|---|---|---|---|
| Operation System: | Windows (comes With PC And Keyboard Mouse) | Fiducial Calibration: | Auto Calibrate Mark Point |
| Component Height: | 12mm | Mounting Speed: | 11500CPH(optimal); IPC9850:8850cph |
| Net Weight: | 315kg | Nozzle: | Auto Nozzle Changer With 13pcs Nozzle Library |
| Dimension: | 980mm(L)x1050mm(W)x146mm(H) | Mounting Accuracy: | (XY) ±0.06mm CPK≥1.0 |
| High Light: | High Accuracy SMT Pick & Place Machine,4 Heads SMT Pick & Place Machine,Automatic Nozzle Change Pick Place Machine |
||

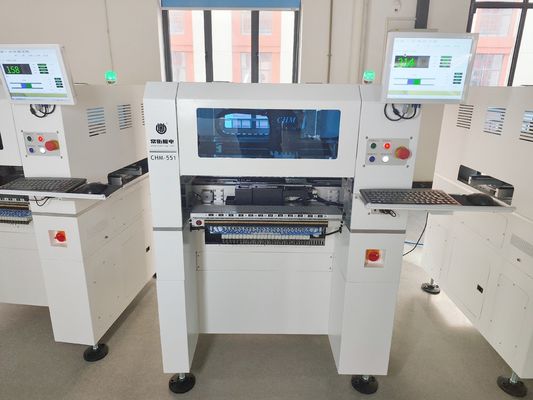

Full automatic Charmhigh CHM-551 (with base) 4 heads SMT pick and place machine 50 feeders 4 heads
High accuracy, high configuration, room saved. Genius model. (with Auto Nozzle Change)
Very good for small batch production with high stability. 0201 supported. CPK Test support.
Economic solution for SMT assembly, good for start-up business.
CHM-551 SMT production line working video on Youtube:
https://www.youtube.com/watch?v=YyJ5VsLoH4k&t=1s
Machine features
1. Support CPK test
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic PCB conveying
5. Optimal speed:11500CPH; IPC9850:8850CPH
6. .……
For more machine features, please consult our account manager
| CHM-551 Specifications | |
| Dimensions | 980mm(L) x1050mm(W) x 880mm(H) |
| Weight | 315kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal) IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |
Highlight:
1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!
2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.
3. With PCB auto conveyor, built a small SMT production line, free your hands!
4. High configuration with smart software, longer lifespan, Charmhigh provide stronger mechanical part.
Main features:
4 heads, 50 feeder stacks, servo motor, PCB auto conveyor, ball screw,
thermal compensation, 19-hole automatic nozzle change, 0201, CPK test passed......
Charmhigh, top Chiense brand.
CHM-551 Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
