Product Details:
|
| Rated Power:: | 2960w | Soldering Max Area: | 350*370mm |
|---|---|---|---|
| Cycle Time: | 2-16 Mins | Max Temperature: | Room Temp~350°C |
| Operate Way: | Touch Screen | ||
| Highlight: | Lead-Free PCB Reflow Oven,BGA Reflow Soldering Machine,Infrared IC Heater Reflow Oven |
||

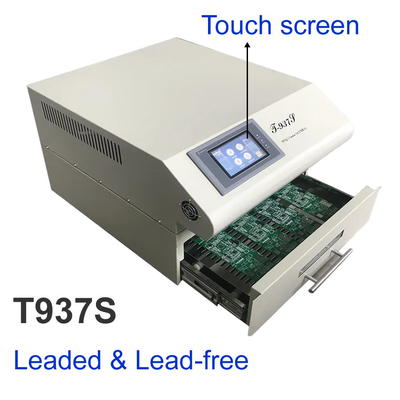

Surface mount PCB Reflow Oven BGA SMD SMT Reflow Soldering Machine T937S 2960W 350*370mm
Desktop High Temperature Mini Reflow Solder Oven Soldering Station, Infrared IC Heater, HD Touch Screen, For leaded and lead-free solder paste
Purchase link on Aliexpress store, purcahse easily:
https://www.aliexpress.us/item/3256804155446727.html?gatewayAdapt=glo2usa
| Operate way | Touch screen | |
| Model | T937S | |
| Drawer area | 350mm*370mm | |
| Soldering area | Lead Free Welding | 290mm*345mm |
| Lead Welding | 315mm*345mm | |
| Dimension | 438mm*535mm*290mm | |
| N.Weight | 20.7kg | |
| Voltage/Frequency | AC220~230V/50Hz | |
| AC110V/60Hz | ||
| Power rating | 2960W | |
| Cycle time | 2~16min | |
| Temp rage | Room temp~350°C | |
Installation :
◆ Please put this reflow oven on the flat tabletop,reserve space for drawer-pull &push.
◆ Avoid inflammable, explosive and other temperature sensitive articles nearby.
◆ Please leave 20mm space around the machine, for heat dissipation.
◆ Please connect the exhaust to the outdoor ventilation place or recovery device to avoid indoor pollution.
◆ Ensure the machine is grounded reliably.
Attention :
◆ Ensure the machine is grounded reliably.
◆ Please connect the exhaust pipe to the outdoor ventilation place or recovery device to avoid indoor pollution.
◆ The thermal insulation material of the machine has been strictly protected, it is not allowed to disassemble the machine without protection.
◆ You should reserve more than 10s time interval between last turning off and next turning on, It cannot be turned on / off continuously.
Packing list:
◆ 1 * T-937S Reflow oven Host.
◆ 1 * Fuse(220V:20A×1pc;110V:32A×1pc).
◆ 1 * Power Cable.
◆ 1 * User Manual
Below is new version T937S:
We also have:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
