E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size

E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size
E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size
E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size

Large Image :  E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: E6
Document: E6 - catalog.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $11600
Packaging Details: wooden box
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now

E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size

Description
Repeat Position Accuracy: ± 0.01mm Printing Speed / Cycle Time: 10 To 200mm/s
Max PCB Size: 600*350mm Min PCB Size: 50*50mm
Frame Size: 470(W) X 370(D) Mm ~ 736 X 736 Mm Squeegee Length: 220-500mm
Net Weight: 950 Dimension: 1482 X 1140 X 1535 Mm ( W X D X H )
Power Supply: 220VAC 50-60Hz 1700W Operating System: Windows 7
Highlight:

E6 SMT Solder Paste Printer

E6 Full-automatic Vision SMT Solder Paste Printer
High precision E6 fully automatic solder paste printer screen printing machine for SMT assembly line and production line with 600x350mm capacity.
Product Characteristics
  • Lifting stage driven by high-precision lead screws
  • Upper and lower stencil movement driven by high-precision silent lead screws
  • Automatic stencil cleaning device for worry-free operation
  • Advanced image learning MARK point system for easy PCB and stencil center position correction
  • Full-axis linkage reset technology for quick home position return
  • Quick and easy setup of changeover parameters for faster line changes
  • Multiple light source options for handling reference points on different colored PCB boards
  • User permission settings to prevent accidental modification of equipment parameters
Technical Specifications
Net frame size (outer frame)470(W)x370(D)mm～736x736mm
Circuit board size50x50mm~600(W)x350(D)mm
Operating systemWindows 7
Thickness of circuit board0.4~6mm
Printing speed10 to 200mm/s
Visual adjustment systemAutomatic (any shape)
Circuit board warpingMax PCB diagonal 1%
Type of scraperSteel scraper/rubber scraper Angle optional (45°/60)
XY axis adjustable size±10mm
Adjustable printing angle±2°
Positioning repetition±0.01mm
Transmission cycle time15s (not including printing and cleaning time)
Transmission height900±20mm
PCB positioning - Support modeMagnetic tube needle and vacuum adsorption
Printing modeSingle/double printing
Camera field of view8x6 mm
Visual reference pointAny reference point, welding pad, 0.5～3 mm
Power supply220VAC 50-60Hz 1700W
Air pressure supply4.5-6kg/m²
Weight950 kg
Transmission directionLeft in right out/right in left out/left in left out/right in left out/right in right out
Volume1482x1140x1535mm (WxDxH)
Product Images

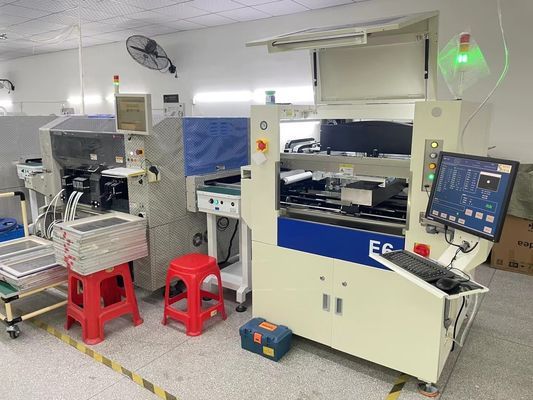

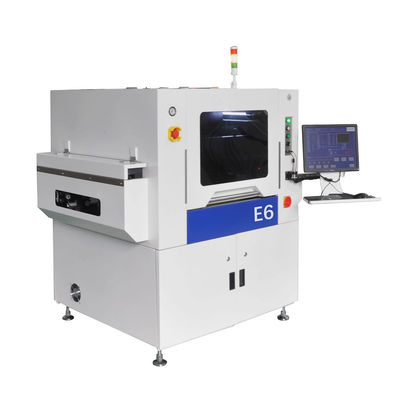

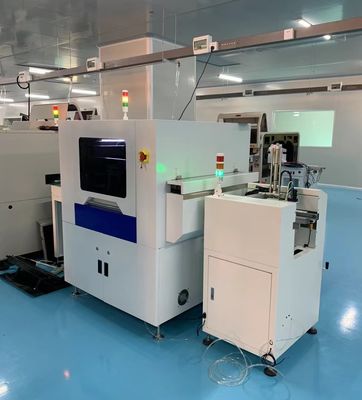

E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size 0 E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size 1 E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size 2 E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size 3 E6 Fully Automatic SMT Solder Paste Printer with ±0.01mm Repeat Position Accuracy and 600x350mm PCB Size 4
Service & Warranty
Complete machine has a warranty period of 1 year from purchase date with lifetime service. We provide factory-direct spare parts with guarantee, online Q/A and troubleshooting support, and technical advice service.
Each machine is 100% tested before shipping. We provide one-to-one after-sales service.
Technical Support
Kimi Liu
Mobile/WhatsApp: +86 135 106 75756
Email: kimi@charmhigh-tech.com
YouTube: www.youtube.com/kimiLiuCharmhigh
For more information, please contact us by email for immediate response.
