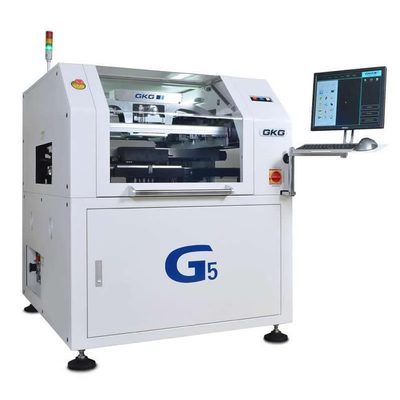

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing

Description
Repeat Position Accuracy: ±0.01mm Printing Accuracy: ±0.025mm
Printing Speed / Cycle Time: <7.5s (Exclude Printing & Cleaning); <19s(Included Printing & Cleaning) Max PCB Size: 400*340mm
Min PCB Size: 50*50mm PCB Thickness: 0.4~6mm
Camera Mechanic Range: 528*340mm Net Weight: 900kg
High Light:

Fully Automatic Solder Paste Printer

,

SMT Stencil Printer for Screen Printing

High Precision GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer Screen Printing Machine for SMT Assembly Line



Description

GKG G5 model is a classic model with high accuracy and high stability. G5 is high accuracy and high stability of the fully automatic printing machine vision, GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.



Charmhigh factory real production video:

https://www.youtube.com/watch?v=l04x5KHfyMQ



Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time/ Printing speed

<7.5s (Exclude Printing & Cleaning);

<19s(Included Printing & Cleaning)

Product Changeover

Old Process:<3mins

New Process set up :<5mins

Air supply 4-6kgf/cm²
Power supply AC:220±10%,50/60HZ,2.5KW
Control Method PC Control
Operating system Windows XP/Win7
Machine Dimensions 1146(L)*1364(W)*1404(H)mm
Weight Approx 900KG

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 0

Screen Frames Min size 370*370mm
Max size 737*737mm
Thickness 20-40mm(Steel mesh aluminum frame height)
PCB Max size 400*340mm
PCB Min size 50*50mm
PCB Thickness 0.4-6mm
PCB Warpage Max.PCB diagonal 1%
Transport Height 900±40mm
Transport Direction L-R/R-L/L-L/R-R
Transport Speed 1500mm/s(Max).Program Control
Transport Height One stage
Conveyor Width adjustment Automatic
I/O Interface SMEMA
PCB Location Support System Magnetic PIN/Support Block/Manual UP-Down table
  Clamping System Patented over the top clamping /side clamping
Print head Two independent motorised print heads
Squeegee Pressure 0.5-10KG(Program Control)
Print Speed 6-200mm/sec
Print Mode One/Twice Print
Squeegee Type Rubber/Steel Squeegee Blade(Angle 45°/55°/60°)
Cleaning System reinforced vacuum absorption,dry,dry,vacuum three modes
CCD FOV 8*6mm
Adjustment X:±3mm,Y:±7mm ,θ:±2°
Vision Look Up/Down Option Structure/CCD/Geometry Pattern-match

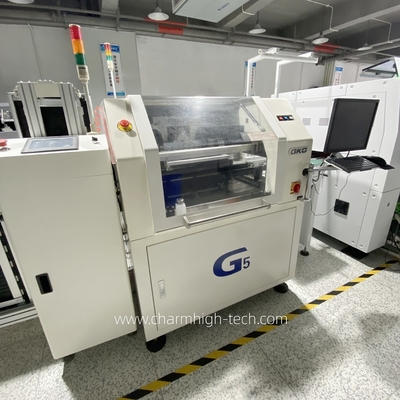

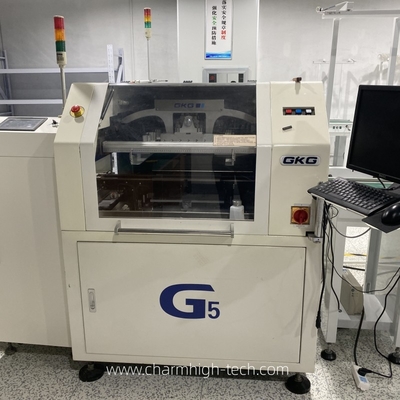

Full automatic SMT production line facotory site:

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 1



GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 2



GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 3

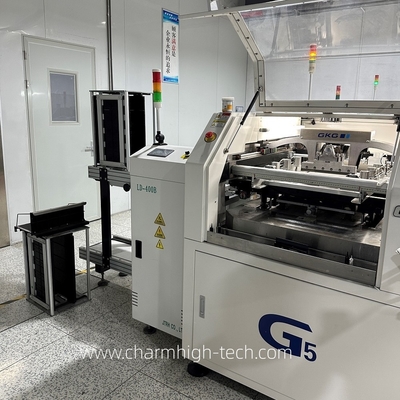

Charmhigh SMT factory production line, we produce PCB every day to ensure the machine's stability:

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 4

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 5



Charmhigh, top Chinese brand.

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 6

GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer For Screen Printing 7



Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.



We provide one to one after-sale service. Each machine 100% tested well before ship out.
