Product Details:
|
| Type: | 8, 12, 16, 24, 32, 44mm (wireless) | Condition: | Brand New |
|---|---|---|---|
| Usage: | Parts For Charmhigh Pick And Place Machine | Application: | SMT PCB Assembly Production Line, SMT Batch Production / Prototyping |
| Suitbale For: | Charmhigh CHM-551, CHM-650 | Precision: | High, Good Fpr 0201,0402 Small Components |

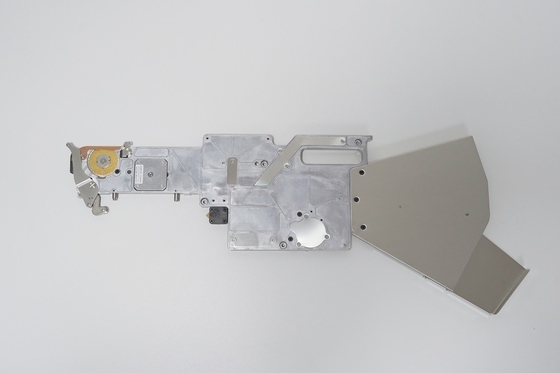

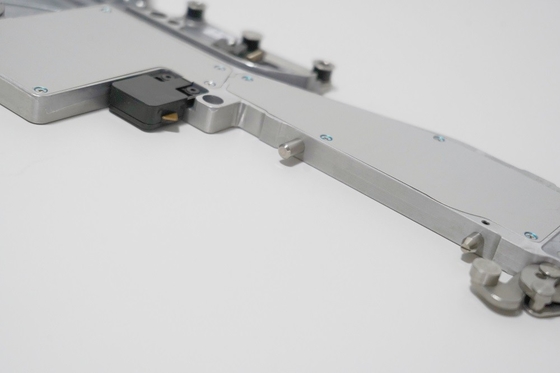

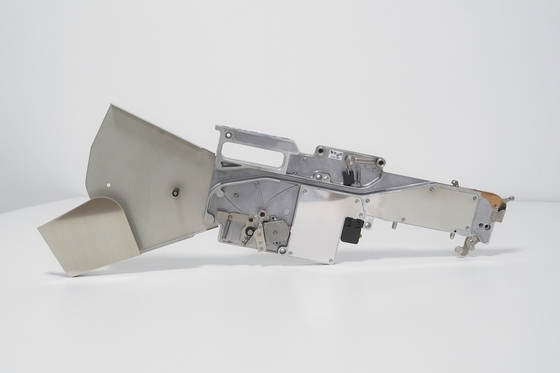

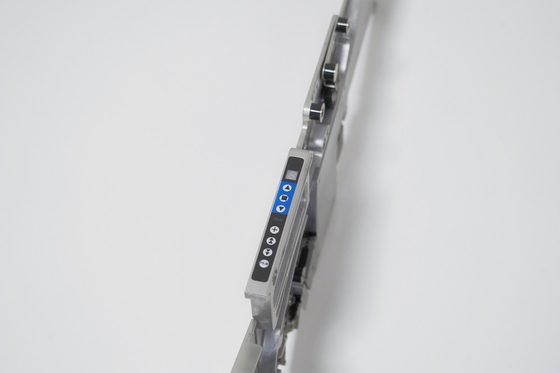

Touch Pot (Wireless) Yamaha Electric feeder for Charmhigh CHM-551 SMD Pick and Place Machine
Also For DIY SMT Pick and Place Machine
Description:
This Yamaha electric feeders suitable for Charmhigh CHM-551 and CHM-650, DIY pick and place machine.
Option: 8mm,12mm,16mm,24mm,32mm,44mm
Installation: Both can be installed on pick and place machine working together: (pneumatic + electric together)
Product Features:
- Excellent compatibility, adaptable to various working platforms and signal methods
- Stable feeding, low reject rate
- High speed
- Meets the demands of high-efficiency mounting
Operation:
Yamaha electric feeders utilize a stepper motor drive instead of pneumatic systems, providing a more stable and precise feeding mechanism.
This design enhances the accuracy and speed of component placement, making them ideal for high-precision tasks.
Component Compatibility:
These feeders support a variety of component sizes, typically ranging from 8mm to 44mm in width, and are suitable for handling very small components such as 0201 and 0402 packages.
Noise and Vibration:
Electric feeders operate with minimal noise and vibration compared to pneumatic systems, which is beneficial in maintaining a stable working environment and reducing potential damage to sensitive components.
Ease of Use:
The electric design simplifies installation and operation, often requiring less maintenance than pneumatic alternatives. The direct connection to the machine allows for straightforward setup.
Applications:
They are commonly used in SMT PCB assembly production lines and are compatible with various pick-and-place machines, including those from other manufacturers.
How to install the feeder on machine, video link as below: (the 37th second)
https://www.youtube.com/watch?v=Q1r9tB4SnTo&t=24s
Yamaha electric feeder installed on CHM-551 pick and place machine:
Compare: pneumatic feeder & electric feeder, electric feeder moving gentle and smoothy, good for small packages such as 0201, 0402:

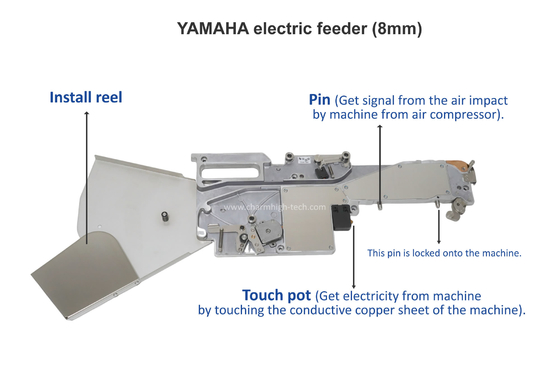

You can also DIY your pick and place machine by install the Conductive copper sheet like this:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
