Charmhigh CHM-551 High Configuration Small, High-Precision 4-Head Pick and Place Machine
Good for small batch production with high stability.
Unlock the future of electronics manufacturing with the CHM-551, a compact, high-precision 4-head SMT pick and place machine designed for small to medium batch production. Engineered by Charmhigh, this cutting-edge solution delivers exceptional accuracy, supporting components as small as 0201, QFN, BGA, and more, making it the ultimate choice for R&D, prototyping, and cost-effective PCB assembly.
Why Choose the CHM-551?
1. Superior Precision: Achieve flawless placement with a high-accuracy ball screw system and advanced vision cameras, ensuring perfect IC alignment and CPK≥1.0 compliance for reliable results.
2. High-Speed Performance: Boost productivity with an optimal speed of 11,500 CPH (IPC9850: 8,850 CPH), ideal for small batch runs without sacrificing quality.
3. Smart Automation: Features automatic nozzle change (13-set library), thermal compensation, and PCB auto-conveyor to streamline your workflow and free up valuable time.
4. Compact & Versatile: Space-saving desktop or vertical base options fit seamlessly into any workspace, supporting PCBs up to 400x300mm and 50 Yamaha feeders (pneumatic/electric).
5. Cost-Effective Innovation: Affordable without compromising quality, the CHM-551 is perfect for startups, labs, and businesses aiming to scale SMT production efficiently.
Key Features:
1. 4-Head Design: Simultaneously handles multiple components for faster assembly.
2. 0201 Capability: Tackles the smallest components with ease, ideal for modern electronics.
3. User-Friendly Software: Intuitive interface simplifies operation, no expert skills needed.
4. Robust Build: High-end configuration ensures durability and long-term performance.
5. Global Support: Backed by a 1-year warranty, lifetime service, and dedicated tech support from Charmhigh.
Perfect for:
-SMT Prototyping: Rapidly bring your designs to life with precision.
-Small Batch Production: Cost-efficient for startups and niche manufacturers.
-R&D Labs: Flexible and reliable for testing and innovation.
| CHM-551 Specifications |
| Dimensions |
1050mm(L) x1050mm(W) x 1360mm(H) |
| Weight |
310kg |
| Power Supply |
AC220V (50Hz,single phase) 1.5kw |
| Air Supply |
0.5MPa ~0.7MPa |
| Vacuum Generation |
vacuum pump |

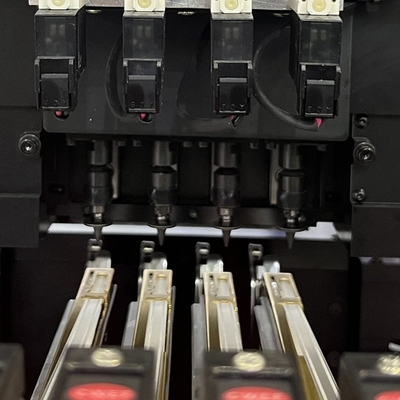

| Mounting Head Quantity |
4 heads |
| Mounting Speed |
11500CPH (optimal) ; IPC9850: 8850cph |
| Mounting Accuracy |
(XY)±0.06mm; CPK≥1.0 |
| Component Height |
12mm |
| Component Type |
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness |
0.6mm~3.5mm |
| PCB Size |
350mm(L)x270mm(W) (Standard);
600mm(L)x350mm(W) (Optional) |
| Nozzle Change |
Automatic nozzle change (13-hole nozzle library) |
| Control System |
Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse |

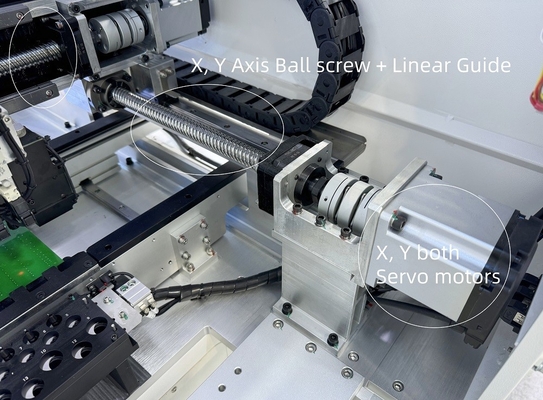

| Drive System |
X&Y axis driven by servo motors;
adopting flexible S-curve acceleration and deceleration
|
| Transmission System |
Ball screw + linear guide |
| Feeding System |
50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder) |

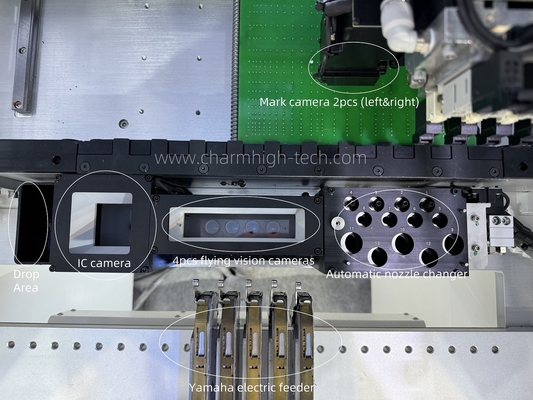

| Vision System |
Snapshot camerax4 (component size applicable: 14mm×14mm);
IC camerax1 (component size applicable: 25mm×25mm);
Mark camerax2 |
100% real pictures:

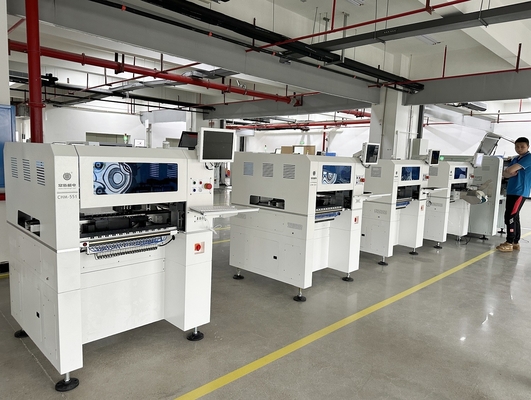

It has desktop version and vertical version two kinds, it can do full-automatic SMT production line:
PCB sample by customer:

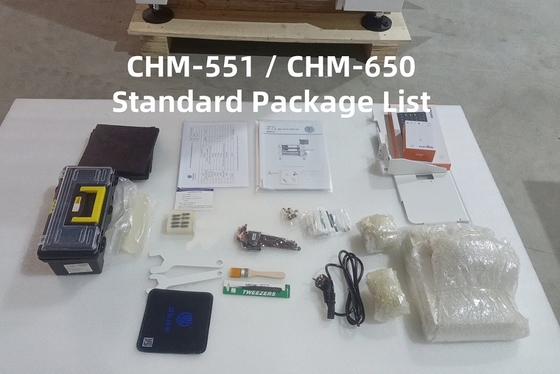

CHM-551 Parts List
| Item |
Quantity |
Item |
Quantity |
| Pick and place machine |
1 |
Tweezer |
1 |
| Nozzles |
8 |
Inner Hexagon Spanner |
1 |
| Tool box |
1 |
Lubricating oil |
1 |
| Warranty Card |
1 |
Filter |
4 |
| User Manual |
1 |
Quick connector |
1 |
| Test Report |
1 |
Mouse Pad |
1 |
| Brush |
1 |
Power Cable |
1 |
Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
