Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine

Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine

Large Image :  Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: RS10 (Magnetic Suspension)
Document: Charmhigh RS10.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $38000
Packaging Details: wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T,Western Union
Supply Ability: 30 per month
Contact Now

Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine

Description
Heads: 10 Heads (with 31pcs Nozzle Auto-change Position) PCB Size: 600(L)*400(W)mm (Standard)
Mounting Speed: Optimal Speed: 45000cph; Feeder: Support 100pcs NXT Electric Feeder
Component: 01005, 0201,0402,-5050, SOP, QFN,BGA... Maximum Component Height: 12mm
Camera: IC Camera: 1pcs (36X36mm); Flying Camera: 10pcs (16X16mm); MARK Camera: 2pcs PCB Delivery: 3 Pieces Auto Delivery With Rails, Width Can Be Adjusted By Software
Dimension: 1600 (L) * 1688 (W) * 1560 (H) Mm Power Supply: AC380V (50Hz, Three Phase) 4.5kw
Feeder Type: Fuji NXT Electric Feeder Motor: X Motor Servo Motor + Y Axis Double Linear Motors
PCB Thickness: 0.6-3.5mm Net Weight: 1930kg

Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Product Overview

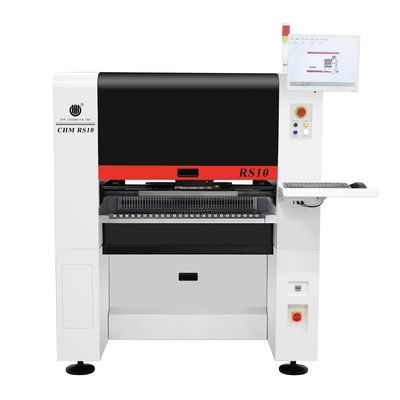

Charmhigh RS10 Magnetic Suspension Pick and Place Machine - Dual Linear Motor Drive

Designed for high-speed, high-precision large PCB assembly lines and PCBA manufacturing. Supports 01005 components.

Key Features
  • Optimal Speed: 45,000 CPH (under optimal conditions)
  • Mounting Accuracy: (XY)±0.035mm CPK≥1.0
  • Components Mounting Range: 01005 to 36mm×36mm and larger components
  • Optional features: Blue light scanning, lens mounting, 1.2m long PCB mounting production
Video Demonstrations

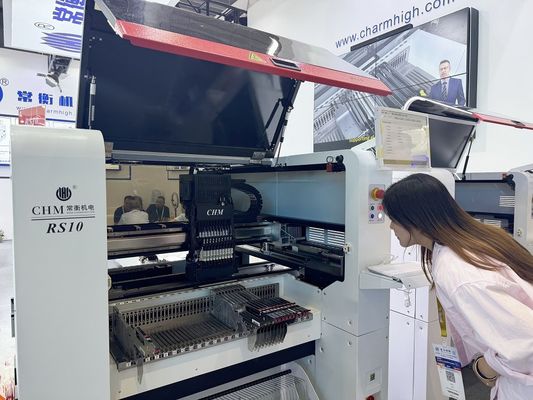

Real Working Video NEPCON Exhibition Show Workshop Production
Technical Specifications
Dimensions1600mm(L)×1688mm(W)×1560mm(H)
Weight1930kg
Power SupplyAC380V (50Hz, three phase), 4.5kW
Air Supply0.5MPa ~0.7MPa
Vacuum GenerationBuilt-in vacuum pump
Mounting Head Quantity10 heads
Mounting Speed45,000 CPH (optimal)
Mounting Accuracy(XY)±0.035mm CPK≥1.0
Component Height≤12mm
Component Type01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
Component RangeInch size 0201 to 36mm*36mm, and larger components
PCB Thickness0.6mm~3.5mm
PCB Size600mm(L)×400mm(W) (standard); 1200mm(L)×400mm(W) (optional)
PCB Conveying3-section-rail automatic conveying, PCB support
Nozzle ChangeAutomatic nozzle change (31-hole nozzle library)
Control SystemBuilt-in industrial computer (Windows 7) with monitor, keyboard, and mouse
Drive SystemX axis driven by servo motor, Y axis driven by dual linear motor
Transmission SystemX&Y axis with THK ground ball screw and THK mute linear guide
Feeding System100 NXT 8mm standard feeder stacks
Vision SystemFly camera×10, IC camera×1, Mark camera×2 with image stitching function
Machine Highlights
  • Y-axis Dual Linear Motor Drive
  • Support CPK Detection
  • Large-size Component Identification
  • ANC (Auto Nozzle Changer)
  • HD IC Vision System
  • Frame Structure with Grinding Industrial-grade Platform
  • Built-in Vacuum Pump + Solenoid Valve Structure
  • Automatic Thermal Compensation Correction System
  • PCB Support Device
  • Dual Mark Camera for Larger PCBs

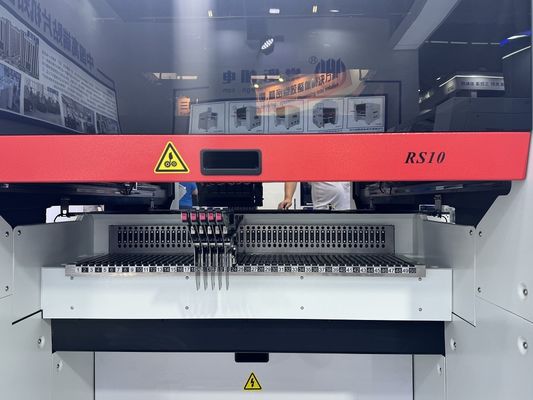

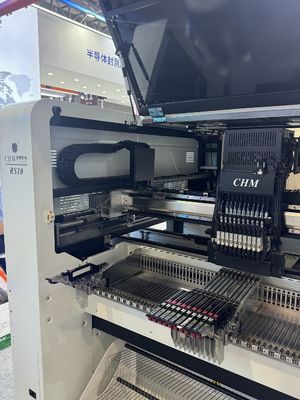

Product Images
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine 0 Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine 1 Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine 2 Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine 3 Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine 4 Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine 5
Service & Warranty: Complete machine has 1-year warranty from purchase date with lifetime service. Each machine is 100% tested before shipping.
Contact Information

Technical Support: Kimi

Mobile/WhatsApp: +8613510675756

Email: kimi@charmhigh-tech.com

Website: https://www.charmhigh-tech.com/

YouTube: Charmhigh Channel
