TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform
TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform

Large Image :  TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: TC06 (6 heads + 50 feeders)
Document: Charmhigh TC06 - Catalog.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $18000
Packaging Details: wooden box
Delivery Time: 5-7 working days
Payment Terms: T/T,Western Union
Supply Ability: 20 per month

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform

Description
Heads: 6pcs(with 19pcs Nozzle Auto-change Position) PCB Size: 350mm(L) * 300mm(W)
Speed: 27800 CPH (best Condition Under Our Company) Feeder: Support 50pcs NXT Electric Feeder
Component: 01005, 0201,0402,-5050, SOP, QFN,BGA To 36*36mm Larger Components Max Component Height: 12mm
Camera: IC Camera: 1pcs (36x36mm); Flying Camera: 6pcs (16x16mm); MARK Camera: 2pcs PCB Delivery: 3 Pieces Auto Delivery With Rails, Width Can Be Adjusted By Software
Dimension: 890mm(L)x1450mm(W)x1500mm(H) Power Supply: AC220V (50 Hz, Single Phase)
Feeder Type: Fuji NXT Electric Feeder Motor: Panasonic Servo Motor
PCB Thickness: 0.6-3.5mm Net Weight: 900kg

Cute but strong!

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform

Module SMT Pick and Place Machine 6 Heads 50 feeders, Support 01005 CPK>1.0

89cm width, suitable for most office doors and elevators!

PCB making machine, full-auto PCB assembly line, Chiense top brand Charmhigh


1. Model number: TC06
2. Brand: Charmhigh
3. Main configuration: Full automatic in-line + PCB auto delivery + 6 Heads 50 feeders  + (xy)+30μm, CPK>1.0 + X&Y axis driven by Panasonic servo motor + automatic nozzle changer + 9 cameras +  Ground screw & Linear Guides +
Thermal Compensation + Optimal speed: 27800CPH

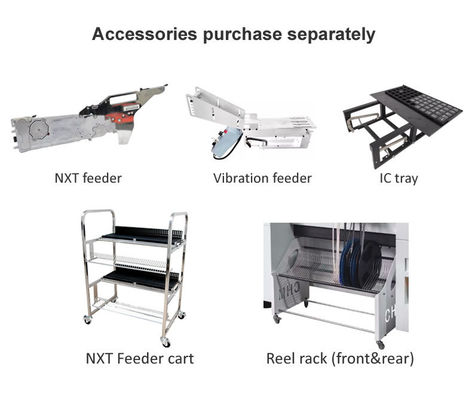

4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area:
350mm(L) * 300mm(W)

6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005/ 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/ BGA/ LED... to max 36*36mm IC
8. Dimension: 89
0 (L) * 1450 (W) * 1500 (H) mm, AC220V (50hz, single phase); Net weight: 900kg
9. Lead time: 5-7 working days
10. Delivery: by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box


Highlight:

1.Support CPK test

2.Supports IC Pin Recognition

3.Automatic Thermal Compensation

4.Automatic Nozzle Change

5.Narrow desgin 89cm width

6.Support 01005, max speed 27800CPH


Charmhigh YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos

TC06 working video, mounting 01005: https://www.youtube.com/watch?v=jmGMTdvt9FY

TC06+Yamaha YS12 working together: https://www.youtube.com/watch?v=x7ChkUV0HG4


Charmhigh TC06 parameters:

Dimensions
890mm(L)x1450mm(W)x1500mm(H)
Weight 900kg
Power Supply AC220V (50Hz, single phase), 3kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 6
Mounting Speed 27800cph (optimal)
Mounting Accuracy (xy)+30μm, CPK≥1.0
Component Height ≤12mm

Component Type &

Component Range

-Resistor capacitor exclusion, cylindrical diode, aluminum
capacitor, SOT, SOP, QFP, QFN, BGA, etc.

-Inch size 01005 to 36*36mm, and larger components mounting

PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x300mm(W)
PCB Conveying 3-section-rail automatic conveying, PCB support device
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System Built-in industrial computer (Windows system)
equipped with monitor, keyboard, and mouse
Drive System

X&Y axis driven by Panasonic servo motors

Transmission System Grounding screws + Linear guides
Feeding System 50 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder)
Vision System Fly camera x 6 (component size applicable: 16mmx16mm);
IC camera x 1 (component size applicable: 36mmx36mm);
Mark camera x 2


Part list:

Item Quantity Item Quantity
TC06 Pick and place machine 1 Lubricating oil 1
Nozzles 8 Filter 4
Tool box 1 Quick connector 1
Warranty Card 1 Mouse Pad 2
User Manual 1 Power Cable 2
Test Report 1 Keyboard 1
Brush 1 Mouse Pad 1
Tweezer 1 LCD 1

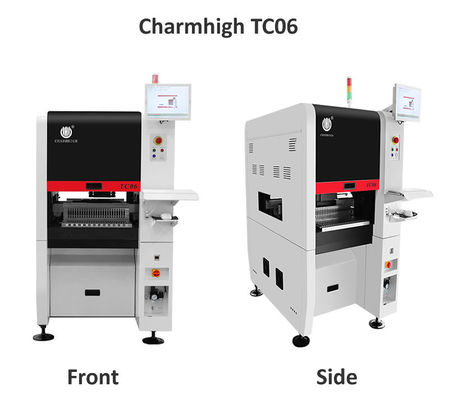

Charmhigh TC06, 6-head 50-feeder:

This pick and place machine is compact and adorable, yet incredibly powerful.

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 0

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 1


TC06 advantages:
-Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.
-ANC: Automatic nozzle change, nozzles can be automatically allocated according to components, making SMT production more intelligent and more efficient.
-High-precision universal mounting head: one machine can meet the mounting needs of various components with high stability
-Cast iron base structure, the pick and place machine runs smoothly at high speed, better than marble.
-The X&Y axis driven by Panasonic servo motor ensures the long-term stability and precision of the machine.

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 2


Charmhigh TC06: CPK detection passed, TC06: CPK≥1.0, Support 01005, high precision model.

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 3

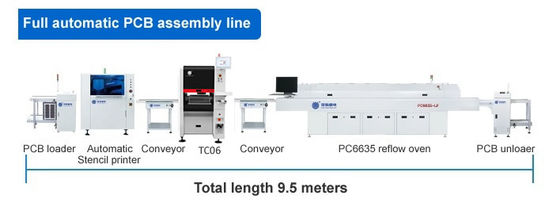

SMT production line recommendation:

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 4

Mounting samples:

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 5

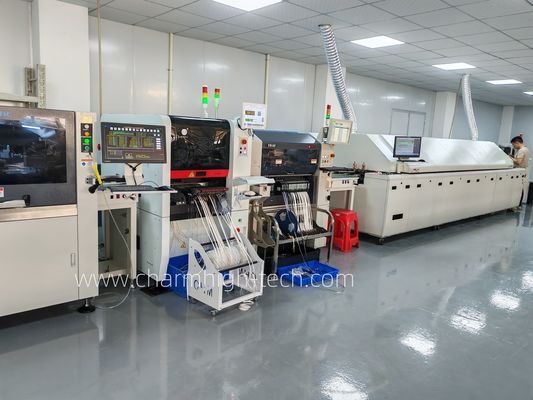

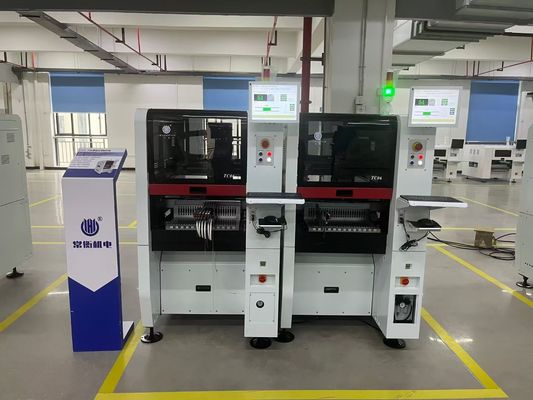

Charmhigh factory direct supply:

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 6


TC06 strong packing:

TC06 Narrow 6-Head High-Speed SMT Pick and Place Machine with Integrated Cast Iron Platform 7


Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.


We provide one to one after-sale service. Each machine 100% tested well before ship out.
