TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter

All Products

SMT Pick and Place Machine

(70)

SMT Production Line

(29)

Stencil Printer

(21)

SMT Reflow Oven

(32)

SMT Feeder

(21)

Small SMT Machine

(21)

SMD Pick and Place Machine

(19)

PCB Assembly Line

(8)

SMT Accessories

(8)

Wave Soldering Machine

(6)

PCB Loader Unloader

(3)

PCB Conveyor

(3)

Automated optical inspection (AOI)

(2)
Certification
China CHARMHIGH TECHNOLOGY LIMITED certification
China CHARMHIGH TECHNOLOGY LIMITED certification
Customer Reviews
Super quanlity, fast shipment. Special thanks to Kimi Liu, with the help of which everything went happliy! All the customer must love you for your support.

—— Claude Gatys - Poland

All 3 items arrived securely packaged,, within 1 hour I had the PnP machine placing parts. Easy to use and set up, accurate, fast. Tsop48 no problem.

—— Ben Grimmett - Australia

Exactly as described. Super fast shipping from the other side of planet! Machine is great so far in testing. Fantastic customer service. I will do business again with them.

—— Terry Torres- USA

This is an amazing machine that's very well designed and put together. Charmhigh representative was very responsive with good English.

—— Karl Walter - U.S.A

Don't fooled by the low cost of this machine, it is surprisingly well built, came excellent package. It runs fairly consistently.

—— Mark Janes - United Kingdom

Great product, fast shipping, easy communication.

—— Dian Kurniawan - Indonesia

Charmhigh provided very good service and answered every questions I had quickly and very helpful. I tested main functions, everything workds good.

—— Rajko Brenscheid - Germany

I'm Online Chat Now

TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter

TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter
TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter

Large Image :  TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: TS20 (20 heads + 100 feeders)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $56,800
Packaging Details: plywood case
Delivery Time: 6-8 working days
Payment Terms: T/T,Western Union
Supply Ability: 50 per month
Contact Now

TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter

Description

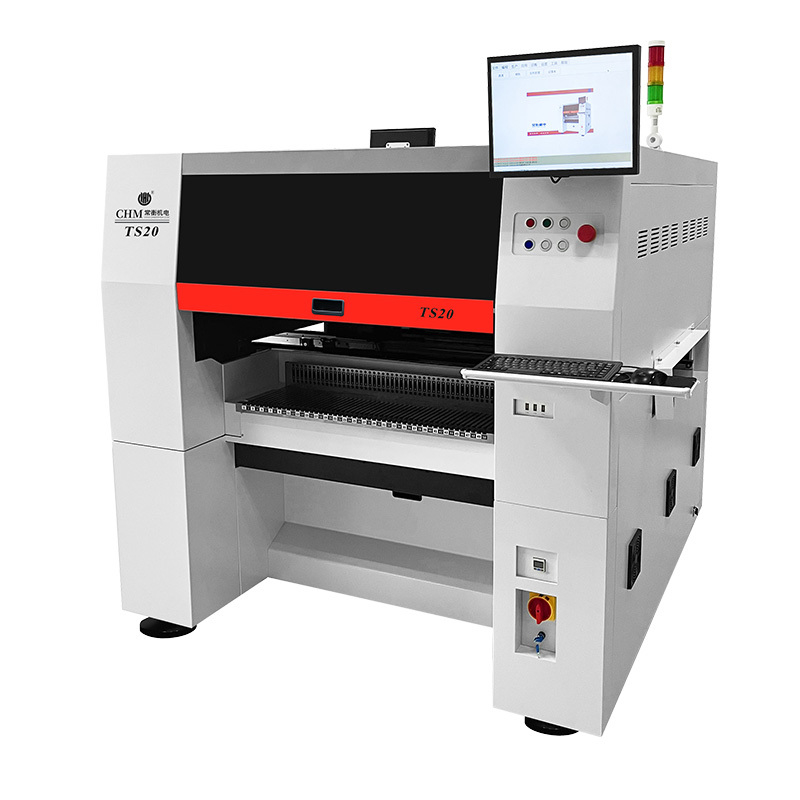

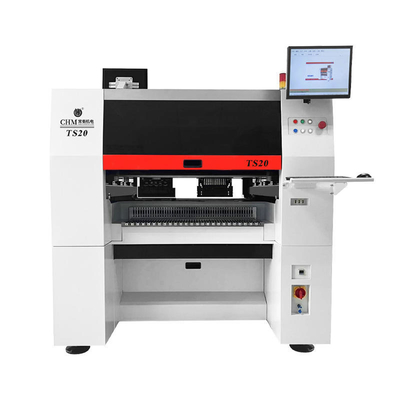

Dimension: 1600(L)x1688(W)x1560(H) Heads: 20-head (10-head* 2 Arms) ; With 31-hole Nozzle Library
PCB Size: Single-track Conveyor: 600*50-450mm; Dual-track Conveyor: 600*50-250mm Speed: 82000cph (optimal)
Feeder: Support 100pcs NXT Electric Feeders Mounting Accuracy: (XY)±40μm CPK≥1.0
Component: 01005, 0201,0402,-5050, SOP/QFP/QFN/BGA/LED.. Net Weight: 2000kg
Camera: Flying Camera: 10pcs*2 Arms (component Size 16*16mm); Mark Camera: 2pcs*2 Arms PCB Delivery: 3 Pieces Auto Delivery With Rails, Width Can Be Adjusted By Software
Power Supply: AC380V (50Hz, 3 Phase) 6KW Highest Component: 12mm
Highlight:

20-head SMT pick and place machine

,

high-speed SMT placement machine 27800cph

,

450mm PCB pick and place machine

TS20 20-head Automatic SMT Pick and Place Machine
Dual-arm Dual-lane High Speed High Precision Electronics Production Machinery
This advanced chip mounter for PCB assembly features smart software integration and full in-line compatibility for large SMT production lines.
Key Features
  • Thermal compensation system for consistent performance
  • Mounting range: 01005 (minimum) to 16mm*16mm (maximum)
  • Built-in vacuum pump for reliable component handling
  • Automatic nozzle change with 31-set nozzle library

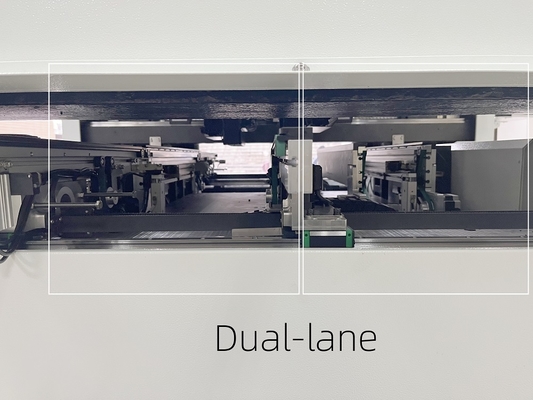

  • Dual lane shuttle conveyor for efficient production

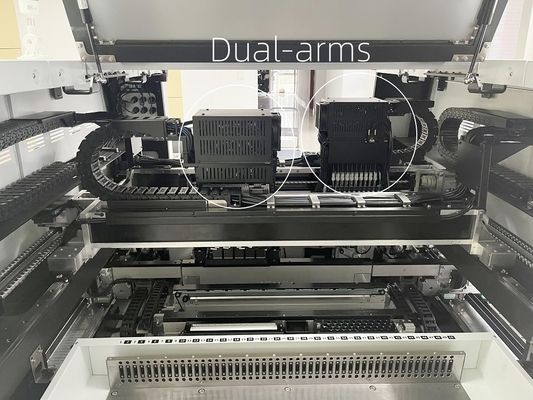

  • 10 head * 2 gantry configuration (front and rear arms)
  • 100 NXT 8mm feeder stack capacity
  • Y-axis gantry integral casting for enhanced stability
Technical Specifications
Parameter Specification
Dimensions 1600mm(L) * 1688mm(W) * 1560mm(H)
Weight 2000kg
Power Supply AC380V (50Hz, three phase), 6kW
Mounting Speed 82,000 CPH (optimal)
Mounting Accuracy (XY)±40μm CPK≥1.0
PCB Handling Single Lane: 600mm(L)*50-450mm(W)
Dual Lane: 600mm(L)*50-250mm(W)
Component Types Resistors, capacitors, diodes, SOT, SOP, QFP, QFN, BGA, etc.
Vision System Fly camera*10*2 gantry, Mark camera*2*2 gantry
TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter 0 TS20 20-head SMT Pick and Place Machine Dual-track High-speed Mounter 1
Industrial-Grade Construction

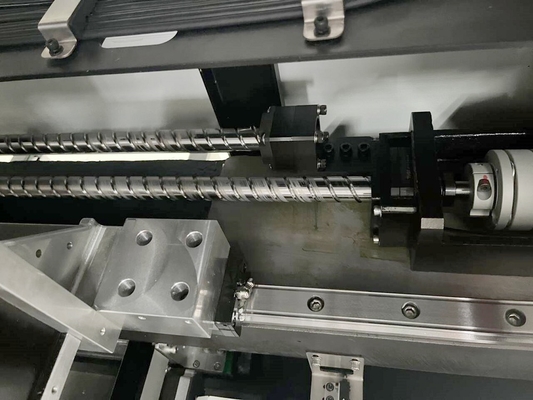

Our TM06, TM08, TS10, and TS20 series machines feature grinding industrial-grade platforms with Y-axis integral casting, ensuring stable and reliable operation under high-speed working conditions.
