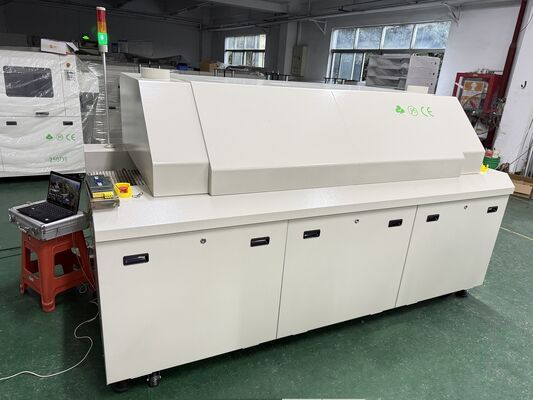

Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying

Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying

Large Image :  Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying

Product Details:
Contact Now

Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying

Description
Highlight:

6 Heating Zones IR Curing Oven

,

280°C Maximum Temperature Infrared Dryer

,

PID Temperature Control Industrial Curing Oven

Industrial IR Curing Oven CHM-250
High-performance infrared curing system designed for efficient drying of paints, coatings, and adhesives in industrial applications.
Key Features
  • Far-infrared heating technology for uniform curing
  • 6-zone top heating configuration with precise temperature control
  • Adjustable curing time from 0-15 minutes
  • Touch screen PLC control system for easy operation
  • Chain conveyor system with variable speed control
  • Natural air cooling and electric push rod cover opening
Technical Specifications
Heater & Control System
Heater Type Far-infrared Heater
Number of Heating Zones 6 zones (Top)
Zone Length 250mm
Warm-up Time 5 to 15 minutes
Temperature Control PID closed-loop with SSR driver
Temperature Uniformity 5°C
Curing Time 0-15 minutes (adjustable)
Control Type Touch Screen + PLC

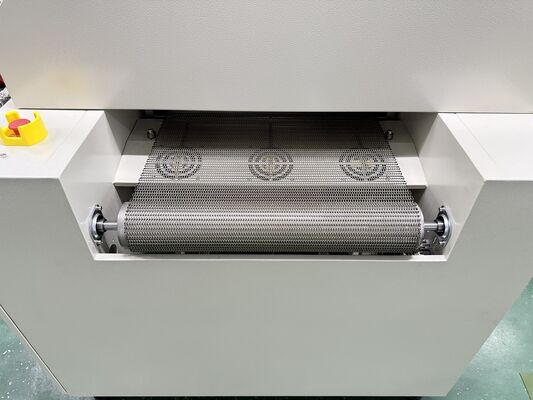

Conveyor System
Conveyor Type Chain
Conveyor Height 900+20 mm
Conveyor Speed 10-500mm/minute
Conveyor Direction Optional: Left-to-Right or Right-to-Left
Maximum Product Width 50-500 mm
Upper Clearance Height ≤100 mm
Lower Clearance Height ≤100 mm
Cooling Method Natural air cooling
Cover Opening Electric push rod
Exhaust Ports One at entrance, one at exit (2 ports total)
General Specifications
Overall Dimensions L3000*W1000*H1300 mm
Net Weight 1600KG
Power Supply 3-phase, 380V 50Hz
Maximum Temperature 280°C
Conveyor Speed Range 10-500mm/minute
Total Machine Power 32KW
Power Consumption 4-10KW/hour
Product Images
Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying 0 Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying 1 Industrial IR Curing Oven with 6 Heating Zones 280°C Max Temperature and PID Control for Paint Coating Adhesive Drying 2
