Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying

Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying

Large Image :  Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHM-2500
Document: CHM-2500 IR Curing Oven.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10,000
Packaging Details: Plywood box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 units per month
Contact Now

Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying

Description
Power: 3-phase,380V 50Hz Max Temperature: 280 Degree
Dimensions: L3000*W1000*H1300 Mm Net Weight: 1600kg
Number Of Heating Zones: 6 Zones (Top) Heater Type: Far-infrared Heater
Conveyor Type: Chain Heating Size: 2500*500mm
Highlight:

6 Heating Zones IR Curing Oven

,

280°C Maximum Temperature Infrared Dryer

,

PID Temperature Control Industrial Curing Oven

2500*500mm Industrial IR Curing Oven CHM-2500
Professional infrared curing system for paint, coating, and adhesive drying applications in industrial manufacturing environments.
Technical Specifications
Parameter Category Specification
Heater & Control System
Heater Type Far-infrared Heater
Number of Heating Zones 6 zones (Top)
Zone Length 2500mm
Warm-up Time 5 to 15 minutes
Temperature Control PID closed-loop with SSR driver
Temperature Uniformity 5°C
Curing Time 0-15 minutes (adjustable)
Control Type Touch Screen + PLC
Conveyor System
Conveyor Type Chain
Conveyor Height 900+20 mm
Conveyor Speed 10-500mm/minute
Conveyor Direction Optional: Left-to-Right or Right-to-Left
Maximum Product Width 50-500 mm
Upper Clearance Height ≤100 mm
Lower Clearance Height ≤100 mm
Cooling Method Natural air cooling
Cover Opening Electric push rod
Exhaust Ports One at entrance, one at exit (2 ports total)
General Machine Description
Overall Dimensions L3000*W1000*H1300 mm
Net Weight 1600KG
Power Supply 3-phase, 380V 50Hz
Maximum Temperature 280°C
Conveyor Speed Range 10-500mm/minute
Total Machine Power 32KW
Power Consumption 4-10KW/hour
Product Gallery

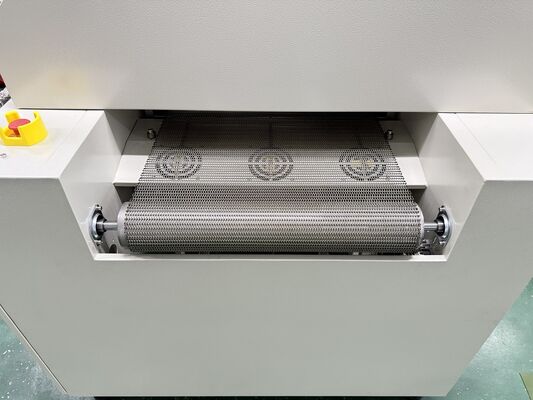

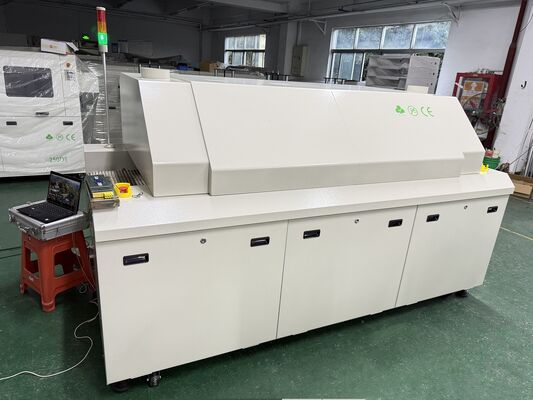

Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying 0 Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying 1 Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying 2
Thermal Performance Testing
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying 3
Service & Warranty
  • 12-month warranty on every machine
  • Lifetime spare-parts support from our own factory
  • Free online Q&A, troubleshooting and technical advice
  • One-to-one after-sales specialist assigned to each customer
  • Every unit is fully tested before it leaves our plant
Technical Support & Contact
Kimi Liu | Sales Engineer
Charmhigh Technology Ltd.
Mobile / WhatsApp: +86 135 106 757 56
Email: kimi@charmhigh-tech.com
Website: https://www.charmhigh-tech.com
YouTube Channel
Need more videos or technical data? Contact us via email for immediate assistance.
