Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering
Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Large Image :  Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: PC6635 (split-type)
Document: CHM-PC6635 reflow oven - In...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4800
Packaging Details: wooden box
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100 Per month
Contact Now

Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Description
Dimensions: L3500×W720×H1400 Heating Zone Quantity: Upper6/down6
Heating Area: 2200*350mm Heating Up Time: Around 15-20 Mins
Net Weight: 400kg Type: Lead-free
Highlight:

6 Heating Zones SMT Reflow Oven

,

2200*350mm Heating Area Reflow Soldering Machine

,

Modular Design Lead-free Reflow Oven

Split-Type Reflow Oven PC6635 Lead-free SMT Reflow Soldering Machine
Compact Modular Design for Space-Constrained Facilities
The PC6635 Modular Reflow Oven is a high-efficiency SMT reflow soldering solution featuring a segmented modular structure that enables easy transport, installation, and maintenance. The split-type design facilitates narrow doorway passage, making it ideal for factories with limited space or elevator access restrictions.
Key Features
  • 6 heating zones for precise temperature control and stable thermal profiles
  • Modular design allows flexible configuration and quick on-site assembly
  • Reduces installation time and logistics costs
  • Consistent soldering quality for various PCB assemblies
  • Compact footprint for space-saving operation
Technical Specifications
Parameter Specification
Model PC6635 (PC, up6+down6, 350mm width)
Heating Zones Up6 + Down6
Heating Length 2200mm
Cooling Zones 2
Max PCB Width Mesh width 350mm, Rail adjustable 250mm
Conveyor Direction L→R (R→L optional)
Conveyor Height Mesh 880±20mm
Transport System Mesh conveyor + Rail conveyor
Conveyor Speed 0-2000mm/min
Power Supply 5 wires 380V 50/60Hz
Startup Power 24KW
Operating Power Consumption Approx. 5-6KW
Control System Industrial PC + monitor
Warm-up Time Around 20 minutes
Temperature Range Room Temperature - 350℃
Temperature Control Industrial PC + Temperature module control, SSR Driver
Temperature Control Precision ±1℃
Temperature Distribution Error ±3℃
Trouble Alarms Abnormal temperature (ultra-high or ultra-low temperature after constant temperature)
Board Drop Alarm Optional
Net Weight Approx. 400kg
Dimensions (L×W×H) 3600×700×1430mm

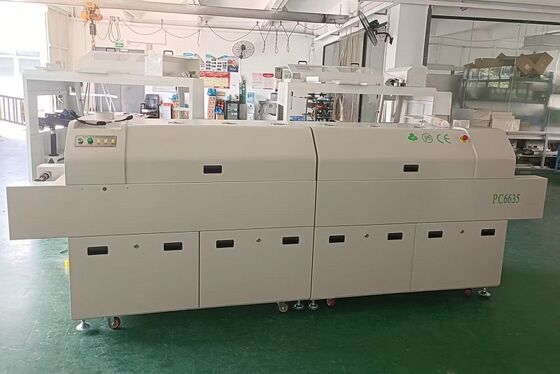

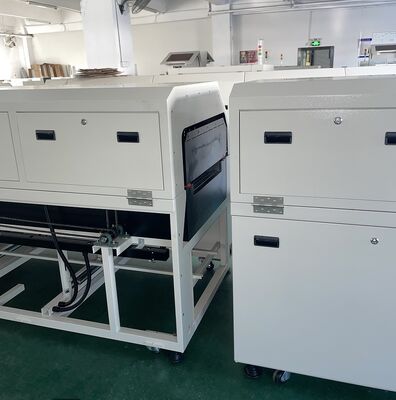

Product Images
Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering 0 Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering 1 Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering 2
Recommended SMT Assembly Line Configuration
  1. 3250 semi-auto solder paste printer
  2. PCB conveyor
  3. CHM-551P SMT pick and place machine
  4. PCB conveyor
  5. PC6635 reflow oven
Warranty & Support
The complete machine has a warranty period of 1 year from the time of purchase with lifetime service support.
  • Factory direct supply of spare parts
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
