Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Large Image : Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Product Details:

Place of Origin:	China
Brand Name:	Charmhigh
Certification:	CE
Model Number:	TC06
Document:	Charmhigh TC06 - Catalog.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$18000
Packaging Details:	export plywood box
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	50 per month

Contact Now

Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Description

Solder Paste Printer:	Semi-auto Stencil Printer 3250	Pick N Place Mahcine:	Charmhigh TC06 (6 Heads)
Reflow Oven:	6 Zones, Up6+down6	Other Machines:	SMT Conveyor 60cm

Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

Room-saved High-end 6-head SMT Pick and Place Machine TC06

CPK >1.0, support 01005, speed 27800cph, width 890mm narrow design

Product Overview

Charmhigh TC06 automated SMT pick and place machines are designed for fast, accurate PCB assembly. With a compact width of 890mm, it's designed to fit easily into standard elevators.

It's the perfect pick-and-place machine for startup companies. We strongly recommend it for precision mounting.

Technical Specifications

Dimensions	890mm(L) x 1450mm(W) x 1500mm(H)
Weight	900kg
Power Supply	AC220V (50Hz, single phase), 3kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	6
Mounting Speed	27800cph (optimal)
Mounting Accuracy	(xy)+30μm, CPK≥1.0
Component Height	≤12mm
Component Type & Range	Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. Inch size 01005 to 36*36mm, and larger components mounting
PCB Thickness	0.6mm~3.5mm
PCB Size	350mm(L) x 300mm(W)
PCB Conveying	3-section-rail automatic conveying, PCB support device
Nozzle Change	Automatic nozzle change (19-hole nozzle library)
Control System	Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by Panasonic servo motors
Transmission System	Grounding screws + Linear guides

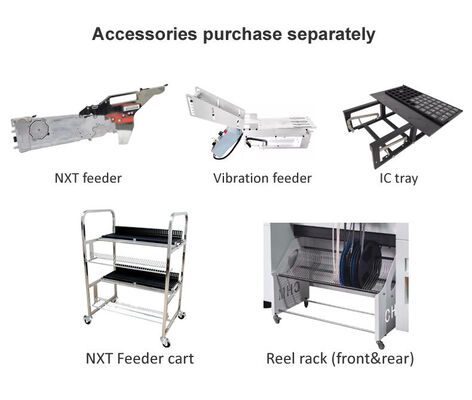

Feeding System	50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2

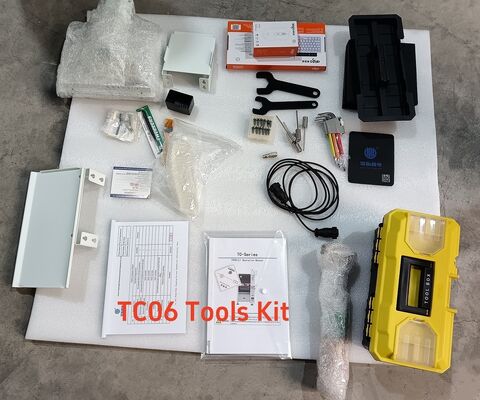

Standard Parts List

Item	Quantity	Item	Quantity
TC06 Pick and place machine	1	Lubricating oil	1
Nozzles	8	Filter	4
Tool box	1	Quick connector	1
Warranty Card	1	Mouse Pad	2
User Manual	1	Power Cable	2
Test Report	1	Keyboard	1
Brush	1	Mouse Pad	1
Tweezer	1	LCD	1

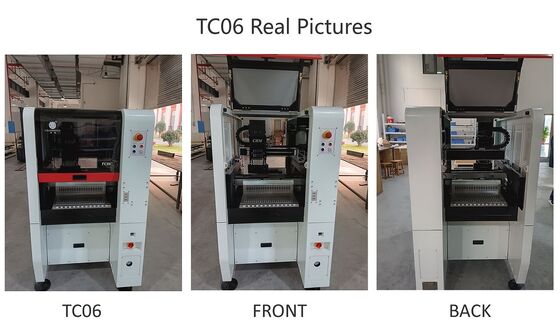

Product Images

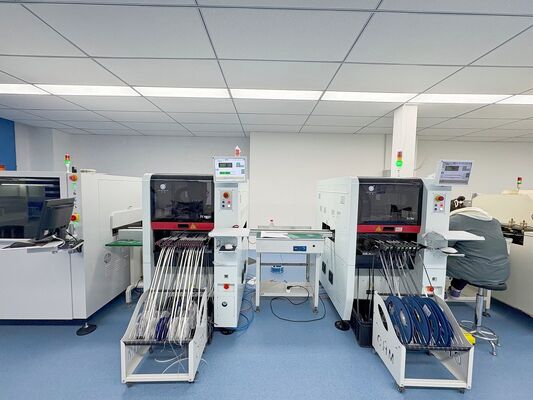

Customer Workshop

Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee
We provide online Q/A and troubleshooting support and technical advice service
We provide one to one after-sale service
Each machine 100% tested well before ship out

Technical Support

Kimi Liu: Mob & WhatsApp: +86 135 106 75756

E-mail: kimi@charmhigh-tech.com

If you want to know more information, please contact us by E-mail. We will respond to you at the first time.
