20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly
20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly 20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly 20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly

Large Image :  20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: RS20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $60,000
Packaging Details: wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T,Western Union
Supply Ability: 20 per month
Contact Now

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly

Description
Heads: 10* 2 Head (with Dual Arms, Dual Rails) PCB Size: 520mm(L) * 50-450mm(w) ; Dual-lane: 520mm(L) * 50-250mm(w)
Mounting Speed: Optimal Speed: 80,000 CPH Feeder: Support 100pcs NXT Electric Feeder
Component: 01005, 0201,0402,-5050, SOP, QFN,BGA... Maximum Component Height: 12mm
Dimension: 1400 (L) * 1890 (W) * 1550 (H) Mm Power Supply: AC380V (50Hz, Three Phase) 5kw
Feeder Type: Fuji NXT Electric Feeder Motor: X Motor Servo Motor + Y Axis Double Linear Motors
PCB Thickness: 0.6-3.5mm Net Weight: 2500kg

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly
Advanced Magnetic Suspension Pick and Place Machine

Charmhigh RS20 features dual-gantry dual linear motor drive for high-speed, high-precision large SMT production lines, PCB assembly lines, and PCBA manufacturing. Supports 01005 components.

Product Introduction

RS20 (20-head) high-precision, high-speed maglev Pick and Place Machine with dual arms and dual rails:

  • Optimal Speed: 82,000 CPH (under optimal conditions)
  • Mounting Accuracy: (XY)±0.035mm CPK≥1.0; minimum component 01005
  • Components Mounting Range: Inch size 01005 - 15mm×15mm size component
  • PCB Size: Single lane: 520mm(L) × 50-450mm(W); Dual-lane: 520mm(L) × 50-250mm(W)
Machine Features
  • Thermal Compensation
  • Mounting Range: Minimum 01005 / Maximum 15mm(L)×15mm(W)
  • Built-in Vacuum Pump
  • Automatic Nozzle Change (31 sets nozzle library)
  • Dual Lane Shuttle Conveyor
  • 10 head × 2 gantry (front and rear arms)
  • 100 NXT 8mm feeder stacks
Technical Specifications
Specification Details
Dimensions 1400mm(L)×1890mm(W)×1550mm(H)
Weight 2500kg
Power Supply AC380V (50Hz, three phase), 5kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in dual vacuum pump
Mounting Head Quantity 10 head×1 gantry (front and rear arms)
Mounting Speed 82,000 CPH (optimal)
Mounting Accuracy (XY)±0.035mm CPK≥1.0
Component Height ≤12mm
Component Type 01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
Component Range Inch size 01005 to 15mm×15mm, and larger components mounting
PCB Thickness 0.6mm~3.5mm
PCB Size Single lane 520mm(L)×50-450mm(W); Dual lane 520mm(L)×50-250mm(W)
PCB Conveying Built-in automatic transmission system
Nozzle Change Automatic nozzle change (31-hole nozzle library×2 gantry)
Control System Built-in industrial computer (Windows 7) with dual monitors, keyboard and mouse
Drive System Y-axis double linear motor X-axis Panasonic servo motor
Transmission System Y-axis THK linear guide, X-axis THK linear guide and lead screw
Feeding System 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System Fly camera:10×2 (component size applicable: 15mm×15mm); Mark camera:2×2 sets
Product Images

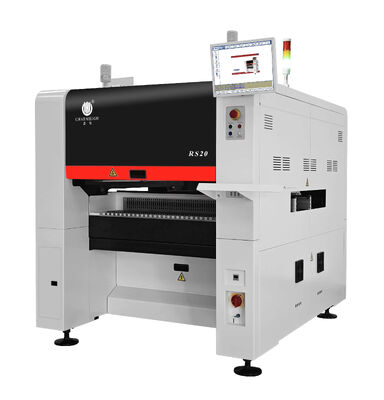

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly 0

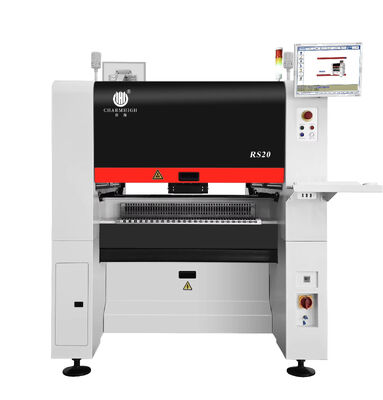

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly 1

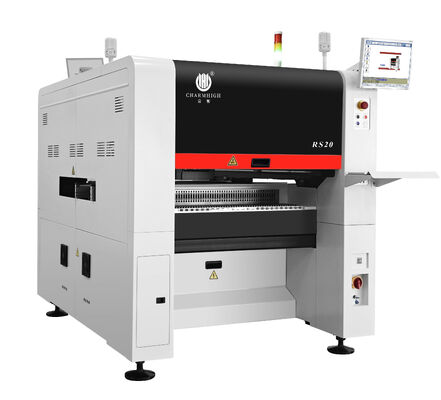

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly 2

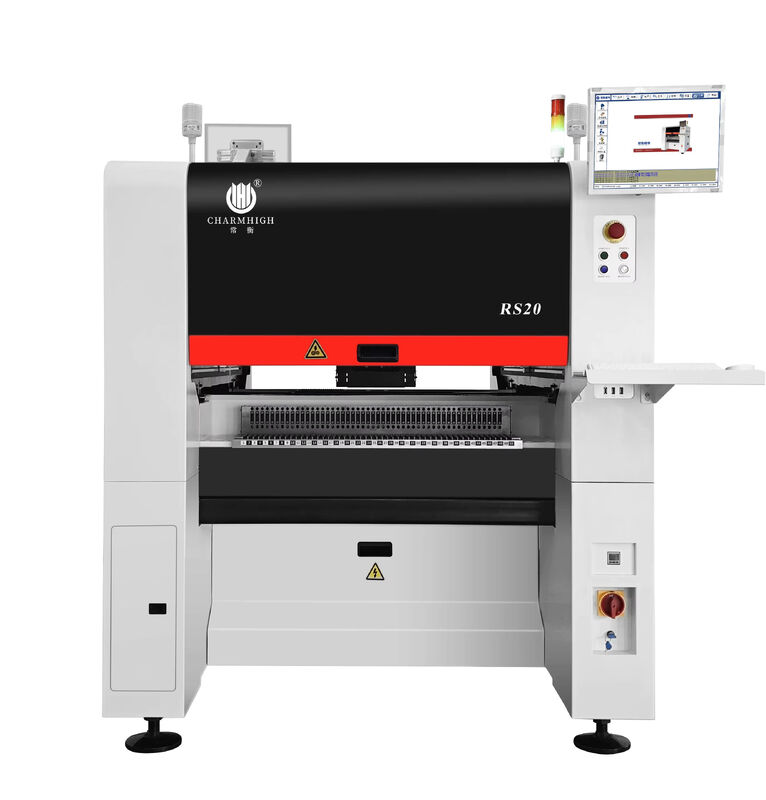

20-head RS20 Maglev Pick and Place Machine SMT Mounter PCB Assembly 3
Parts List
Item Quantity Item Quantity
RS20 Pick and Place Machine 1 Vacuum Cotton 20
Nozzles 40 Aviation Plug 2
Tool box 1 Quick connector 1
Warranty Card 1 Thimble 4
User Manual 1 Mouse Pad 1
Test Report 1 Rubber Damping Pad 4
Brush 1 Power Cable 1
Tweezer 1 Keyboard 1
Inner Hexagon Spanner 1 Mouse 1
Open-ended Wrench 2 LCD 1
Lubricating oil 1

Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

  • We always provide spare parts of machine, factory direct supply with guarantee
  • We provide online Q/A and troubleshooting support and technical advice service
  • We provide one to one after-sale service
  • Each machine 100% tested well before ship out
Technical Support
Contact: Kimi Liu
Mobile/WhatsApp: +86 135 106 75756
Email: kimi@charmhigh-tech.com
Official Website: https://www.charmhigh-tech.com/
YouTube Channel: https://www.youtube.com/@KimiLiuCharmhigh/videos

For more information, please contact us by email. We will respond to you at the first time.
