10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm

All Products

SMT Pick and Place Machine

(74)

SMT Production Line

(37)

Stencil Printer

(24)

SMT Reflow Oven

(35)

SMT Feeder

(21)

Small SMT Machine

(21)

SMD Pick and Place Machine

(19)

PCB Assembly Line

(8)

SMT Accessories

(10)

Wave Soldering Machine

(6)

PCB Loader Unloader

(5)

PCB Conveyor

(5)

Automated optical inspection (AOI)

(2)
Certification
China CHARMHIGH TECHNOLOGY LIMITED certification
China CHARMHIGH TECHNOLOGY LIMITED certification
Customer Reviews
Super quanlity, fast shipment. Special thanks to Kimi Liu, with the help of which everything went happliy! All the customer must love you for your support.

—— Claude Gatys - Poland

All 3 items arrived securely packaged,, within 1 hour I had the PnP machine placing parts. Easy to use and set up, accurate, fast. Tsop48 no problem.

—— Ben Grimmett - Australia

Exactly as described. Super fast shipping from the other side of planet! Machine is great so far in testing. Fantastic customer service. I will do business again with them.

—— Terry Torres- USA

This is an amazing machine that's very well designed and put together. Charmhigh representative was very responsive with good English.

—— Karl Walter - U.S.A

Don't fooled by the low cost of this machine, it is surprisingly well built, came excellent package. It runs fairly consistently.

—— Mark Janes - United Kingdom

Great product, fast shipping, easy communication.

—— Dian Kurniawan - Indonesia

Charmhigh provided very good service and answered every questions I had quickly and very helpful. I tested main functions, everything workds good.

—— Rajko Brenscheid - Germany

I'm Online Chat Now

10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm

10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm
10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm 10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm 10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm 10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm

Large Image :  10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHM-PC1050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15000
Packaging Details: plywood case
Delivery Time: 6-8 days
Payment Terms: T/T,Western Union
Supply Ability: 50 Per month
Contact Now

10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm

Description
Operation Power: 8-10KW Start-up Power: 82 KW (zoned Intelligent Startup: 32 KW)
Heating Zone Quantity: Up 10/ Bottom 10 Heating Area: 3940*500mm
Cooling Mode Forced: Air Cooling Warm-up Time: Around 15-20 Mins
With PC Control: Yes, With Industrial Computer Dimensions: L 5800*1350*1470 Mm
Net Weight: 2100KG Conveyor Mode: Mesh+ Rail
Highlight:

10-zone lead-free SMT reflow oven

,

SMT reflow soldering oven 3940x500mm

,

CHM-PC1050 reflow oven with warranty

10-zone Lead-free SMT Reflow Oven CHM-PC1050 Reflow Soldering 3940x500mm
CHM-PC1050 Full automatic rail large reflow oven + PC control 10 temperature zones (up10+down10)
Lead-free SMT Reflow Oven SMT soldering oven, heating size: 3940*500mm
PC1050 Big-Sized 10-zone Lead-Free SMT Reflow Soldering Oven
Parameter Specification
Model CHM-PC1050
Heating Part Parameters Heating Zones: Top 10 / Bottom 10
Heating Length: 3940 mm
Cooling Zones: 2
Conveyor Parameters Max. PCB Width: 500 mm (standard); customizable on request
Conveyor Direction: L → R (R → L optional)
Rail Adjust Range: 50 - 380 mm (customizable on request)
Conveyor Rail Fixing: Front or Rear
Conveyor Height: 900 ± 20 mm
Transport System: Mesh belt + rail drive
Conveyor Speed: 0 - 2000 mm/min
Control Parameters Power Supply: AC 5-wire, 3-phase, 380 V, 50/60 Hz (subject to technical agreement)
Startup Power: 82 kW (zoned intelligent startup: 32 kW)
Power Consumption (Normal Operation): Approx. 8 - 10 kW
Warm-up Time: Approx. 15 - 20 min
Temperature Control Range: Room Temperature - 400 °C
Temperature Control Method: Siemens temperature control module, closed-loop control, SSR drive
Temperature Control Precision: ± 1 °C
PCB Temperature Distribution Deviation: ± 2 °C
Machine Control Mode: Siemens PLC + Industrial PC (industrial-grade, stable and reliable)
Trouble Alarm: Temperature abnormality (over-high or over-low after reaching constant temperature)
Board Drop Alarm: Optional
Machine Size & Weight Weight: Approx. 2100 kg
Overall Dimensions (L × W × H): 5800 × 1350 × 1470 mm
Real Pictures for CHM-PC1050 (10-zone, 500mm width)

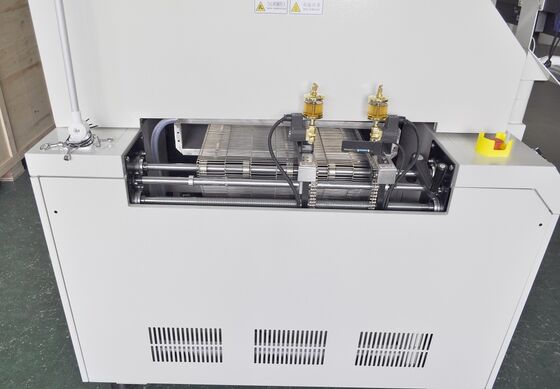

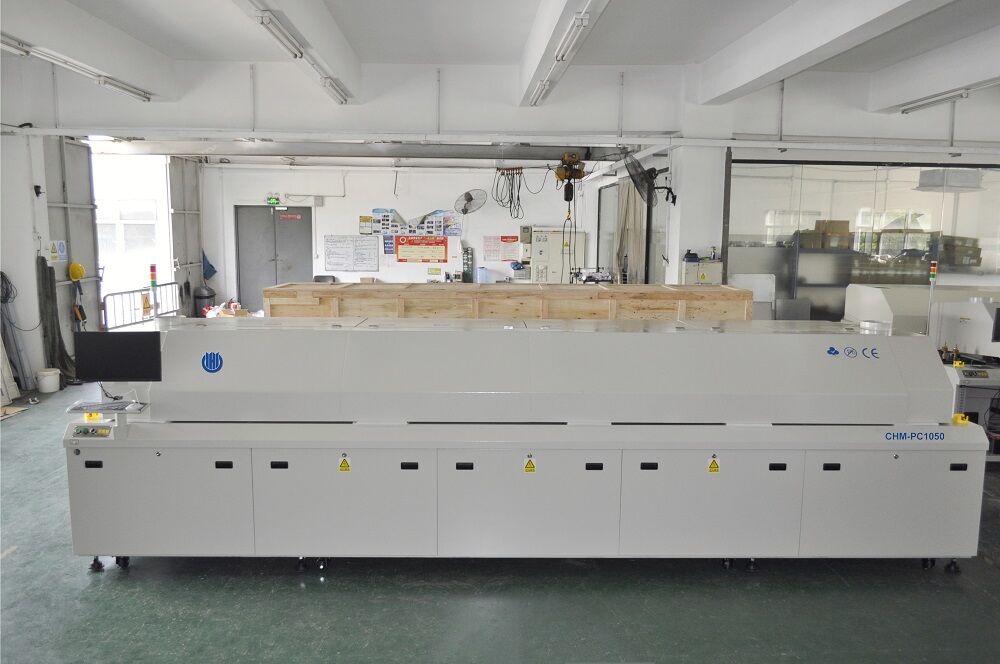

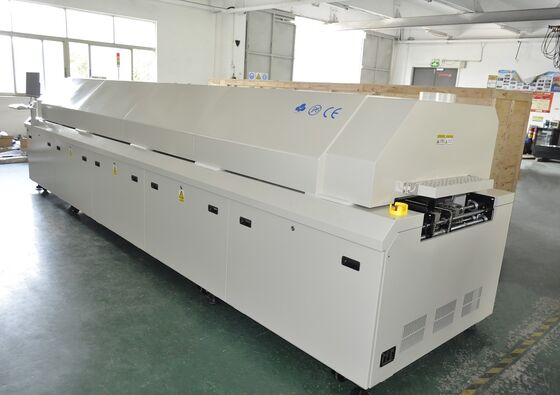

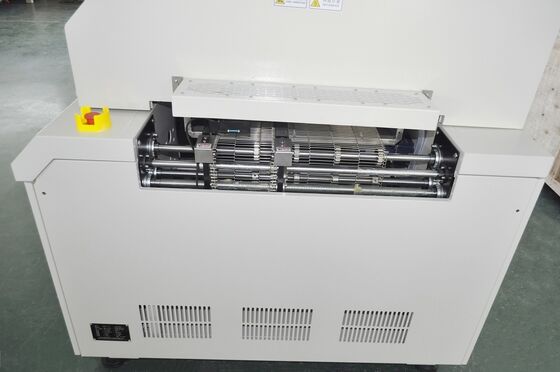

CHM-PC1050 10-zone lead-free SMT reflow oven front view CHM-PC1050 reflow oven control panel and interior view CHM-PC1050 reflow oven side view and conveyor system
Recommended Large SMT Production Line
  1. PCB loader
  2. Full-automatic solder paste printer GKG G5
  3. PCB conveyor
  4. Pick and place machine RS10 (10-head, maglev)
  5. Pick and place machine TS10 (10-head)
  6. PCB conveyor
  7. 10 temp. zones reflow oven CHM-PC1050
  8. In-line AOI ZHX-S820
  9. OK & NG PCB unloader
Warranty & Support

Warranty: The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech Support:
Kimi Mob/ WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com

Welcome to follow us on YouTube:
https://www.youtube.com/@KimiLiuCharmhigh/videos

If you want to see more information and videos, please contact us by E-mail.
We will respond to you at the first time.
