12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm

12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm
12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm 12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm 12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm

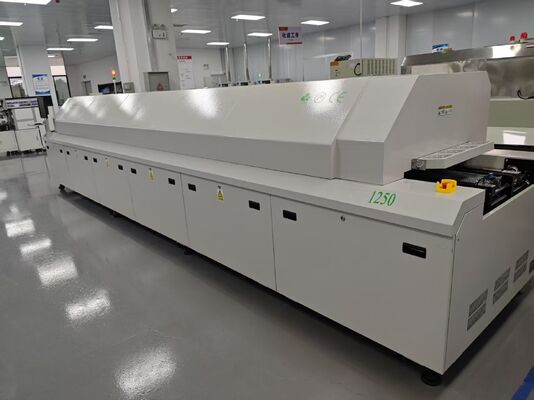

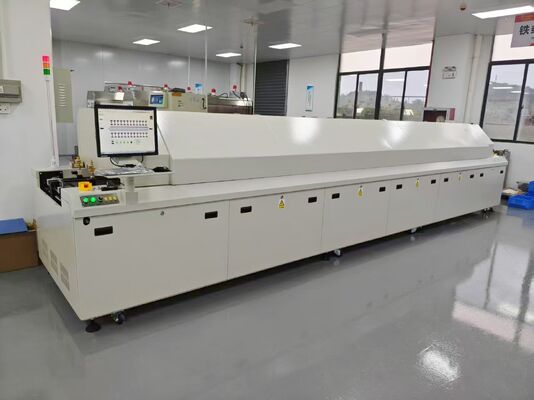

Large Image :  12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHM-PC1260
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $19500
Packaging Details: plywood case
Delivery Time: 6-8 days
Payment Terms: T/T,Western Union
Supply Ability: 50 Per month
Contact Now

12-zone Lead-free SMT Reflow Oven CHM-PC1260 Reflow Soldering 4680x600mm

Description
With PC Control: Yes, With Industrial Computer Warm-up Time: Around 15-20 Mins
Start-up Power: 82 KW (zoned Intelligent Startup: 32 KW) Cooling Mode Forced: Air Cooling
Heating Zone Quantity: Up 12/ Bottom 12 Operation Power: 8-10KW
Net Weight: 2200KG Dimensions: L 5800*1350*1470 Mm
Heating Area: 4680*600mm Conveyor Mode: Mesh+ Rail
Highlight:

12-zone lead-free SMT reflow oven

,

SMT reflow soldering oven 4680x600mm

,

CHM-PC1260 reflow oven with warranty

12-zone Lead-free SMT Reflow Oven CHM-PC1260

CHM-PC1260 Full automatic rail large reflow oven with PC control featuring 12 temperature zones (12 upper + 12 lower)

Lead-free SMT Reflow Oven for SMT soldering applications, with heating size of 3940*600mm

Technical Specifications
Model Information
Model CHM-PC1260
Heating System Parameters
Heating Zones Top 12 / Bottom 12
Heating Length 4680 mm
Cooling Zones 2
Conveyor System Parameters
Max. PCB Width 600 mm (standard); customizable on request
Conveyor Direction L → R (R → L optional)
Rail Adjust Range 50 - 380 mm (customizable on request)
Conveyor Rail Fixing Front or Rear
Conveyor Height 900 ± 20 mm
Transport System Mesh belt + rail drive
Conveyor Speed 0 - 2000 mm/min
Control System Parameters
Power Supply AC 5-wire, 3-phase, 380 V, 50/60 Hz (subject to technical agreement)
Startup Power 82 kW (zoned intelligent startup: 32 kW)
Power Consumption (Normal Operation) Approx. 8 - 10 kW
Warm-up Time Approx. 15 - 20 min
Temperature Control Range Room Temperature - 400 °C
Temperature Control Method Siemens temperature control module, closed-loop control, SSR drive
Temperature Control Precision ± 1 °C
PCB Temperature Distribution Deviation ± 2 °C
Machine Control Mode Siemens PLC + Industrial PC (industrial-grade, stable and reliable)
Trouble Alarm Temperature abnormality (over-high or over-low after reaching constant temperature)
Board Drop Alarm Optional
Physical Dimensions & Weight
Weight Approx. 2300 kg
Overall Dimensions (L * W * H) 6200 * 1350 * 1470 mm
Product Images

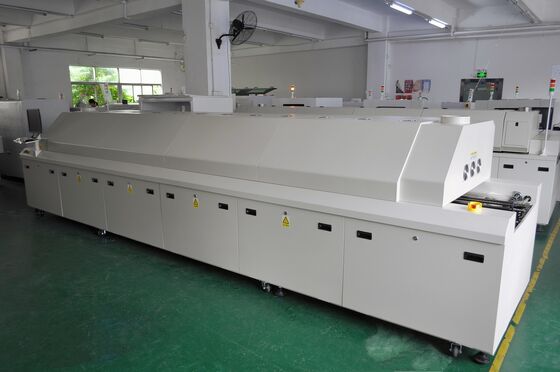

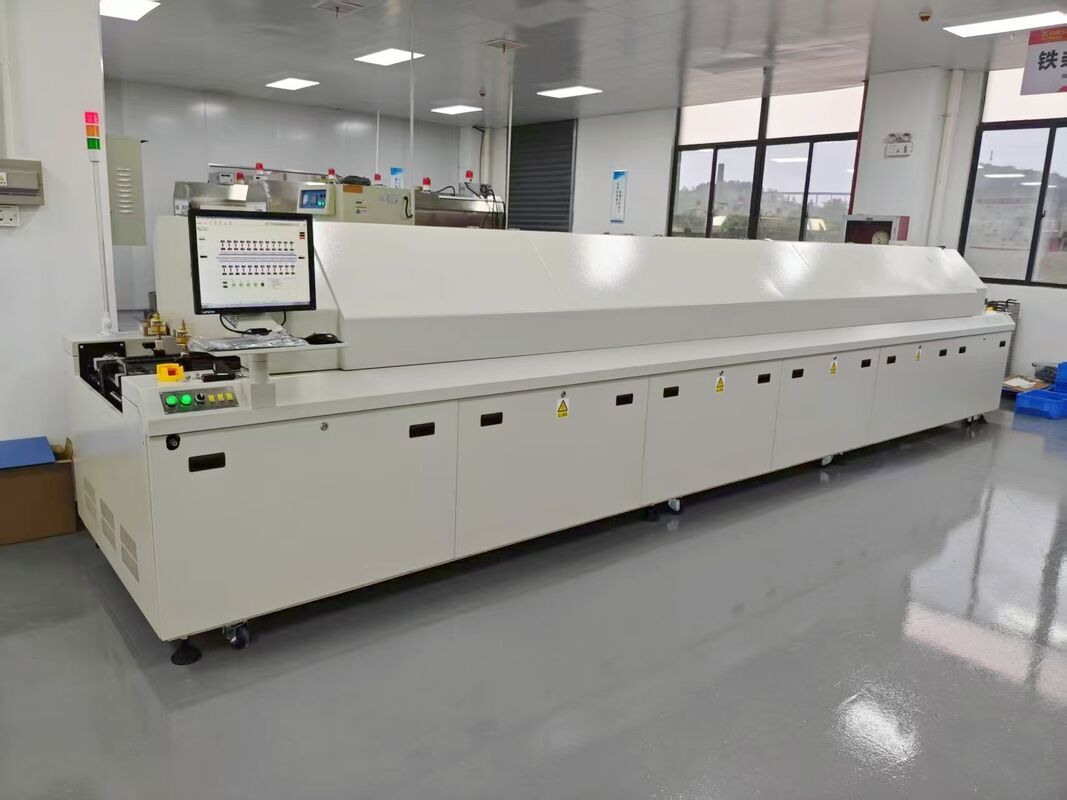

CHM-PC1260 12-zone lead-free SMT reflow oven front view CHM-PC1260 12-zone lead-free SMT reflow oven side view
Recommended Large SMT Production Line
  • PCB loader
  • Full-automatic solder paste printer GKG G5
  • PCB conveyor
  • Pick and place machine RS10 (10-head, maglev)
  • Pick and place machine TS10 (10-head)
  • PCB conveyor
  • 12 heating zones reflow oven CHM-PC1260
  • In-line AOI ZHX-S820
  • OK & NG PCB unloader
Warranty & Support

The complete machine has a warranty period of 1 year from the time of purchase with lifetime service support.

We provide reliable factory-direct spare parts supply and comprehensive technical support including:

  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
Technical Support

Kimi
Mobile/WhatsApp: +86 135 106 75756
Email: kimi@charmhigh-tech.com

YouTube Channel:
https://www.youtube.com/@KimiLiuCharmhigh/videos

For additional information and video content, please contact us by email. We respond promptly to all inquiries.
