T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation

T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation
T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation

Large Image :  T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation

Product Details:
Place of Origin: China
Brand Name: Puhui
Certification: CE
Model Number: T962C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $430
Packaging Details: wooden box
Delivery Time: 2-5 days
Payment Terms: T/T; Western Union
Supply Ability: 200 Per month

T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation

Description
Soldering Area: 400*600mm Power: 2500w
Process Cycle: 1-8 Mins Dimension: 430*370*260mm
High Light:

2500w T962C Reflow Oven

,

400*600mm Infrared Reflow Oven

,

2500w SMT Reflow Oven

New T962C with exhaust 2500w Reflow Oven 400*600mm Infrared IC Heater

BGA SMD SMT Soldering Welding Sation

110v/ 220v English Version  CE certificate Best quality

Technical parameters
Specifications:
 Model: T962C
 Effective Soldering max area: 400 x 600mm
 Rated power: 2500W
 Temperature Range: 0°C-280°C
 Process cycle: 1~8 min
 Voltage: 110V~240V
 Frequecy: 50Hz~60Hz
 Product size: 684x504x225mm
 Net weight: 25kg
 Packing weight: 27kg

Description:
The INFRARED IC HEATER T962C works automatically by micro-computer control. Can satisfy a dissimilarity SMD, BAG Soldering a request. Whole soldering process to complete automatically, easy to use, Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very Accurate and even.
 The faintness controls a technique and Can see the drawer type work bench , Make whole soldering process at you of the under surveillance automatic completed; Can soldering the most smart small part.
 It adopts a high and dependable design, make what you use gratifying and rest assured.

Features:
(1). Have big infrared soldering max area:
Soldering area to reach effectively :400x600mm, Increase the usage scope of this machine consumedly, economical investment.
(2) Many temperature wave choice for you.
Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move heating and cool off function compulsory;Whole soldering process to complete automatically, easy to use.
(3) Special heat up and temperature equalization with all design.
Output the power reaches to a 2500 W, Adoption fast infrared radiation and circulation the wind for heat,so the temperature is very Accurate and even, Whole soldering process to complete automatically for you choice temperature parameter waves.
(4). Humanized science and technology exquisite article.
Firm of external appearance, can see of operation, amity of person machine operation interface, the perfect temperature wave project, from start to eventually body science and technology now is originally;
The agile physical volume and weight, let you economize a great deal of money, the set noodles type places mode, can let you own larger space; Simple operating instructions, let you a see can use.
(5) Perfect function choice.
Return soldering, drying, heat preservation, finalize the design, fast cool off etc.can use  Can soldering the most smart small part  example CHIP,SOP,PLCC,QFP,BGA etc; Can used to the gum of the product solid turn, the circuit board is hot aging, the PCB plank maintains to wait various works.Be applicable to each kind of business enterprise,company extensively develop and the small batch quantity produce a demand.



Operating instructions
(1) The product that will process lightly puts into the even on the stage in the drawer, Close drawer, Press F1 to switch on, The automatic performance make selection of heat wave, Show current performance time,the enactment temperature and measure temperature on the LCD screen, and the automatic formation order form wave.
(2) Observed the data,wave of the window and the LCD screen manifestation before passing drawer, in the whole supervision that processed all of process and can see at you, if the request for processing wave to could not reach you can modification parameter.
(3) Process the wave is strict to press the different tin syrup different temperature to have pre-established request to the return solder , you can prepare to establish another wave according to the different need.
(4) Process process in, if need stop, can press “S” to carry on to terminate compulsory;After put the last hand, the breeze machine auto carries on cooling to the product;You can also start the breeze machine to carry on cooling compulsory.
(5) After returning solder completion, If the product existence blemish.can solder again, Can also move the start heating to carry on returning to solder. This machine establishes this function.

Packing List:
1 x Infrared IC Heater T-962C
1 x Power Cable
1 x Fuse(110V: 10 A; 220V: 8 A)
1 x User Manual

Features:
1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
2. This machine is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.
3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.
4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.
6. Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay non-contact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.
7. Transmission system adopt imported frequency conversion motor, PID closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.
8. Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ±10mm/min.
9. Independent cooling zone, to ensure the PCB board of low temperature when the required.
10. Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.
11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960e to be easily bench positioned, transported or stored.

Pictures as follows:

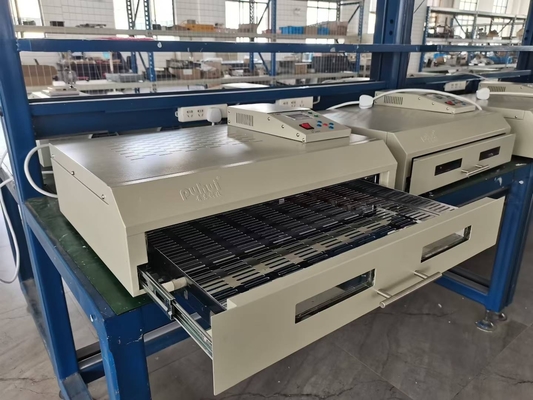

T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation 0

New type with exhasut diameter 110mm

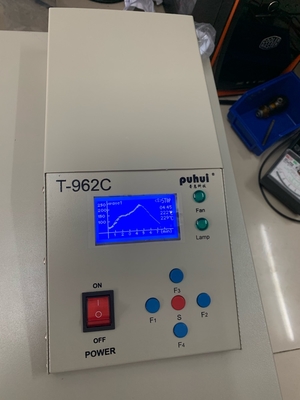

T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation 1

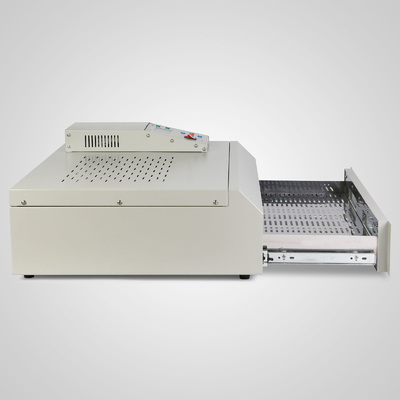

T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation 2

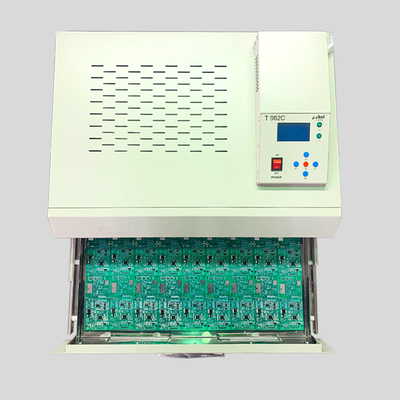

T962C With Exhaust 2500w SMT Reflow Oven 400*600mm Infrared IC Heater BGA SMD SMT Heating Sation 3



Very high quality and Good Feedback.

Recommend to all of you!


Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one

after-sale service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.


Each machine 100% test well before ship out.
