4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly

Description
Feeder: 60pcs Slots (8mm) Placement Head: 4pcs
Nozzles: 4 Types Of Nozzle (Juki) 503 504 505 506 Speed: 4000cph With Vision On
Accuracy: 0.025mm X,Y,Z Axis Travel: 600*630*20mm
Max PCB Area: 10*10mm ~ 400*270mm Net Weight: 165kg
High Light:

4 Heads Desktop Pick and Place Machine

,

60 Feeders Desktop Pick and Place Machine

,

CHMT560P4 PCB Assembly Machine

CHM-T560P4 Introduction
Desktop SMT pick and place machine Charmhigh CHM-T560P4, 220v/110v
4 heads 60 feeders, for PCB assembly line


CHM-T560P4 main features
1. Model number: CHM-T560P4
2. Brand: Charmhigh
3. Main configuration: Desktop type + 4 Heads 60 feeders + built-in PC + Embedded Linux system + closed-loop control motor with encoder + 2 cameras + linear rail + auto calibrate PCB + touch screen
4. Feeder: 2 options: Yamaha pneumatic feeder & Electric feeder (feeders purchase separately)
5. PCB area: 400*270mm
6. Component: 0402-5050,LED, SOT, SOP, QFN, BGA... etc.
7. Dimension: 1180mm(L)*870mm(W)*600mm(H)mm; AC220V/110V (50/60Hz)
8. Lead time: 2-3 working days
9. Delivery: by DHL or TNT / by air / by sea / pick up from our factory directly / send to China warehouse
10. Payment method: wire transfer (T/T); PayPal; W/U
11. Packing: plywood box



CHM-T560P4 description

This CHMT560P4 is an updated desktop pick and place machine which work with Yamaha feeders.

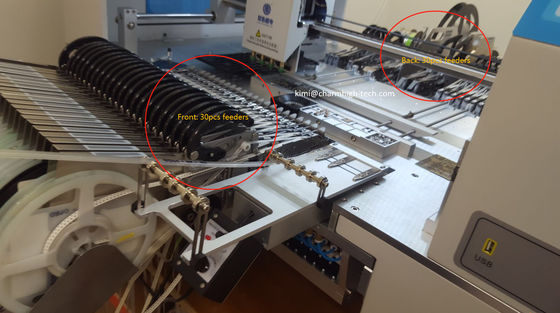

It has 4 heads with 60pcs feeder slots, front side 30pcs plus back side 30pcs, for small smt production is your good helper!

The operation system is industry level embedded Linux system, the main board of machine was researched by ourselves, which is more reliable than windows system, and life time is much longer.

CHMT560P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, LED, SOT, SOP, QFN, BGA, Diode, Transistor...etc, which can meet more customers' demand. Very good for small batch production or prototyping or education.

It has double vision cameras, which can auto calibrate the PCB before running, auto correction pick position and angle.



CHM-T560P4 Parameters

Model CHM-T560P4
XYZ Axis travel

600mm(X)*630mm(Y)*20mm(Z)

Max height component:10mm

PCB max size 400mm(L)*270mm(W)
Support components 0402-5050,LED, SOT, SOP, QFN,BGA etc.
Mounting speed
  • Without vision:5000cph
  • With Vision:4000cph
Precision ±0.025mm
Placement head 4 heads
Feeding system

Support max 60pcs 8mm tape reels

*Feeder option: (Yamaha universal type)

1.electric feeder: 8mm (for 0402 etc)

2.pneumatic feeder: 8,12,16,24mm

3.vibration feeder(3 tubes/ 5 tubes)

  • 11pcs front bulk material
  • Support IC tray
Vision detection

Double cameras (up & down)

Up-looking camera max recognize range of component: 22*22mm

Motor control
  • -XY Axis stepper motor with encoder with closed-loop control
  • -Flexible S deceleration
  • -Z Axis reset detection
Components leakage detection Vacuum detection / vision detection
Main board High-reliability industry motherboard
Touch Screen

Build-in 7 inches industry screen, no need external monitor or PC;

(support cold plug-in USB mouse)

Operation system Embedded Linux system
External air source 0.5 MPa
Power supply AC220V 50Hz / AC110V 60Hz
Dimension 1180mm(L)*870mm(W)*600mm(H)
Power 250W
Net weight 165Kg


CHM-T560P4 Advantages:

1. Convenient software, Embedded Linux System of the machine, stable industry main board, independent operation, no need external computer, operation easier and more convenient, learn fast.
2. In-build touch screen, no need external monitor, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two vision cameras, correct the position of each components, you can view the vision image from screen for every components.(max component size 22*22mm)
4. It has flexible PCB clamping fixture, suitable for different size of PCB, CHM-T560P4 max support PCB 400mm(L)*270mm(W).
5. It supported custom IC tray, IC tray can be fixed on machine table. Software max allow 20pcs tray.
6. Four mounting heads with 4pcs Juki Nozzles, Juki nozzle inside magnet, so it can be removed by finger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
7. Work with Yamaha standard pneumatic feeders(8mm/12mm/16mm/24mm/vibration feeder) and Electronic feeders(8mm/12mm/16mm).
8. Z axis detection, placement heads can auto back to origin to prevent nozzles break.

9. Max height component support 10mm.
10. Closed-loop control, X,Y Axis with encoder, not out of step.
11. PCB calibrated by two components position, then rest components will be calibrated automatically.
12. Auto calibrate mark 2 points, it will be auto calibration before every running, make sure every PCB mounting precisely.
13. With vacuum detection, with automatic feeding, if one component suck crooked, it will automatically throw it to deposit area, then pick a new one to mount again.
14. With vision detection, camera will auto correction component angle and place on PCB board right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop, after supply material, then continue working, no need to start over again.

15. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
16. Support panelized boards.
17. If you don't have PCB file, you can create a new work file to program in machine directly.

18. Support single step.

19. Support cut tapes/ bulk material/ tube material.



Standard Accessories for CHMT560P4:
1) Pick and Place Machine CHMT560P4: 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Grease 1
6) Hex wrench 6
7) Tweezers 1
8) Brush 1
9) Additional belt set 1
10) Pen for touch screen 1
11) Fixture for IC tray 4



100% Real photos:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 0

X Y axis with square rail, higher accuracy:
4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 1



Support IC tray, you can fixed IC tray on the machine table:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 2



Vision system with top and buttom two cameras, machine has with 4 heads:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 3



USB Mouse and touch screen both supported, no need external monitor or computer, room saved, very easy operation:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 4



X Y axis motor with encoder, closed-loop control, not out of steps:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 5



Juki nozzles: (Different types 503-506)

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 6



Feeders purchase separately, option :

1. 8mm electric feeder (for 0402 0603 etc);

2. 8*4mm/ 12mm/ 16mm/ 24mm pneumatic feeder;

3. vibration feeder (for tube material);

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 7

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 8

PCB assembly line recommendation:

Stencil printer 3040 + CHMT560P4 P&P machine + T961 reflow oven

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 9

Customer samples:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 10

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 11

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 12



Customer feedback:

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 13

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 14

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 15

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 164 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 17

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 18

4 Heads 60 Feeders CHMT560P4 Yamaha Feeder Desktop Pick And Place Machine PCB Assembly 19



Why choose Charmhigh?

1.Professional design and room saved.

2.User friendly operation, no need professional SMT engineer, entry-level device

3.One machine - Integrated operation, no need extra pump or PC or any supporting facility.

4.Cost efficient, reduce expense to own a professional full automatic SMT production line.
5. It is very convenient to change machine replacement, easy to fix by self.
6.International express with door to door service, 6-8 working days delivery.

7.Especially for laboratory research and development, to protect your own design and patent.

8.One machine equal to 5 soldering staff, much higher efficient than manual work, easy manage and cost-saved. Good for small batch production.
9.Charmhigh Is factory supply, all of our machine parts are researched and manufacturing by ourselves. After-service spare parts never stop.

10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since, first p&p released in 2011. All the software researched by ourselves, provided good after-sell service.



Please note:

The pick and place machine is complete set with all accessories included in the package, machine ready to use!

The only thing you need to prepare is an external air compressor with 8mm outer diameter pipe (supplying air for pneumatic feeders), inserting the pipe on the backside of machine.
Please purchase this machine with confidence.

Enjoy with your pick and place machine!



Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.



We provide one to one after-sale service. Each machine 100% tested well before ship out.
