High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine

Description
Heads: 4 Placement Heads With 2 Vision Cameras PCB Size: 10mm*10mm~240mm*1200mm
XYZ Travel: 535mm(X)* 380mm(Y)*15mm Speed: Without Vision:11000cph; With Vision:5500cph
Feeder: Support 8pcs YAMAHA CL Feeder Axis Motor: Closed-loop Control
Component: 1.2m LED Strip,0402~5050,SOP,QFN Etc. System: Embedded Linux System
Table: Moving Magnetic Table, PCB 1200*240mm Dimension: 2050mm(L)×600mm(W)×800mm(H)
High Light:

4 Heads LED Pick And Place Machine

,

1.2m LED Strip Small SMT Machine

,

High Speed Small SMT Machine

 Charmhigh CHMT510LP4 LED Pick and place Machine, 4 Heads 8 Feeders, 1.2m LED strip,

Advanced SMT pick and place machine, for small LED batch production



1. Model number: CHMT510LP4 (4 Heads 8 feeders + square rail linear guide + 1.2m LED strip moving table)
2. PCB area: 10mm*10mm~240mm*1200mm
3. Closed-loop control, Embedded Linux system, industry main board
4. Component: 0402-5050, SOP, QFN...1.2m LED strip etc.
5. Lead time: 1-2 days (in stock).
6. Delivery: by Air / by Sea / by DHL...You can choose by yourself. Or arrange pick up from our factory directly.
7. Payment method: T/T

8. Packing: wooden box



CHMT510LP4 (LED Model) Exhibition working video (1.2m LED strip):
www.youtube.com/watch?v=GBAclhAfaUs



Description:

Charmhigh CHMT510LP4 is an LED desinged pick and place machine with 1.2M moving table, it has 4 heads with 8pcs Yamaha feeders supported. It not only support all kinds of LED, but also 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor ... it has top and down two cameras vision system.
Yamaha pneumatic feeder and Juki Nozzle are mature products, they are accept by customers in market, very stable and convenient! This machine for small smt production is your good helper! It is very suitable for small and medium company and factories!

The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. Please purcahse it with confidence.



Charmhigh CHM-510LP4 Technical Parameters:

Parameters
Model CHMT510LP4
XYZ Axis travel 528mm(X)×380mm(Y)×15mm(Z)
PCB max size 10*10mm - 240mm(L)×1200mm(W)
Support components 1.2 LED strip, 0402-5050, SOP, QFN, etc.
Mounting speed
  • Without vision:11000cph
  • With Vision:5500cph
Precision ±0.025mm
Placement head 4 heads
Feeding system Support max 8pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)
Vision detection Double camera (up & down) support max size of IC:22*22mm
Motor control
  • XY Axis stepper motor with encoder closed-loop control
  • Flexible S deceleration
  • Z Axis reset detection
Components leakage detection Vacuum and visual detection
Main board High-reliability industry motherboard
Touch Screen 7 inches industry screen, externel mouse control supported
Operation system Embedded Linux system
External air source 0.5MPa
Power supply AC220V 50Hz / AC110V 60Hz
Demension 2050mm(L)×600mm(W)×800mm(H)
Power 250W
Net weight 160Kg

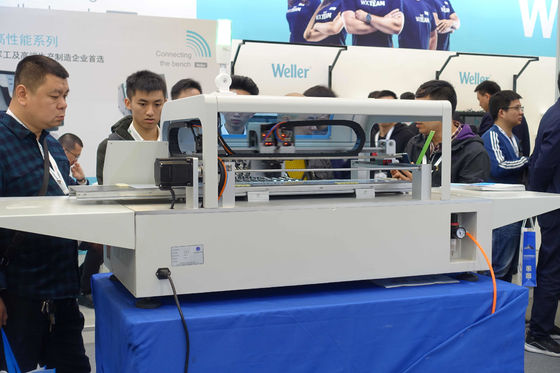

100% Real pictures:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 0

Now the X,Y Axis and moving table all updated to linear guide, more firm and faster and better precision:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 1



4 heads with JUKI Nozzles:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 2



Moving table:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 3



Best quality square rails:



High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 4



How to fix the PCB:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 5



Samples view:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 6

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 7



Customer feedback:

High Speed Desktop 4 Heads LED Pick And Place Machine CHMT510LP4 1.2m LED Strip Small SMT Machine 8



Kindly note:
The pick and place machine is complete set with all accessories included in the package, ready to use!
You only need to get an external air compressor(supplying air for feeders) before running.
Good after-sale tech support, please purchase it with confidence.
Enjoy with your pick and place machine!


Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.


We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
