Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN
Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN

Large Image :  Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT36VA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 200 Per month

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN

Description
Feeder: 1- 29pcs Place Head: 2 Heads
Speed: Vision On :2800cph; Vision Off: 3500cph Accuracy: 0.025mm
Need External PC: Yes, With Windows7, Windows10 PCB Size: 10*10mm~355mm(L)*355mm(W)
XYZ Axis Travel: 400mm(X)*460mm(Y)*15mm(Z) (max Height Component 5mm) Support Software: Altium Designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc
High Light:

CHMT36VA Small SMT Machine

,

2 Cameras Surface Mount Technology Machine

,

Surface Mount Pick And Place Machine

Best seller + 100% High feedback + Easy to use:  CHMT36VA SMT Pick and Place Machine

Double vision cameras​ Place 0402, QFN...   CE certificate, English version, 220v 110v



Hot sale in Aliexpress store:



 www.aliexpress.com/store/product/New-Popular-model-CHMT36VA-Pick-and-Place-Machine-Vision-System-Externel-PC-Benchtop-chm-t36va/210206_32667844951.html?spm=2114.12010612.0.0.3e80b94eTvHHQo



PayPal also accepted, our PayPal account is: sales@charmhigh-tech.com
Paypal link: paypal.me/Charmhigh


CHMT36VA working video:

CHMT36VA working video from Italy:
www.youtube.com/watch?v=FJoGJK79luU

Charmhigh CHMT36VA Working with 0402, 0603,0805:
www.youtube.com/watch?v=zs5b8tm1hyk

CHMT36VA Placing LED - production video:
www.youtube.com/watch?v=jYD_1U8pUm0

Specifications:

Model CHM-T36VA
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 420*460mm
Z axis moving range 15mm
Placement heads 2pcs
Feeders

8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs,
Front IC tray=14pcs, user-defined IC tray

Vision system Dual cameras(up & down cameras)
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, it prevent nozzles breaking
Pull pin self-return Yes
Leakage of material detection method Vacuum detection, vision detection
Mounting speed 4000cph (vision off); 2800cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050,SOP,QFN,(tape width: 8MM,12MM,16MM,24MM)
Machine dimension L 960mm * W 705mm * H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC Yes (software compatible with windows7,10)
Voltage 220V (110V),50Hz/60Hz
Net weight 65kg
Gross weight 75kg / 108*80*53cm


Description:
CHMT36VA is an economical vision pick and place machine which need external PC operation (windows system). This is reliable, small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks. High precision and easy operation software. You just need to prepare a computer which has USB port.


Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

Detail Real pictures: (100% Real)

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 0

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 1
Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 2

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 3

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 4

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 5

4pcs high precision Juki Nozzles:  503 504 505 506
Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 6

Placing samples:

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 7

Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 8

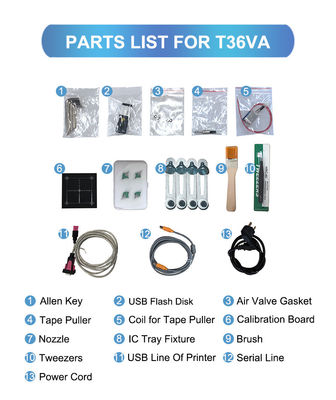

Tools kit
Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 9
Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 10



Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.


Tech support:
Kimi Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com



Welcome to follow us in YouTube: www.youtube.com/kimiLiuCharmhigh



If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.



Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 11
Charmhigh CHMT36VA PC Control SMT Pick And Place Machine , 2 Cameras 0402 SOP QFN 12
