CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder

CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder
CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder

Large Image :  CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder

Product Details:

Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT36VA

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $3100
Packaging Details: Packed in 5cm EPE foam firstly, and then reinforced with wooden case for outer packing
Delivery Time: 2-3 working days after received your payment
Payment Terms: T/T , Western Union, MoneyGram
Supply Ability: 200pcs per month
Detailed Product Description
Positioning: Double Vision Camera Positioning Size Of Machine: L 855mm*W 535mm*H 335mm
PCB Area: 10mm*10mm~355mm*355mm Working Precision: ±0.025mm
Mounting Speed: 2800cph (vision On) ; 4000cph (vision Off)
High Light:

CHMT36VA Table Top Pick And Place Machine

,

Table Top Smt Placement Equipment

,

CHMT36VA SMD Pick And Place Machine

Hot sale!

29 Feeders 2 heads Vision Camera CHMT36VA + External PC,

Desktop SMT Pick and Place Machine, small batch production, prototyping



 SMD Surface Mounting English Version 110v 220V CE passed

Shipping by TNT..DHL.. Or you can pick up from our factory!





Working video:



 CHMT36VA working video from Italy:
www.youtube.com/watch?v=FJoGJK79luU



CHMT36VA Placing LED - production video:
www.youtube.com/watch?v=jYD_1U8pUm0



Catalogue download from here: CHMT36VA.pdf





Description:



CHMT36VA is a vision-based desktop pick and place machine which need connect external PC with windows 7 system. It is very reliable with low-cost economic model, this small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks. High precision and easy operation software. It compatible all different kinds of components 0402-5050,SOP, QFN, TQFP... very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production, you just need to prepare a computer which has USB port.



Main Parameter



Model CHM-T36VA
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 420*460mm
Z axis moving range 15mm
Placement heads 2pcs
Feeders

8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs,

Front IC tray=14pcs, user-defined IC tray

Vision system Dual cameras(up & down cameras)
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, prevent nozzles breaking
Pull pin self-return Yes
Leakage of material detection method Vacuum detection, vision detection
Mounting speed 4000cph (vision off); 2800cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050,SOP,QFN,(tape width: 8MM,12MM,16MM,24MM)
Machine dimension L 960mm * W 705mm * H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC Yes (software compatible with windows7)
Voltage 220V (110V),50Hz
Compatible software Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS…etc
Gross weight 70kg / 107*78*50cm / 0.41m³





Applications industry:

Household appliances industry, Auto electronics industry, Power industry, LED industry, security, instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

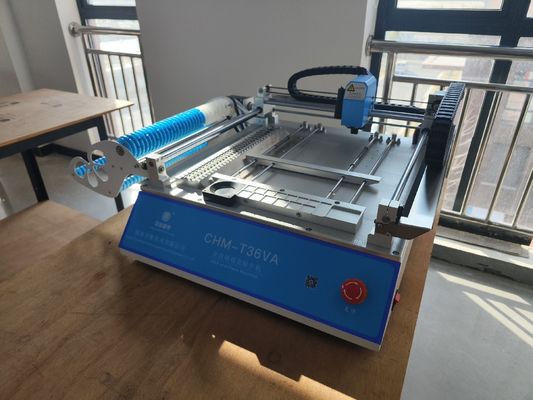

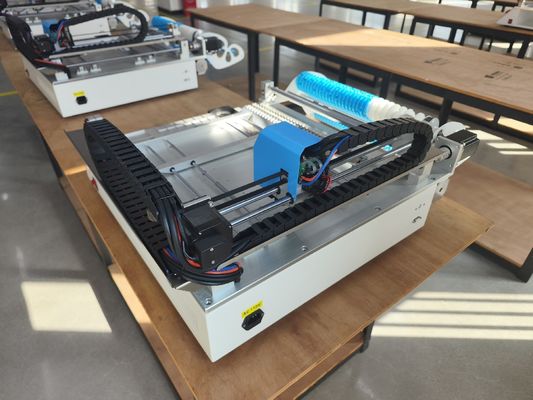

CHMT36VA With vibration feeder installed:

CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder 0

CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder 1

CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder 2

CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder 3

CHMT36VA SMD Pick And Place Machine , Table Top Smt Placement Equipment Vibration Feeder 4

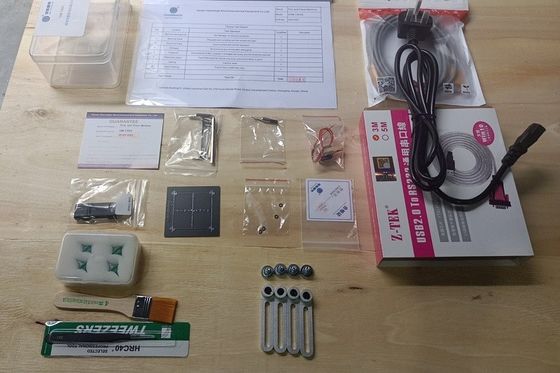

Standard Accessories for CHMT36VA:



1) SMT Desktop Pick and Place Machine CHMT36VA*1

2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Pull pins: 2
6) Coil for pull pin:1
7) Grease: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1





Warranty:


The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% test well before ship out.
Tech support:
Kimi  Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com
